Four Effects of Water Environment Evolution in Early Period (2003-2012) after Impoundment of the Three Gorges Reservoir
-
摘要: 自2003年三峡水库首次蓄水至2012年工程竣工验收启动，针对三峡水库蓄水运行初期的水环境演变研究较多，但整体性、综合性科学认识仍然缺乏.基于水环境多要素跟踪观测研究，综合采用现场观测、室内试验、数理统计、模型模拟、同位素及保守离子示踪等技术手段，系统剖析了特大型、高变幅水位水库运行背景下水动力变异及其所伴生的水环境演变特征，从水动力、水质、水生态、污染物输移角度，提出了三峡水库水环境演变过程中的“四大效应”，主要包括干支流水动力特性的“分化”效应、上游-干流-支流水质演变“同步”效应、水动力变化对藻类水华暴发的“胁迫”效应、水动力变化对同等负荷条件下污染源危害的“迭加”效应等.考虑到大型水库生态系统的演替和稳定是一个长期过程，建议继续强化长江上游梯级水电开发影响下的三峡水库水环境演变跟踪调查研究，适时开展三峡工程对库区水环境影响的后评估.Abstract: From the first impoundment of the Three Gorge Reservoir (TGR) in 2003 to the completion of the construction project in 2012, the water environment evolution in the initial operation period of the TGR still lacks overall and comprehensive scientific understanding although there are many related studies. Based on multi-parameter tracking observation of the water environment, and through field observations, laboratory experiments, mathematical statistics, model simulation, isotope analysis and conservative ion tracing, the hydrodynamic variation and the accompanying water environment evolution characteristics (characterized by high water level variation) were systematically analyzed. From the perspective of hydrodynamics, water quality, water ecology and pollutant transport, the four major effects of the water environment evolution are proposed, namely the differentiation effect of hydrodynamic characteristics of mainstream and tributaries, the synchronization effect of the upstream-mainstream-tributary water environment evolution, the stress effect of hydrodynamic changes on algae blooms, and the additive effect of hydrodynamic changes on pollution source hazards under the same load conditions. Considering that the succession and stability of the large-scale reservoir ecosystem is a long-term process, taking the unpredictable impact of upstream cascade hydropower development in the upper reaches of the Yangtze River into account, it is recommended to continue the follow-up investigation and research of the TGR water environment evolution process. In addition, it is also necessary to carry out the post assessment of the impact of the Three Gorges Project on the water environment.
-

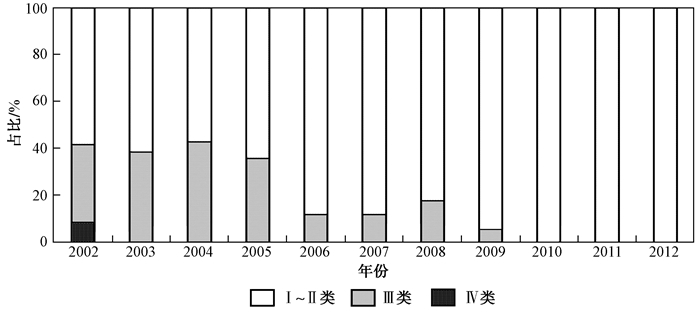

图 6 1998—2012年三峡库区干流水质类别占比
注：水质类别评价参照GB 3838—2002《地表水环境质量标准》.下同.
Figure 6. Proportion of water quality categories in the main stream of the Three Gorges Reservoir area from 1998 to 2012

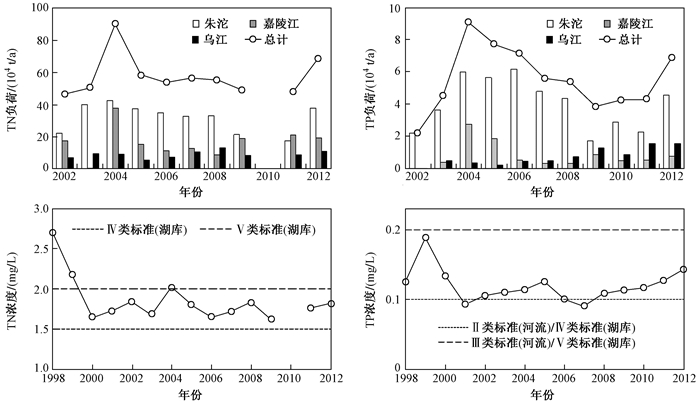

图 7 三峡水库干流氮磷浓度变化与上游入库氮磷通量变化对比
Figure 7. The change of nitrogen and phosphorus concentration in the main stream of the Three Gorges Reservoir and its comparison with the change of nitrogen and phosphorus flux from the upstream inflow

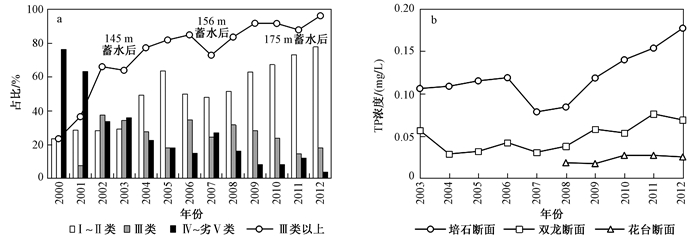

图 8 三峡水库支流水质及大宁河TP浓度的年际变化
Figure 8. Annual variation of the water quality of tributaries of the Three Gorges Reservoir and total phosphorus concentration in Daning River

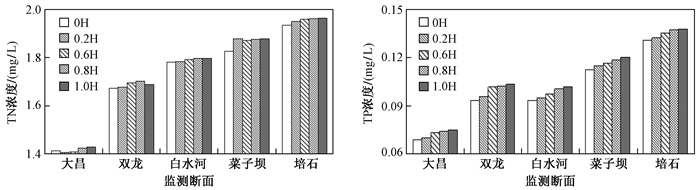

图 9 三峡水库支流回水区及毗邻干流TN、TP浓度沿程分布(以大宁河为例)
注：0H表示水体表层，1.0H表示水体底层(水深)，0.2H表示水深为0.2H处，其他以此类推；大昌为大宁河上游断面，白水河为回水中段断面，菜子坝为大宁河入江口断面，培石为大宁河汇入后长江干流断面.
Figure 9. TN and TP concentration distribution along the backwater area of Three Gorges Reservoir tributary and adjacent main stream (taking Daning River as an example)
表 1 典型支流香溪河营养盐来源解析结果(同位素及保守离子示踪法)
Table 1. Source analysis of nutrients in Xiangxi River, a typical tributary (based on isotope and conservative ion tracer method)
项目 TN NO3-N NH4-N TP PO4-P 上游径流 数值/t 3.00 2.42 0.55 0.57 0.14 输入量 比例/% 5.17 4.95 7.13 13.87 15.63 长江干流 数值/t 54.97 46.49 7.12 3.53 0.74 倒灌输入量 比例/% 94.83 95.05 92.87 86.13 84.37
下载: 导出CSV
-
[1] 王丽婧.三峡水库水生态安全评估研究[D].北京: 北京师范大学, 2011. http://d.wanfangdata.com.cn/Thesis/Y1984237 [2] 王丽婧, 翟羽佳, 郑丙辉, 等.三峡库区及其上游流域水污染防治规划[J].环境科学研究, 2012, 25(12):1370-1377. http://www.hjkxyj.org.cn/hjkxyj/ch/reader/view_abstract.aspx?file_no=20121209&flag=1WANG Lijing, ZHAI Yujia, ZHENG Binghui, et al.Study on water pollution prevention planning for the Three Gorges Reservoir area and its upper reaches[J]. Research of Environmental Sciences, 2012, 25(12):1370-1377. http://www.hjkxyj.org.cn/hjkxyj/ch/reader/view_abstract.aspx?file_no=20121209&flag=1 [3] 重庆市统计局.重庆统计年鉴2018[M].北京:中国统计出版社, 2018. [4] 湖北省统计局.湖北统计年鉴2018[M].北京:中国统计出版社, 2018. [5] 宜昌市统计局.宜昌统计年鉴2018[M].北京:中国统计出版社, 2018. [6] 恩施州统计局.2017年巴东县国民经济和社会发展统计公报[R].恩施: 恩施州统计局, 2018. [7] 夷陵区统计局.2017年夷陵区国民经济和社会发展统计公报[R].夷陵: 夷陵区统计局, 2018. [8] 中国环境科学研究院.库区水质影响调查专题报告[R].北京: 中国环境科学研究院, 2014. [9] 王丽平, 郑丙辉, 张佳磊, 等.三峡水库蓄水后对支流大宁河富营养化特征及水动力的影响[J].湖泊科学, 2012, 24(2):232-237. doi: 10.3969/j.issn.1003-5427.2012.02.010WANG Liping, ZHENG Binghui, ZHANG Jialei, et al.Effects on euthrophication and hydrodynamics of Daning River after impoundment of Three Gorges Reservoir[J]. Journal of Lake Sciences, 2012, 24(2):232-237. doi: 10.3969/j.issn.1003-5427.2012.02.010 [10] HOLBACH A, WANG L, CHEN H, et al.Water mass interaction in the confluence zone of the Daning River and the Yangtze River:a driving force for algal growth in the Three Gorges Reservoir[J]. Environmental Science and Pollution Research, 2013, 20:7027-7037. doi: 10.1007/s11356-012-1373-3 [11] 胡念三, 刘德富, 纪道斌, 等.三峡水库干流倒灌对支流库湾营养盐分布的影响[J].环境科学与技术, 2012, 35(10):12-17. doi: 10.3969/j.issn.1003-6504.2012.10.003HU Niansan, LIU Defu, JI Daobin, et al.Effect of backwater flow from mainstream on nutrients distribution of tributaries in Three Gorges Reservoir[J]. Environmental Science & Technology (China), 2012, 35(10):12-17. doi: 10.3969/j.issn.1003-6504.2012.10.003 [12] 张远, 郑丙辉, 刘鸿亮, 等.三峡水库蓄水后氮、磷营养盐的特征分析[J].水资源保护, 2005, 21(6):23-26. doi: 10.3969/j.issn.1004-6933.2005.06.006ZHANG Yuan, ZHENG Binghui, LIU Hongliang, et al.Characters of nitrogen and phosphorus of the Three Gorges Reservoir after impounding[J]. Water Resources Protection, 2005, 21(6):23-26. doi: 10.3969/j.issn.1004-6933.2005.06.006 [13] 郑丙辉, 曹承进, 秦延文, 等.三峡水库主要入库河流氮营养盐特征及来源分析[J].环境科学, 2008, 29(1):1-6. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hjkx200801001ZHENG Binghui, CAO Chengjin, QIN Yanwen, et al.Analysis of nitrogen distribution characters and their sources of the major input rivers of Three Gorges Reservoir[J]. Environmental Science, 2008, 29(1):1-6. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hjkx200801001 [14] 郑丙辉, 曹承进, 张佳磊, 等.三峡水库支流大宁河水华特征研究[J].环境科学, 2009, 30(11):3218-3226. doi: 10.3321/j.issn:0250-3301.2009.11.016ZHENG Binghui, CAO Chengjin, ZHANG Jialei, et al.Analysis of algal blooms in Daning River of Three Gorges Reservoir[J]. Environmental Science, 2009, 30(11):3218-3226. doi: 10.3321/j.issn:0250-3301.2009.11.016 [15] 张佳磊, 郑丙辉, 刘录三, 等.三峡水库试验性蓄水前后大宁河富营养化状态比较[J].环境科学, 2012, 33(10):3382-3389. http://d.old.wanfangdata.com.cn/Periodical/hjkx201210014ZHANG Jialei, ZHENG Binghui, LIU Lusan, et al.Comparison of trophic status analysis of the Daning River within the Three Gorges Reservoir before and after experimental impoundment[J]. Environmental Science, 2012, 33(10):3382-3389. http://d.old.wanfangdata.com.cn/Periodical/hjkx201210014 [16] ZHANG J L, WANG L J, ZHENG B H, et al.Eutrophication status of the Daning River within the Three Gorges Reservoir and its controlling factors before and after experimental impoundment[J]. Environmental Earth Sciences, 2016, 75(15):1-11. [17] 曹承进, 秦延文, 郑丙辉, 等.三峡水库主要入库河流磷营养盐特征及其来源分析[J].环境科学, 2008, 29(2):2310-2315. http://d.old.wanfangdata.com.cn/Periodical/hjkx200802007CAO Chengjin, QIN Yanwen, ZHENG Binghui, et al.Analysis of phosphorus distribution characters and their sources of the major input rivers of Three Gorges Reservoir[J]. Environmental Science, 2008, 29(2):2310-2315. http://d.old.wanfangdata.com.cn/Periodical/hjkx200802007 [18] 秦延文, 马迎群, 王丽婧, 等.长江流域总磷污染:分布特征·来源解析·控制对策[J].环境科学研究, 2018, 31(1):9-14. http://www.hjkxyj.org.cn/hjkxyj/ch/reader/view_abstract.aspx?file_no=20180102&flag=1QIN Yanwen, MA Yingqun, WANG Lijing, et al.Pollution of the total phosphorus in the Yangtz River Basin:distribution characteristics, source and control strategy[J]. Research of Environmental Sciences, 2018, 31(1):9-14. http://www.hjkxyj.org.cn/hjkxyj/ch/reader/view_abstract.aspx?file_no=20180102&flag=1 [19] 李哲, 方芳, 郭劲松, 等.三峡小江回水区段2007年春季水华与营养盐特征[J].湖泊科学, 2009, 21(1):36-44. doi: 10.3321/j.issn:1003-5427.2009.01.005LI Zhe, FANG Fang, GUO Jinsong, et al.Spring algal bloom and nutrients characteristics in Xiangxi River backwater area, Three Gorge Reservoir, 2007[J]. Journal of Lake Sciences, 2009, 21(1):36-44. doi: 10.3321/j.issn:1003-5427.2009.01.005 [20] 纪道斌, 刘德富, 杨正健, 等.三峡水库香溪河库湾水动力特性分析[J].中国科学:物理学力学天文学, 2010, 40(1):101-112. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgkx-cg201001013JI Daobin, LIU Defu, YANG Zhengjian, et al.Hydrodynamic characteristics of Xiangxi Bay in Three Gorges Reservoir[J]. Scientia Sinica:Pysica, Mechanica and Astronomica, 2010, 40(1):101-112. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgkx-cg201001013 [21] 纪道斌, 刘德富, 杨正健, 等.汛末蓄水期香溪河库湾倒灌异重流现象及其对水华的影响[J].水利学报, 2010, 41(6):691-696. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=slxb201006010JI Daobin, LIU Defu, YANG Zhengjian, et al.The phenomenon of reverse flow and its effect on water bloom in Xiangxi River Reservoir Bay during the storage period[J]. Journal of Hydraulic Engineering, 2010, 41(6):691-696. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=slxb201006010 [22] 刘德富, 杨正健, 纪道斌, 等.三峡水库支流水华机理及其调控技术研究进展[J].水利学报, 2016, 47(3):443-454. http://d.old.wanfangdata.com.cn/Periodical/slxb201603019LIU Defu, YANG Zhengjian, JI Daobin, et al.Research progress on mechanism and control technology of branch water bloom in Three Gorges Reservoir[J]. Journal of Hydraulic Engineering, 2016, 47(3):443-454. http://d.old.wanfangdata.com.cn/Periodical/slxb201603019 [23] 杨正健, 俞焰, 陈钊, 等.三峡水库支流库湾水体富营养化及水华机理研究进展[J].武汉大学学报(工学版), 2017, 50(4):507-516. http://d.old.wanfangdata.com.cn/Periodical/whsldldxxb201704005YANG Zhengjian, YU Yan, CHEN Zhao, et al.Mechanism of eutrophication and phytoplankton blooms in Three Gorges Reservoir, China:a research review[J]. Engineering Journal of Wuhan University, 2017, 50(4):507-516. http://d.old.wanfangdata.com.cn/Periodical/whsldldxxb201704005 [24] 杨正健.分层异重流背景下三峡水库典型支流水华生消机理及其调控[D].武汉: 武汉大学, 2014. http://cdmd.cnki.com.cn/Article/CDMD-10486-1014249879.htm [25] 赵云云.三峡水库主库区干流对大宁河回水区水质影响研究[D].北京: 清华大学, 2017. http://cdmd.cnki.com.cn/Article/CDMD-10003-1018876143.htm [26] ZHAO Y, ZHENG B, WANG L, et al.Characterization of mixing processes in the confluence zone between the Three Gorges Reservoir Mainstream and the Daning River using stable isotope analysis[J]. Environmental Science & Technology, 2016, 50(18):9907-9914. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=10269d7dc02d02e6ca905c2b150d9f59 [27] STRSKRABA M, TUNDISI J G.Guidelines of lake management volume 9: reservoir water quality management[M]. Oroshimo-cho, Kusatsu, Shiga, Japan: International Lake Environment Committee, 1999. [28] 中国环境科学研究院.三峡水库生态安全调查与评估(2008年度)[R].北京: 中国环境科学研究院, 2009. [29] 中国环境科学研究院.库区污染源调查专题报告[R].北京: 中国环境科学研究院, 2014. [30] 郑丙辉, 王丽婧, 龚斌.三峡水库上游河流入库面源污染负荷研究[J].环境科学研究, 2009, 22(2):125-131. http://www.hjkxyj.org.cn/hjkxyj/ch/reader/view_abstract.aspx?file_no=20090201&flag=1ZHENG Binghui, WANG Lijing, GONG Bin.Load of non-point source pollutants from upstream river into Three Gorges Reservoir[J]. Research of Environmental Sciences, 2009, 22(2):125-131. http://www.hjkxyj.org.cn/hjkxyj/ch/reader/view_abstract.aspx?file_no=20090201&flag=1 [31] 中国环境科学研究院.水库型流域水质安全评估与预警技术研究[R].北京: 中国环境科学研究院, 2017. [32] 张佳磊, 郑丙辉, 刘德富, 等.三峡水库大宁河支流浮游植物演变过程及其驱动因素[J].环境科学, 2017, 38(2):535-546. http://d.old.wanfangdata.com.cn/Periodical/hjkx201702016ZHANG Jialei, ZHENG Binghui, LIU Defu, et al.Succession pattern of phytoplankton of Daning River in the Three Gorges Reservoir and its driving factors[J]. Environmental Science, 2017, 38(2):535-546. http://d.old.wanfangdata.com.cn/Periodical/hjkx201702016 [33] 张佳磊.三峡库区大宁河富营养化和水华研究[D].上海: 华东师范大学, 2011. http://cdmd.cnki.com.cn/Article/CDMD-10269-1011130832.htm -
