Analysis on Alteration of Water Quality and Pollutant Fluxes in the Yangtze Mainstem during Recently 18 Years
-
摘要: 长江是我国第一大河,2000年以来长江流域水环境形势发生了巨大变化,长江水质现状及其变化和原因备受关注.采用水质、水量、污染物通量、污染负荷等多要素综合分析方法,研究了近18年长江干流水质和污染物通量的时空分布、变化趋势及原因.结果表明:①宜宾以下长江干流总磷浓度高于金沙江;从源区至入海口,长江干流氨氮浓度总体呈沿程上升趋势.②2011—2013年是长江干流水质重要转折期.2003—2010年,长江下游江段氨氮浓度总体呈明显上升趋势,2013—2018年大幅下降,下降约65%;2012—2018年,长江干流大部分江段总磷浓度呈明显下降趋势,其中上游下降最大,为45%~60%;2003—2018年,长江干流高锰酸盐指数、重金属和石油类污染均明显减轻.③2000年以来,长江水量未有明显增大或减小趋势,但输沙量大幅下降.总磷年通量与年径流量密切相关,年内丰水期总磷通量较高.2001—2006年宜昌断面、汉口37码头断面氨氮年通量大幅下降;2013—2018年,大通断面氨氮年通量呈明显下降趋势.④2018年,大通断面总磷、氨氮年通量分别约为9.37×104和21.47×104 t.总磷汇入量中游强于下游,氨氮汇入量下游强于中游.上游向下游磷的输送由21世纪初以颗粒态为主转变为2017—2018年以溶解态为主.⑤长江下游江段氨氮浓度和大通断面氨氮年通量的显著下降,以及长江整体石油类超标率大幅下降均主要归因于水污染防治;长江干流大部分江段总磷的明显下降主要归因于随泥沙汇入水体磷的减少,以及长江流域水污染防治.研究显示,近18年来长江干流污染物浓度、时空特征、输送形态发生了巨大变化.Abstract: The Yangtze River is the largest river in China. Since 2000, great changes have taken place in the water environment of the Yangtze River Basin. The changes in the water quality of the Yangtze River and its causes have attracted widespread concern. Therefore, the status and trends of water quality and pollutant flux in the mainstem of the Yangtze River in recently 18 years were analyzed, and results indicate: (1) The concentration of total phosphorus (TP) in the reach downstream from Yibin was higher than that in the Jinsha River, and the ammonia nitrogen concentration showed an upward trend from the source area to the estuary. (2) Ammonia nitrogen concentration in the lower reach increased significantly during 2003-2013, then decreased by 65% during 2013-2018. Since 2013, the concentration of TP in the mainstem has declined significantly, especially in the upper mainstem with the reduction of 45%-60%. From 2003 to 2018, Permanganate Index, the concentration of heavy metals and petroleum in the mainstem were greatly reduced. (3) Since 2000, there has been no significant increase or decrease in the water volume of the Yangtze River, but the sediment transported has decreased greatly. The annual flux of total phosphorus is closely related to the annual runoff, and the flux in wet season is larger than that in other seasons. From 2001 to 2006, the annual ammonia nitrogen fluxes in Yichang section and No.37 Hankou Port section decreased significantly, and from 2013 to 2018, the annual ammonia nitrogen flux at Datong section decreased significantly. (4) The TP flux and ammonia nitrogen flux in Datong section were 9.37×104 and 21.47×104 t, respectively, in 2018. Phosphorus inflow in the middle reach was stronger than that in the lower reach, and the ammonia nitrogen inflow in the lower reach was stronger than that in the middle reach. The main transport form of phosphorus from upstream to downstream has changed from the granular state at the beginning of this century to the dissolved state at present. (5) Significant decrease of ammonia nitrogen concentration in the lower reach and declination of standard-exceeding rate of petroleum in the mainstem are mainly due to water pollution control; the significant decrease of TP, permanganate index in the mainstem are mainly due to the reduction of sediment entering the water and water pollution control. The results show that the concentration, temporal and spatial characteristics and transport patterns of pollutants in the mainstem of the Yangtze River have changed dramatically in the past 18 years.
-

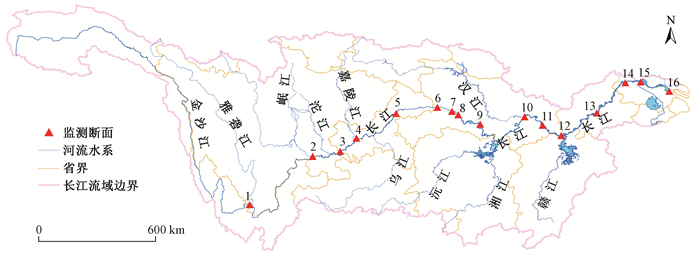

图 1 长江干流水质趋势分析断面示意
监测断面:1—攀枝花;2—宜宾;3—朱沱;4—寸滩;5—万州沱口;6—官渡口;7—太平溪;8—宜昌;9—沙市五七码头;10—汉口37码头;11—黄石西塞山;12—九江化工厂下游;13—大通;14—南京化工厂下游;15—镇江青龙山;16—徐六泾.
注:宜宾以上为金沙江,以下为长江.第一个断面(攀枝花)距长江起点约2 700 km,距上海南汇嘴约3 530 km.Figure 1. Schematic map for monitoring sections for water quality trend in the mainstem of Yangtze River

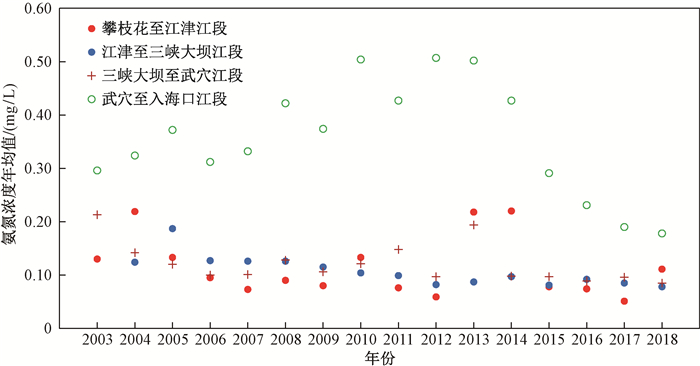

图 4 2003—2018年长江干流不同江段氨氮浓度年际变化
注:攀枝花至江津江段包含攀枝花、宜宾、朱沱断面; 江津至三峡大坝江段包含寸滩、沱口、官渡口、太平溪断面; 三峡大坝至武穴江段包含宜昌、沙市五七码头、汉口37码头、黄石西塞山断面; 武穴至入海口江段包含九江化工厂下游、大通、南京化工厂下游、镇江青龙山、徐六泾断面.
Figure 4. Interannual variation of ammonia nitrogen concentrations in different reaches in the mainstem of Yangtze River from 2003 to 2018
表 1 2001—2018年宜昌、汉口37码头、大通3断面年径流量和污染物年通量特征值
Table 1. Characteristic values of annual runoff and pollutant fluxes at Yichang, No.37 Hankou Port and Datong sections from 2001 to 2018
项目 宜昌断面 汉口37码头断面 大通断面 数值 年份 数值 年份 数值 年份 平均值 4 086 — 6 836 — 8 652 — 年径流量/
(108 m3)最小值 2 848 2006 5 341 2006 6 671 2011 最大值 4 738 2018 7 687 2002 10 450 2016 ] 平均值 4.289 — 8.122 — 10.45 — 总磷年通量/
(104 t)最小值 2.063 2006 5.229 2001 5.51 2006 最大值 6.272 2012 10.880 2016 13.89 2016 平均值 5.260 — 6.254 — 29.77 — 氨氮年通量/
(104 t)最小值 3.405 2011 3.129 2018 17.02 2017 最大值 12.18 2001 19.790 2004 50.27 2010 表 2 不同时期长江流域水污染防治和水土流失控制及具有拦沙作用的水电工程情况
Table 2. Prevention and control of water pollution and soil erosion and hydropower projects with trapping sands in different periods in the Yangtze River Basir
时期 水污染防治 水土流失治理 拦沙作用水电工程 “九五”期间
(1995—2000年)1996年第1次修订《水污染防治法》,将重点流域污染防治纳入法律. 1996年《国务院关于环境保护若干问题的决定》提出“一控双达标”.淮河水污染事件的出现促进了全国对水环境保护的认识和重视 1980年调查结果表明,长江流域水土流失面积为62.2 km2; 1990年调查结果表明,长江流域水土流失面积为53.1×104 km2[31] “十五”期间
(2001—2005年)“十五”期间进入废污水排放迅速增长期,根据“九五”和“十五”计划的实施情况评估发现, 两期计划的水质目标过于超前, 对水污染状况的治理难度评估不足,虽然制定了COD、氨氮总量消减目标,但效果有限[30] 截至2005年,长江流域累计治理水土流失面积28.4×104 km2[31] 2003年三峡工程蓄水成库 “十一五”期间
(2006—2010年)“十一五”期间水污染防治规划首次明确了“五到省”原则,即“规划到省、任务到省、目标到省、项目到省、责任到省”,依据《水污染防治法》地方政府对当地水环境质量负责,突出水污染防治地方政府责任;COD正式纳入总量控制约束性指标.做到了既有总量控制,又有制度保障[30] “十二五”期间
(2011—2015年)水环境保护力度大为加强.建立了流域—控制区—控制单元的三级分区体系;采用水污染物总量控制和水质改善双约束指标体系,强化了考核.流域废污水治理投资从2010年的77×108元增至2015年的196×108元,污水处理厂数量增加了近2倍.氨氮正式纳入总量控制约束性指标.较好地完成了COD、氨氮总量控制目标[30] 2013年公布水土流失面积38.46×104 km2; 2006—2015年长江流域累计治理水土流失面积14.73×104 km2[32] 2012年向家坝水电站建蓄水成库; 2013年溪洛渡水电站蓄水成库 “十三五”期间
(2016—2018年)长江流域水生态环境保护向纵深发展;长江“共抓大保护,不搞大开发”深入人心;“河湖长制”落地生根;实施“长江水污染防治攻坚战”“长江生态修复攻坚战”.由“以总量控制为核心”转变为“以总量控制和质量改善为核心”.建立现代化水环境治理体系,逐步形成“大环保”格局 2018年水土流失面积34.67×104 km2[33] -
