【中国重点行业和领域碳达峰研究专题】编者按：实现碳达峰碳中和，是以习近平同志为核心的党中央统筹国内国际两个大局做出的重大战略决策，是着力解决资源环境约束突出问题、实现中华民族永续发展的必然选择，是构建人类命运共同体的庄严承诺. 《中共中央 国务院关于完整准确全面贯彻新发展理念做好碳达峰碳中和工作的意见》中明确指出要“制定能源、钢铁、有色金属、石化化工、建材、交通、建筑等行业和领域碳达峰实施方案”. 以重点行业和领域为切入点，开展碳中和约束下的我国碳排放达峰路径研究，明确时间表、路线图、施工图，是支撑我国制定碳达峰行动方案，推动产业结构调整和重点行业低碳发展，实现2030年前碳达峰目标和经济社会全面低碳转型的基础性研究工作. 面向国家重大战略需求，生态环境部环境规划院联合国内14家行业协会和科研机构，基于统一的方法体系和生态环境部环境规划院自主研发的排放路径模型(CAEP-CP模型)，对我国重点行业和重点领域碳达峰路径及关键举措开展系统研究. 研究以满足社会经济高质量稳定发展需求和国家碳达峰碳中和双重目标为约束开展自上而下的宏观路径研究，以合计贡献了我国碳排放90%以上的电力、钢铁、水泥、铝冶炼、石化化工、煤化工共6个重点行业以及交通、建筑2个重点领域为对象，开展自下而上的重点行业/领域碳达峰路径研究；采取自上而下和自下而上相结合的方式，通过上下路径反复迭代、行业间耦合优化，打通宏观路径与微观措施的联动和双向反馈，综合研判提出分行业分领域碳达峰路线图以及基于此的全国碳达峰路线图. 这一系统研究提出的碳达峰路径及识别的关键控碳减碳技术手段、措施和政策将为细化落实国家双碳战略目标提供有效技术支撑.
Pathway for Carbon Dioxide Peaking in China Based on Sectoral Analysis
-
摘要: 开展碳排放达峰路径研究，明确时间表、路线图、施工图，是支撑我国实现2030年前碳达峰目标的基础性研究工作. 本文采取自上而下和自下而上相结合的方式，以满足社会经济高质量稳定发展需求和国家碳达峰碳中和双重目标为约束开展自上而下的宏观路径研究；以合计贡献了我国碳排放(不含港澳台地区数据) 90%以上的电力、钢铁、水泥、铝冶炼、石化化工、煤化工共6个重点行业以及建筑、交通2个重点领域为对象，开展自下而上的重点行业/领域碳达峰路径研究；通过上下路径反复迭代、行业间耦合优化，打通宏观路径与微观措施的联动和双向反馈，最终形成基于重点行业/领域的我国碳达峰路径. 结果表明：为实现国家碳达峰、碳中和的目标愿景，需抓紧部署、大力推进包括清洁能源降碳、能效提升降碳、资源循环降碳、管理调控降碳等4类关键举措，方可实现我国碳排放量在2030年前达峰的目标，峰值较2020年增加5.0×108~7.0×108 t左右，达峰后将保持3~4年的峰值平台期. 受需求与技术驱动，不同领域碳排放总量将梯次实现达峰，其中工业领域（含钢铁、水泥、铝冶炼、石化化工、煤化工共5个重点行业）预计将在“十四五”期间整体达峰，达峰后碳排放稳定下降；电力行业和交通、建筑领域碳排放均在2030年左右实现达峰. 经测算，2021—2030年间，为推动碳达峰采取的4类关键措施预计需投入2.08×1013元；其中清洁能源降碳是最为有效的措施，同时也是成本最高的措施. 为保障关键举措顺利落地，建议全面加大政策创新，逐步形成系统完善的碳总量控制与交易市场机制、绿色低碳标准体系、行业准入及产业结构政策体系、价格财税及投融资机制等. 本研究分行业及领域的碳达峰路径研究成果及所识别的关键控碳减碳技术手段、措施和政策将为国家碳达峰路径设计提供技术支撑.Abstract: Studying the pathway to peaking China's CO2 emissions, taking the timetable, roadmap, and construction map as the expected outputs, is a basic research work to support the country to peak its carbon emissions peaking before 2030. In this study, we build a model that integrates top-down national pathway analysis with bottom-up sectoral analysis. The top-down analysis is constrained by the country's carbon dioxide peaking and carbon neutrality goals and by the demands associated with the socio-economic development. The pathway to peaking CO2 emissions in eight key sectors is analyzed individually with the interconnection between sectors considered. These eight sectors include the power sector, the iron and steel industry, the cement industry, the aluminum smelting industry, the petrochemical and chemical industry, the coal chemical industry, the residential sector, and the transportation sector, which together contribute >90% of the national CO2 emissions (excluding the data of Hong Kong, Macao and Taiwan). A national pathway is finally proposed by coupling the top-down national pathway analysis and the bottom-up sectoral analysis. Our results show that great efforts are necessary for achieving the carbon dioxide peaking target. By promoting clean energy, improving energy efficiency, increasing resource recycling, and optimizing management and regulation, China's CO2 emissions could be expected to peak before 2030, at a value 5.0×108-7.0×108 t higher than the 2020 levels. The national CO2 emissions are expected to fluctuate in the plateau period for 3-4 years after the peak. CO2 emissions from different sectors are expected to reach their peaks in different years as driven by the varying demands and technology options in different sectors. The total CO2 emissions from the industrial sector (including the iron and steel industry, the cement industry, the aluminum smelting industry, the petrochemical and chemical industry, and the coal chemical industry) are expected to peak during the ‘14th Five-Year Plan’ period, and keep decreasing afterward. CO2 emissions from the electricity, transportation, and building sectors are all expected to peak at around 2030. Specifically, by the emission peak year, the power sector and the transportation sector are the major driver that increase the national CO2 emissions, with the direct emissions from these two sectors increased by 5.4×108 and 4.5×108 t, respectively. This increment would be partially offset by the emission reduction contributed by the iron and steel industry and the cement industry, with value of 3.1×108 and 1.0×108 t (direct emissions), respectively. The four types of measures proposed previously are estimated to cost approximately 2.08×1013 RMB from 2021 to 2030. Among these measures, promoting clean energy is the most effective one to reduce emissions, and it is also the most expensive measure. Policies are necessary for ensuring the successful implementation of the proposed control measures. Based on the analysis, we suggest establishing a comprehensive CO2 cap-and-trade mechanism nationwide, establishing a green and low-carbon standard system, updating the industrial structure policy system, and implementing appropriate economic policies. The proposed national carbon peaking pathway, the identified key measures for each sector, and the proposed policies in this study could be expected to provide technical support for the design of China's carbon dioxide peaking pathways.
-
Key words:
- carbon dioxide peaking /
- national pathway /
- key sectors /
- key fields /
- sectoral analysis
-

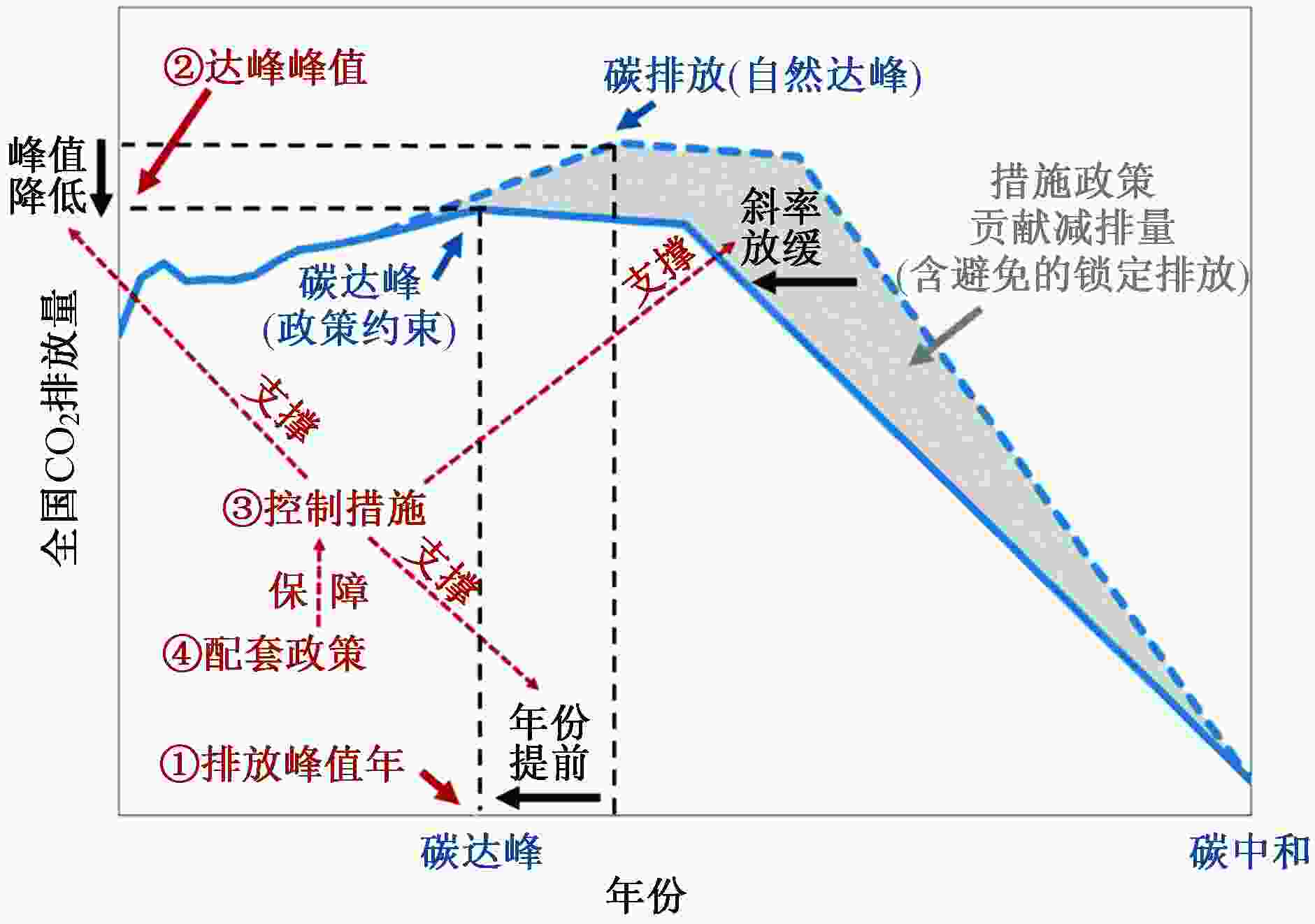

图 1 碳中和约束下的政策驱动型碳达峰路径基本内涵示意
Figure 1. Illustrative diagram of the concept of the carbon-neutrality-constrained policy-driven pathway to peaking CO2 emissions

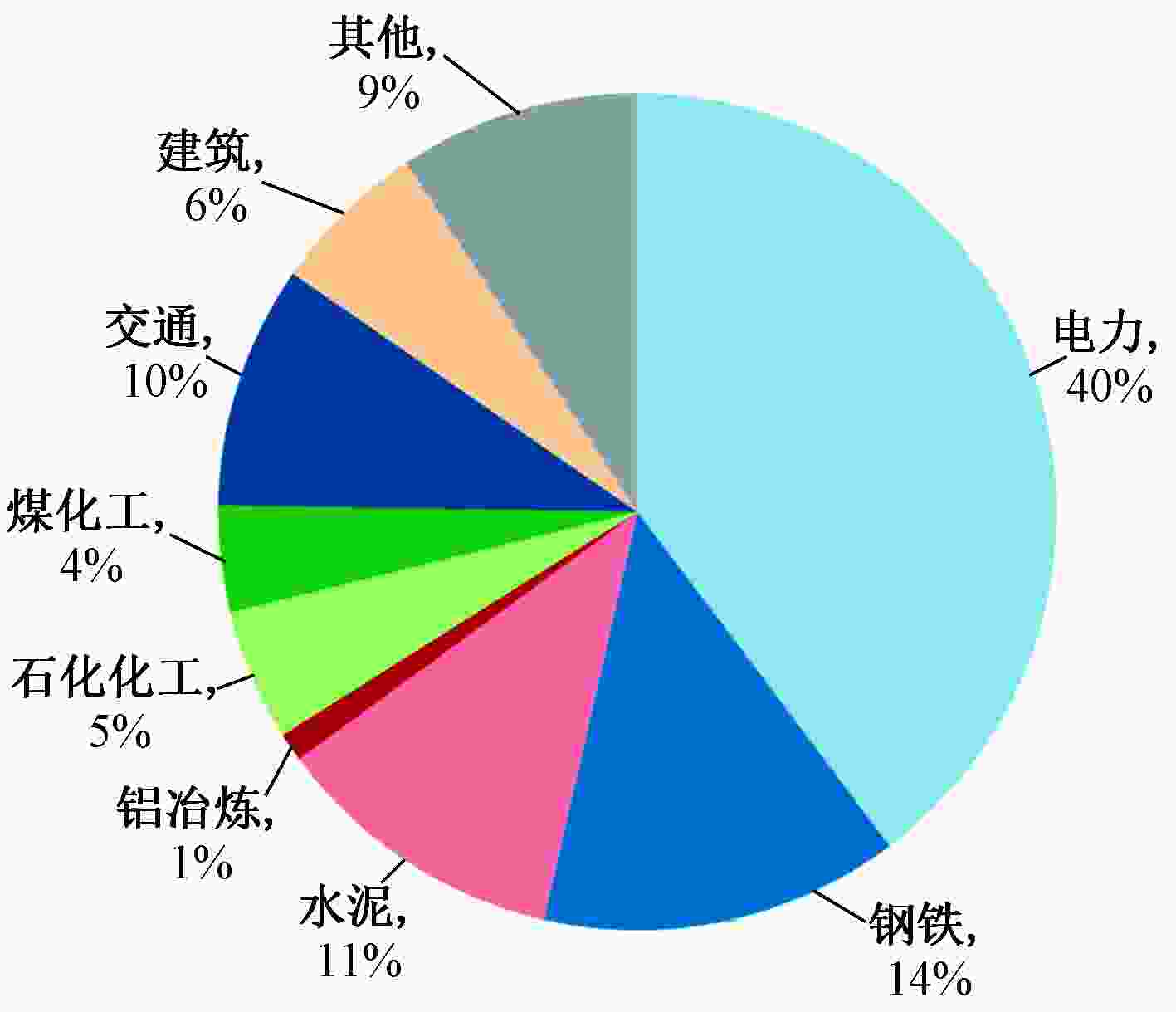

图 2 2020年我国主要行业/领域CO2排放贡献
注：各行业/领域碳排放量包含能源消费和工业过程的直接排放.
Figure 2. Sectoral contribution to China′s total CO2 emissions in 2020

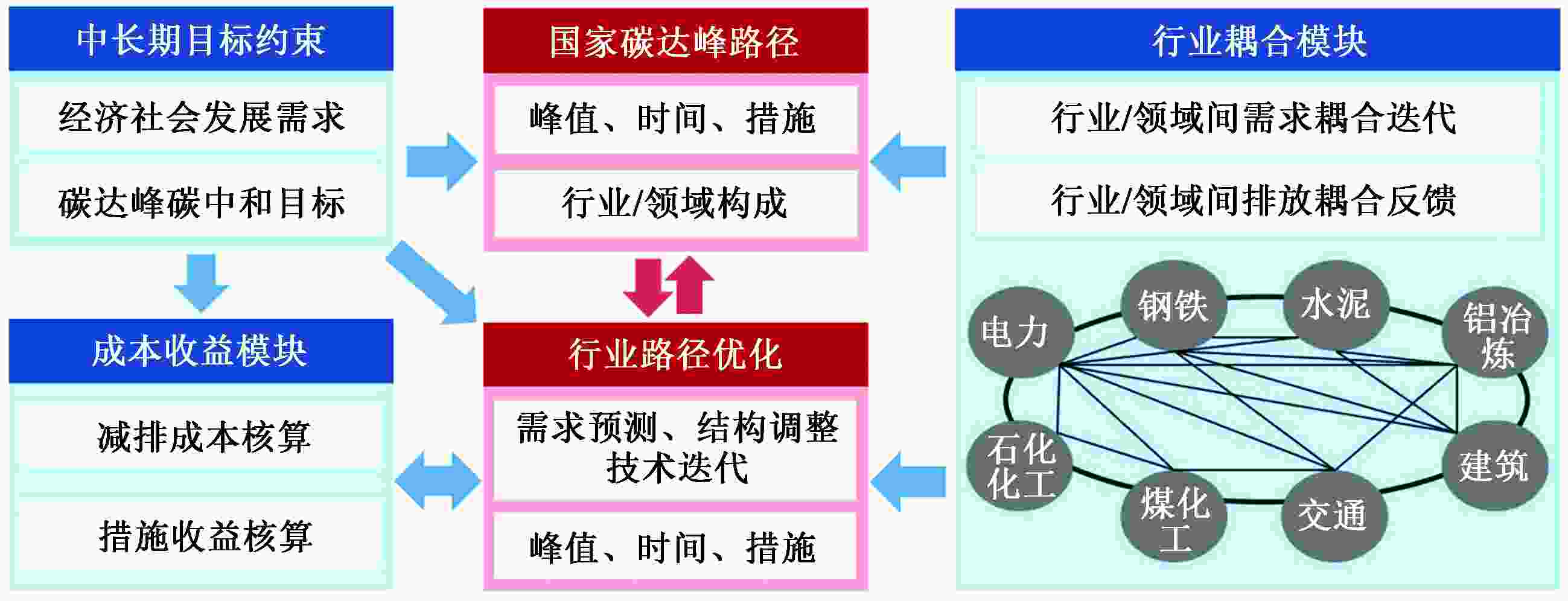

图 3 基于行业的我国碳排放达峰路径研究技术路线
Figure 3. Schematic diagram of the study on China′s carbon emission peaking pathway based on sectoral analysis

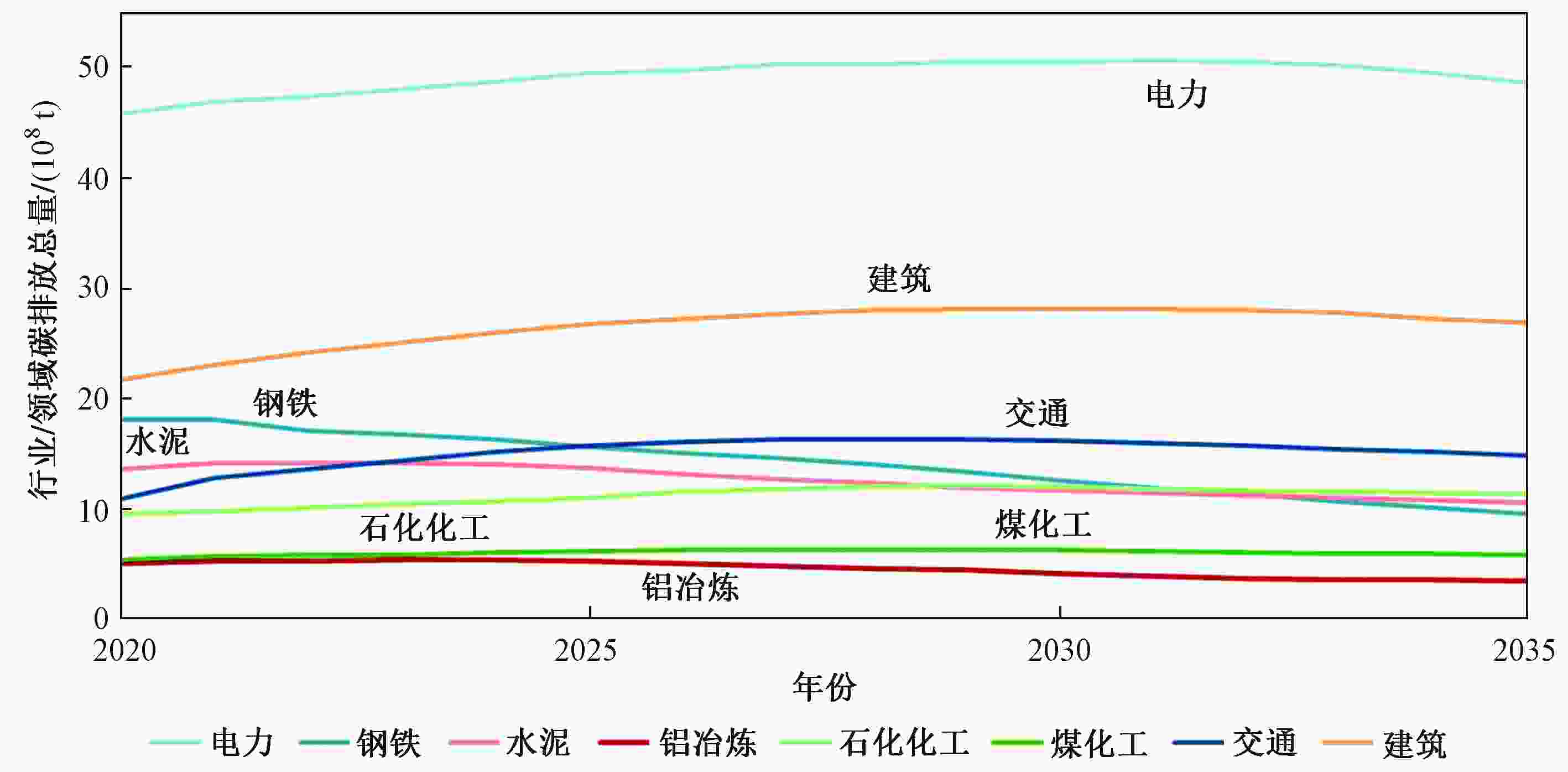

图 4 2020—2035年我国重点行业/领域碳排放总量预测结果
注：碳排放量为各行业/领域碳排放总量，包含能源消费直接排放、工业过程排放以及间接排放.
Figure 4. Projection of total CO2 emissions from key sectors from 2020 to 2035 in China

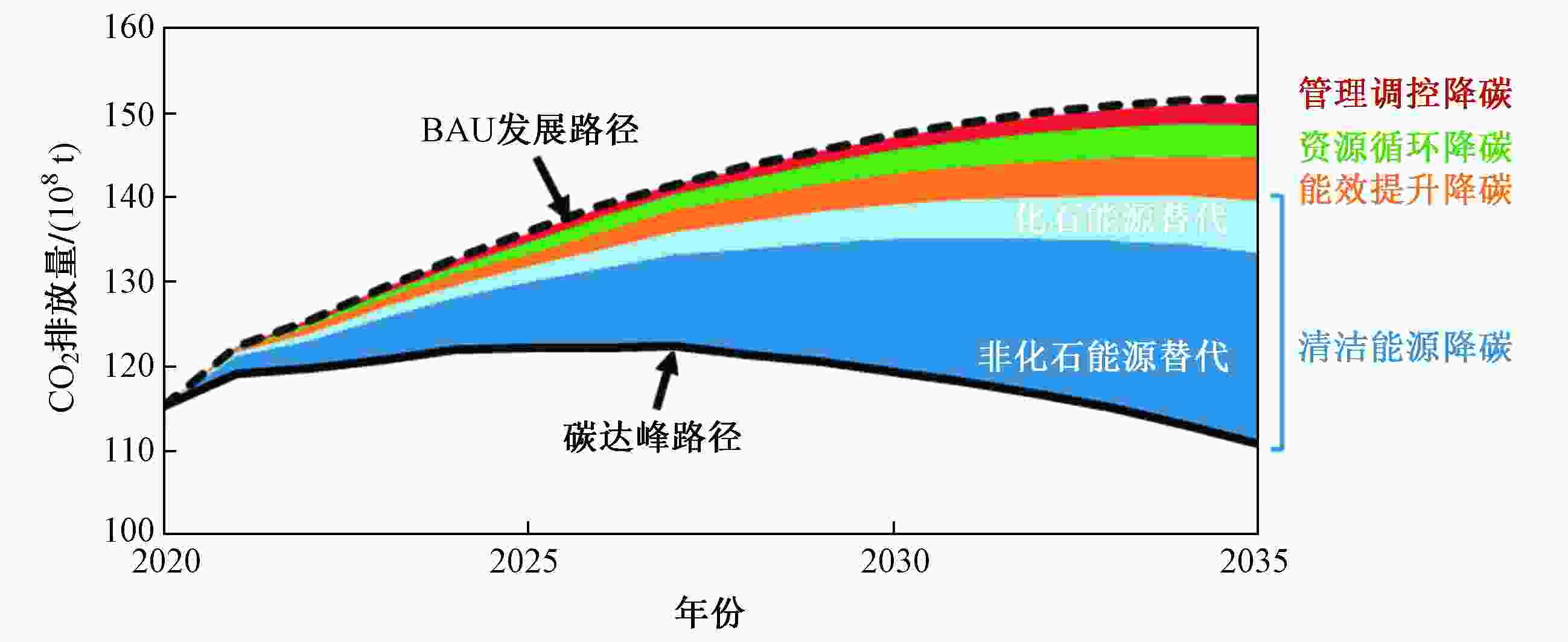

图 5 全国碳达峰路径中主要减排措施减排量测算结果
Figure 5. Projected emission abatements contributed by major control measures in the national carbon dioxide peaking pathway

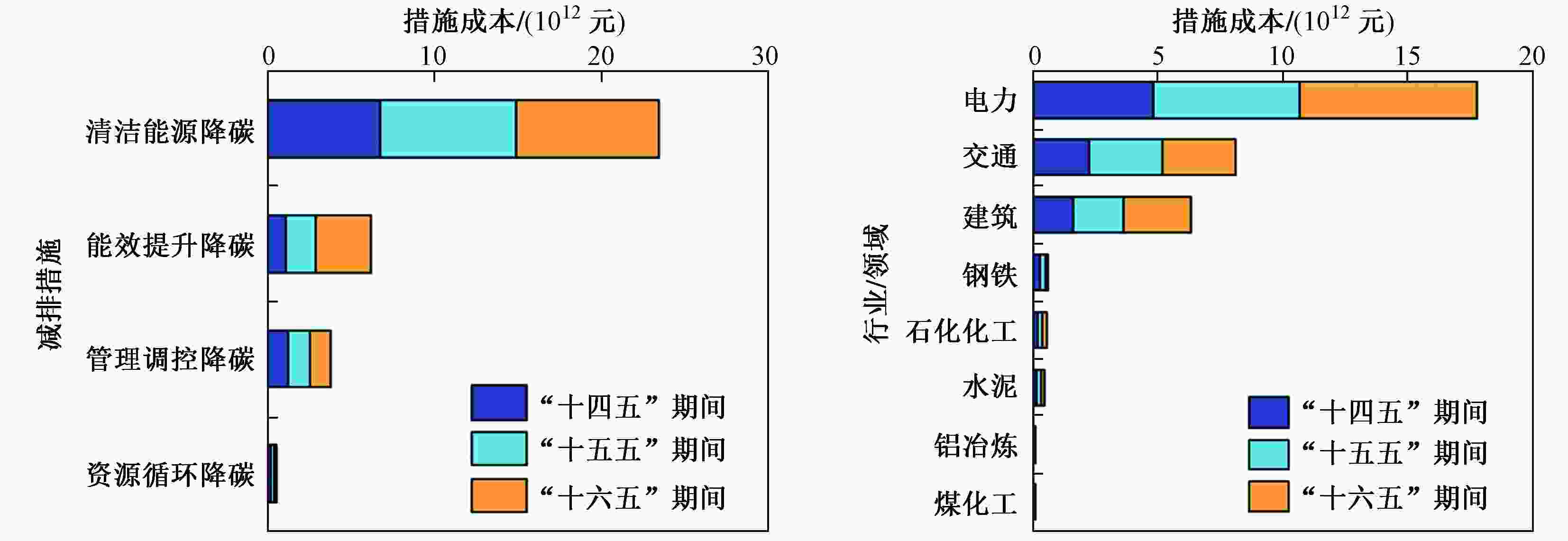

图 6 全国碳达峰路径中主要减排措施下的资金投入测算结果
Figure 6. Estimated cost of major control measures in China in the national carbon peaking pathway

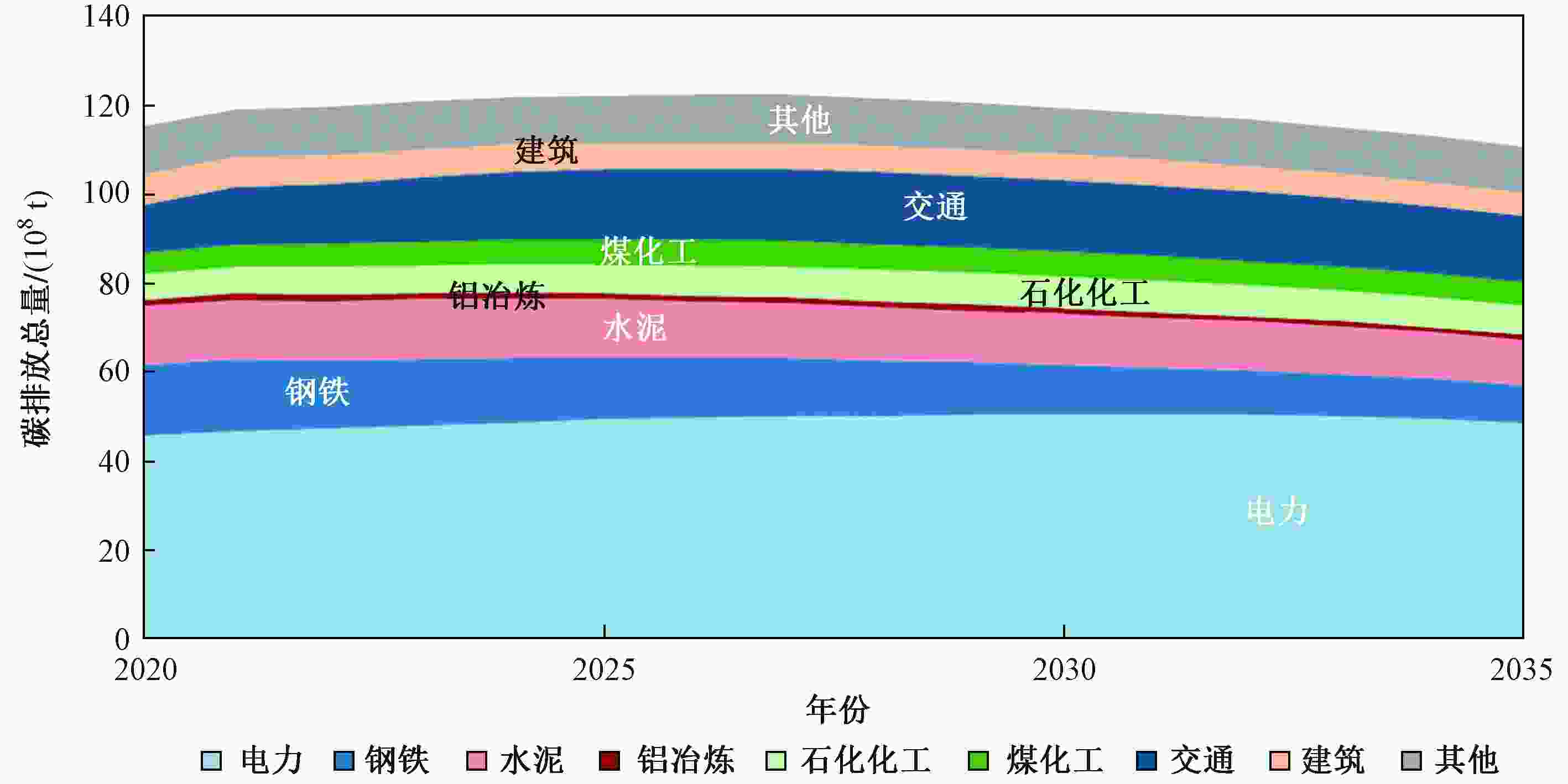

图 7 基于行业/领域分析形成的我国碳达峰路线图
注：碳排放量为各行业/领域直接排放量，包含能源消费直接排放和工业过程排放.
Figure 7. Pathway towards peaking China′s CO2 emissions based on sectoral analysis
-
[1] IPCC.Climate change and land:an IPCC special report on climate change,desertification,land degradation,sustainable land management,food security,and greenhouse gas fluxes in terrestrial ecosystems[R/OL].Geneva:IPCC,(2019-08-08)[2021-10-29].https://www.ipcc.ch/srccl. [2] IPCC.Climate change 2013:the physical science basis,IPCC[M].Cambridge:Cambridge University Press,2013. [3] GALLAGHER K S,ZHANG F,ORVIS R,et al.Assessing the policy gaps for achieving China's climate targets in the Paris Agreement[J].Nature Communications,2019,10:1256. doi: 10.1038/s41467-019-09159-0 [4] 秦大河,陈振林,罗勇,等.气候变化科学的最新认知[J].气候变化研究进展,2007,3(2):63-73.QIN D H,CHEN Z L,LUO Y,et al.Updated understanding of climate change sciences[J].Advances in Climate Change Research,2007,3(2):63-73. [5] 田广生.中国气候变化影响研究概况[J].环境科学研究,2000,13(1):36-39. doi: 10.3321/j.issn:1001-6929.2000.01.009TIAN G S.Review of the climate change impact study in China[J].Research of Environmental Sciences,2000,13(1):36-39. doi: 10.3321/j.issn:1001-6929.2000.01.009 [6] 王金南,严刚.加快实现碳排放达峰 推动经济高质量发展[N/OL].北京:经济日报,(2021-01-04)[2021-10-29].http://www.xinhuanet.com/fortune/2021-01/04/c_1126941705.htm. [7] IPCC.Global warming of 1.5 ℃:an IPCC special report on the impacts of global warming of 1.5 ℃ above pre-industrial levels and related global greenhouse gas emission pathways,in the context of strengthening the global response to the threat of climate change,sustainable development,and efforts to eradicate poverty[R/OL].Geneva:IPCC,(2018-10-08)[2021-10-29].https://www.ipcc.ch/sr15. [8] FRIEDLINGSTEIN P,O′SULLIVAN M,JONES M W,et al.Global carbon budget 2020[J].Earth System Science Data,2020,12(4):3269-3340. doi: 10.5194/essd-12-3269-2020 [9] TONG D,ZHANG Q,ZHENG Y X,et al.Committed emissions from existing energy infrastructure jeopardize 1.5 ℃ climate target[J].Nature,2019,572(7769):373-377. doi: 10.1038/s41586-019-1364-3 [10] United States Energy Information Administration.U. S. energy-related carbon dioxide emissions[DB/OL].Washington DC:United States Energy Information Administration,(2021-10-26)[2021-10-29].https://www.eia.gov/totalenergy/data/monthly/#environment. [11] World Bank Databank.CO2 emissions:European Union[DB/OL].Washington DC:World Bank,(2021-10-28)[2021-10-29].https://data.worldbank.org/indicator/EN.ATM.CO2E.KT?locations=EU. [12] JIANG J J,YE B,LIU J G.Research on the peak of CO2 emissions in the developing world: current progress and future prospect[J].Applied Energy,2019,235:186-203. doi: 10.1016/j.apenergy.2018.10.089 [13] 唐杰,温照傑,王东,等.OECD国家碳排放达峰过程及对我国的借鉴意义[J].深圳社会科学,2021,4(4):28-37.TANG J,WEN Z J,WANG D,et al.The process of carbon emission peak in OECD and the reference significance to China[J].Social Sciences in Shenzhen,2021,4(4):28-37. [14] TANG B J,LI R,YU B Y,et al.How to peak carbon emissions in China′s power sector: a regional perspective[J].Energy Policy,2018,120:365-381. doi: 10.1016/j.enpol.2018.04.067 [15] 朱法华,王玉山,徐振,等.中国电力行业碳达峰、碳中和的发展路径研究[J].电力科技与环保,2021,37(3):9-16.ZHU F H,WANG Y S,XU Z,et al.Research on the development path of carbon peak and carbon neutrality in China's power industry[J].Electric Power Technology and Environmental Protection,2021,37(3):9-16. [16] TAO Y,WEN Z G,XU L N,et al.Technology options: can Chinese power industry reach the CO2 emission peak before 2030?[J].Resources, Conservation and Recycling,2019,147:85-94. doi: 10.1016/j.resconrec.2019.04.020 [17] ZHANG X,ZHAO X R,JIANG Z J,et al.How to achieve the 2030 CO2 emission-reduction targets for China′s industrial sector: retrospective decomposition and prospective trajectories[J].Global Environmental Change,2017,44:83-97. doi: 10.1016/j.gloenvcha.2017.03.003 [18] ZHOU S,WANG Y,YUAN Z Y,et al.Peak energy consumption and CO2 emissions in China′s industrial sector[J].Energy Strategy Reviews,2018,20:113-123. doi: 10.1016/j.esr.2018.02.001 [19] WANG H L,OU X M,ZHANG X L.Mode, technology, energy consumption, and resulting CO2 emissions in China′s transport sector up to 2050[J].Energy Policy,2017,109:719-733. doi: 10.1016/j.enpol.2017.07.010 [20] LI X,YU B Y.Peaking CO2 emissions for China's urban passenger transport sector[J].Energy Policy,2019,133:110913. doi: 10.1016/j.enpol.2019.110913 [21] MA M D,MA X,CAI W,et al.Low carbon roadmap of residential building sector in China: historical mitigation and prospective peak[J].Applied Energy,2020,273:115247. doi: 10.1016/j.apenergy.2020.115247 [22] 张保留,吕连宏,吴静,等.农村居民生活碳达峰路径及对策[J].环境科学研究,2021,34(9):2065-2075.ZHANG B L,LÜ L H,WU J,et al.Rural household carbon-peak path and countermeasures[J].Research of Environmental Sciences,2021,34(9):2065-2075. [23] 曹丽斌,李明煜,张立,等.长三角城市群CO2排放达峰影响研究[J].环境工程,2020,38(11):33-38.CAO L B,LI M Y,ZHANG L,et al.Research on carbon dioxide emission peaking in the Yangtze River Delta urban agglomeration[J].Environmental Engineering,2020,38(11):33-38. [24] 臧宏宽,杨威杉,张静,等.京津冀城市群二氧化碳排放达峰研究[J].环境工程,2020,38(11):19-24.ZANG H K,YANG W S,ZHANG J,et al.Research on carbon dioxide emissions peaking in Beijing-Tianjin-Hebei city agglomeration[J].Environmental Engineering,2020,38(11):19-24. [25] WU F,HUANG N Y,LIU G J,et al.Pathway optimization of China′s carbon emission reduction and its provincial allocation under temperature control threshold[J].Journal of Environmental Management,2020,271:111034. doi: 10.1016/j.jenvman.2020.111034 [26] ZHANG X,GENG Y,SHAO S,et al.How to achieve China′s CO2 emission reduction targets by provincial efforts?an analysis based on generalized Divisia index and dynamic scenario simulation[J].Renewable and Sustainable Energy Reviews,2020,127:109892. doi: 10.1016/j.rser.2020.109892 [27] 郭芳,王灿,张诗卉.中国城市碳达峰趋势的聚类分析[J].中国环境管理,2021,13(1):40-48.GUO F,WANG C,ZHANG S H.Cluster analysis of carbon emissions peaking trends in Chinese cities[J].Chinese Journal of Environmental Management,2021,13(1):40-48. [28] 李惠民,张西,张哲瑜,等.北京市碳排放达峰路径及政策启示[J].环境保护,2020,48(5):24-31.LI H M,ZHANG X,ZHANG Z Y,et al.The pathway and policy implication of reaching peak of carbon emission in Beijing[J].Environmental Protection,2020,48(5):24-31. [29] 张立,谢紫璇,曹丽斌,等.中国城市碳达峰评估方法初探[J].环境工程,2020,38(11):1-5.ZHANG L,XIE Z X,CAO L B,et al.Discussion on evaluation method on carbon dioxide emissions peaking for Chinese cities[J].Environmental Engineering,2020,38(11):1-5. [30] ZHANG Y Q,LIU C G,CHEN L,et al.Energy-related CO2 emission peaking target and pathways for China′s city: a case study of Baoding City[J].Journal of Cleaner Production,2019,226:471-481. doi: 10.1016/j.jclepro.2019.04.051 [31] 王深,吕连宏,张保留,等.基于多目标模型的中国低成本碳达峰、碳中和路径[J].环境科学研究,2021,34(9):2044-2055.WANG S,LÜ L H,ZHANG B L,et al.Multi objective programming model of low-cost path for China′s peaking carbon dioxide emissions and carbon neutrality[J].Research of Environmental Sciences,2021,34(9):2044-2055. [32] 赵明轩,吕连宏,王深,等.中国碳达峰路径的meta回归分析[J].环境科学研究,2021,34(9):2056-2064.ZHAO M X,LÜ L H,WANG S,et al.Meta regression analysis of pathway of peak carbon emissions in China[J].Research of Environmental Sciences,2021,34(9):2056-2064. [33] ZHOU N,PRICE L,DAI Y D,et al.A roadmap for China to peak carbon dioxide emissions and achieve a 20% share of non-fossil fuels in primary energy by 2030[J].Applied Energy,2019,239:793-819. doi: 10.1016/j.apenergy.2019.01.154 [34] LUGOVOY O,FENG X Z,GAO J,et al.Multi-model comparison of CO2 emissions peaking in China: lessons from CEMF01 study[J].Advances in Climate Change Research,2018,9(1):1-15. doi: 10.1016/j.accre.2018.02.001 [35] 胡鞍钢.中国实现2030年前碳达峰目标及主要途径[J].北京工业大学学报(社会科学版),2021,21(3):1-15.HU A G.China's goal of achieving carbon peak by 2030 and its main approaches[J].Journal of Beijing University of Technology (Social Sciences Edition),2021,21(3):1-15. [36] 王志轩.碳达峰、碳中和目标实现路径与政策框架研究[J].电力科技与环保,2021,37(3):1-8.WANG Z X.Research on the pathway and policy framework of achieving carbon peak and carbon neutrality[J].Electric Power Technology and Environmental Protection,2021,37(3):1-8. [37] ELZEN M D,FEKETE H,HÖHNE N,et al.Greenhouse gas emissions from current and enhanced policies of China until 2030: can emissions peak before 2030?[J].Energy Policy,2016,89:224-236. doi: 10.1016/j.enpol.2015.11.030 [38] ZHANG X L,KARPLUS V J,QI T,et al.Carbon emissions in China: how far can new efforts bend the curve?[J].Energy Economics,2016,54:388-395. doi: 10.1016/j.eneco.2015.12.002 [39] MI Z F,WEI Y M,WANG B,et al.Socioeconomic impact assessment of China's CO2 emissions peak prior to 2030[J].Journal of Cleaner Production,2017,142:2227-2236. doi: 10.1016/j.jclepro.2016.11.055 [40] 蔡博峰,曹丽斌,雷宇,等.中国碳中和目标下的二氧化碳排放路径[J].中国人口·资源与环境,2021,31(1):7-14.CAI B F,CAO L B,LEI Y,et al.China's carbon emission pathway under the carbon neutrality target[J].China Population, Resources and Environment,2021,31(1):7-14. [41] 赵明轩,吕连宏,张保留,等.中国能源消费、经济增长与碳排放之间的动态关系[J].环境科学研究,2021,34(6):1509-1522.ZHAO M X,LÜ L H,ZHANG B L,et al.Dynamic relationship among energy consumption, economic growth and carbon emissions in China[J].Research of Environmental Sciences,2021,34(6):1509-1522. [42] 张型芳,罗宏,吕连宏.碳排放与经济增长的协调性分析[J].环境工程技术学报,2017,7(4):517-524. doi: 10.3969/j.issn.1674-991X.2017.04.071ZHANG X F,LUO H,LÜ L H.Coordination analysis on carbon emission and economic growth[J].Journal of Environmental Engineering Technology,2017,7(4):517-524. doi: 10.3969/j.issn.1674-991X.2017.04.071 [43] 蔡博峰,吕晨,董金池,等.重点行业/领域碳达峰路径研究方法[J].环境科学研究,2021.doi: 10.13198/j.issn.1001-6929.2021.11.05.CAI B F,LV C,DONG J C,et al.Research method for carbon peaking pathway in key industries/sectors[J].Research of Environmental Sciences,2021.doi: 10.13198/j.issn.1001-6929.2021.11.05 [44] 王丽娟,张剑,王雪松,等.中国电力行业二氧化碳排放达峰路径研究[J].环境科学研究,2021.doi: 10.13198/j.issn.1001-6929.2021.11.24.WANG L J,ZHANG J,WANG X S,et al.Pathway of carbon emissions peak for in China′s electric power industry[J].Research of Environmental Sciences,2021.doi: 10.13198/j.issn.1001-6929.2021.11.24. [45] 汪旭颖,李冰,吕晨,等.中国钢铁行业二氧化碳排放达峰路径研究[J].环境科学研究,2021.doi: 10.13198/j.issn.1001-6929.2021.11.11.WANG X Y,LI B,LV C,et al.China′s iron and steel industry carbon emissions peak pathways[J].Research of Environmental Sciences,2021.doi: 10.13198/j.issn.1001-6929.2021.11.11. [46] 贺晋瑜,何捷,王郁涛,等.中国水泥行业二氧化碳达峰路径研究[J].环境科学研究,2021.doi: 10.13198/j.issn.1001-6929.2021.11.19.HE J Y,HE J,WANG Y T,et al.Pathway of carbon emissions peak for cement industry in China[J].Research of Environmental Sciences,2021.doi: 10.13198/j.issn.1001-6929.2021.11.19. [47] 王丽娟,邵朱强,熊慧,等.中国铝冶炼行业二氧化碳排放达峰路径研究[J].环境科学研究,2021.doi: 10.13198/j.issn.1001-6929.2021.11.18.WANG L J,SHAO Z Q,XIONG H,et al.Pathway of carbon emissions peak of aluminum industry[J].Research of Environmental Sciences,2021.doi: 10.13198/j.issn.1001-6929.2021.11.18. [48] 庞凌云,翁慧,常靖,等.中国石化化工行业二氧化碳排放达峰路径研究[J].环境科学研究,2021.doi: 10.13198/j.issn.1001-6929.2021.11.26.PANG L Y,WENG H,CHANG J,et al.Pathway of carbon emission peak for China's petrochemical and chemical industries[J].Research of Environmental Sciences,2021.doi: 10.13198/j.issn.1001-6929.2021.11.26. [49] 金玲,郝成亮,吴立新,等.中国煤化工行业二氧化碳排放达峰路径研究[J].环境科学研究,2021.doi: 10.13198/j.issn.1001-6929.2021.11.08.JING L,HAO C L,WU L X,et al.Pathway of carbon emissions peak of China′s coal chemical industry[J].Research of Environmental Sciences,2021.doi: 10.13198/j.issn.1001-6929.2021.11.08. [50] 袁闪闪,陈潇君,杜艳春,等.中国建筑领域二氧化碳排放达峰路径研究[J].环境科学研究,2021.doi: 10.13198/j.issn.1001-6929.2021.11.12.YUAN S S,CHEN X J,DU Y C,et al.Pathway of carbon emission peak of China′s building sector[J].Research of Environmental Sciences,2021.doi: 10.13198/j.issn.1001-6929.2021.11.12. [51] 黄志辉,纪亮,尹洁,等.中国道路交通二氧化碳排放达峰路径研究[J].环境科学研究,2021.doi: 10.13198/j.issn.1001-6929.2021.11.06.HUANG Z H,JI L,YIN J,et al.Peak pathway of China′s road traffic carbon emissions[J].Research of Environmental Sciences,2021.doi: 10.13198/j.issn.1001-6929.2021.11.06. [52] 张静,薛英岚,赵静,等.重点行业/领域碳达峰成本测算及社会经济影响评估[J].环境科学研究,2021.doi: 10.13198/j.issn.1001-6929.2021.11.07.ZHANG J,XUE Y L,ZHAO J,et al.Evaluation of cost and economic impact of China′s carbon peak pathway on key industries[J].Research of Environmental Sciences,2021.doi: 10.13198/j.issn.1001-6929.2021.11.07. [53] 寇佳丽.2021年世界经济展望[J].经济,2021(2):83-85. [54] 刘世锦.中国经济增长十年展望(2020—2029年):战疫增长模式[M].北京:中信出版社,2020:15-20. [55] 蒋洪强,张伟,胡溪,等.2020—2050年迈向“美丽中国”的环境经济预测与形式分析研究报告[M].北京:中国环境出版集团,2020:16-20. [56] The Centre for Economics and Business Research.World economic league table 2021[R].London:the Centre for Economics and Business Research,2020. -
