【污染场地修复后土壤与场地安全利用监管技术和标准研究专题】编者按：《土壤污染防治法》和《土壤污染防治行动计划》(简称“《土十条》”)均将严格风险管控作为土壤污染防治的核心要点，突出保障环境安全. 近年来，我国启动了大量的污染场地修复工程，随着工程和管理实践的深入，针对污染场地修复后的土壤和场地再利用的可持续性，需要开展精细化风险管控的相关研究. 基于污染场地再利用的多源案例分析，从多个维度研究我国污染场地土壤修复管控中污染物指标的现状和变化、场地流转与再利用基本特点，并在此基础上提出具有环境管理价值的观点和政策建议. 针对地下水修复的技术不可达性，借鉴美国污染场地地下水修复技术不可达性的涵义、技术不可达性豁免，以及适应性管理、残余风险评估、长期监测管理经验，提出我国地下水修复过程跟踪与再开发利用长期管理技术要求. 通过对修复后重金属和有机污染物污染场地开展现场环境调研监测，结合实验室模拟试验，研究了不同重金属污染物在不同再利用方式下的环境归趋、风险过程、监测及阻控技术. 本专栏的研究工作紧密围绕污染场地修复后土壤与场地安全利用监管主题，开展系统的风险控制方法学研究，提出适宜的管控技术和标准，切实保障我国污染场地的可持续开发利用.
Case Analysis and Environmental Management Significance of Contaminated Site Reuse in China from 2011 to 2021
-
摘要: 及时掌握污染场地修复过程中所关注污染物和修复后再利用土地类型信息对深化建设用地环境管理具有重要意义. 本文基于文献调研和信息公示平台资料查询等途径获取了我国537个污染场地案例信息数据，分析了我国近10年来污染场地修复与再利用的变化情况. 统计分析结果表明：我国537个污染场地中约有66%集中在北京市、上海市、浙江省、江苏省和重庆市等先行地区；从2016年《土壤污染防治行动计划》颁布实施开始，场地修复管控数量增势凸显，2018年污染场地修复管控数量达到峰值；原用地类型归属化学工业、金属制品、冶炼等行业的比例较大，且重金属、苯系物为主的再利用挥发性有机物、多环芳烃类为主的半挥发性有机物和总石油烃是典型污染物；在GB 36600—2018《土壤环境质量 建设用地土壤污染风险管控标准(试行)》实施前后，包含苯系物、多环芳烃类和总石油烃等污染物的出现频次增加趋势最为明显，而有机农药类和多氯联苯(总量)的出现频次有所减少；污染场地用途大部分是敏感用地类型中的居住用地，且这类场地的原行业类型为化学工业、金属制品等特征污染物危害较大的行业. 研究显示，利好政策和标准的颁布与实施促进了我国经济欠发达地区污染场地的修复管控工作，以多环芳烃类为主的半挥发性有机物是我国未来场地土壤环境治理工作的重点，需要进一步提升对再利用类型为敏感用地类型场地的关注.Abstract: It is of great significance to timely grasp the information of concerned pollutants and reused land types after restoration in the process of contaminated site restoration for deepening the environmental management of construction land. In this study, 537 cases of contaminated sites in China were obtained through literature research and data query of the information disclosure platform, and the changes in remediation and reuse of contaminated sites in the past 10 years were analyzed. The statistical analysis results show that about 66% of the contaminated sites were concentrated in pioneering areas such as Beijing City, Shanghai City, Zhejiang Province, Jiangsu Province and Chongqing City. Since the promulgation and implementation of the Action Plan for Soil Pollution Prevention and Control in 2016, the number of contaminated sites has increased significantly. In 2018, the number reached a peak. Chemical industry, metal production, smelting and other industries accounted for a large proportion of the original land types. Heavy metals, benzene series mainly volatile organic compounds, polycyclic aromatic hydrocarbons based semi-volatile organic compounds and total petroleum hydrocarbons were typical pollutants in various industries. Before and after the implementation of Soil Environmental Quality Construction Land Soil Pollution Risk Control Standards (Trial) (GB 36600-2018), the pollution occurrence frequency of benzene series, polycyclic aromatic hydrocarbons and total petroleum hydrocarbons increased obviously, while the occurrence frequency of organic pesticides and polychlorinated biphenyls (total) decreased. The redevelopment and utilization of contaminated sites are mostly residential land in sensitive land types, and the original industry types of such sites are chemical industry, metal products and other industries with more harmful pollutants. The results show that the promulgation and implementation of favorable policies and standards have promoted the remediation and control of contaminated sites in economically underdeveloped areas of China. Semi-volatile organic compounds, mainly polycyclic aromatic hydrocarbons (PAHs), will be the focus of soil remediation in the future. At the same time, the environmental sensitivity of redevelopment of contaminated sites still needs more attention.
-
Key words:
- contaminated site /
- soil reuse /
- pollutant control indicators /
- industry category /
- redevelopment type
-

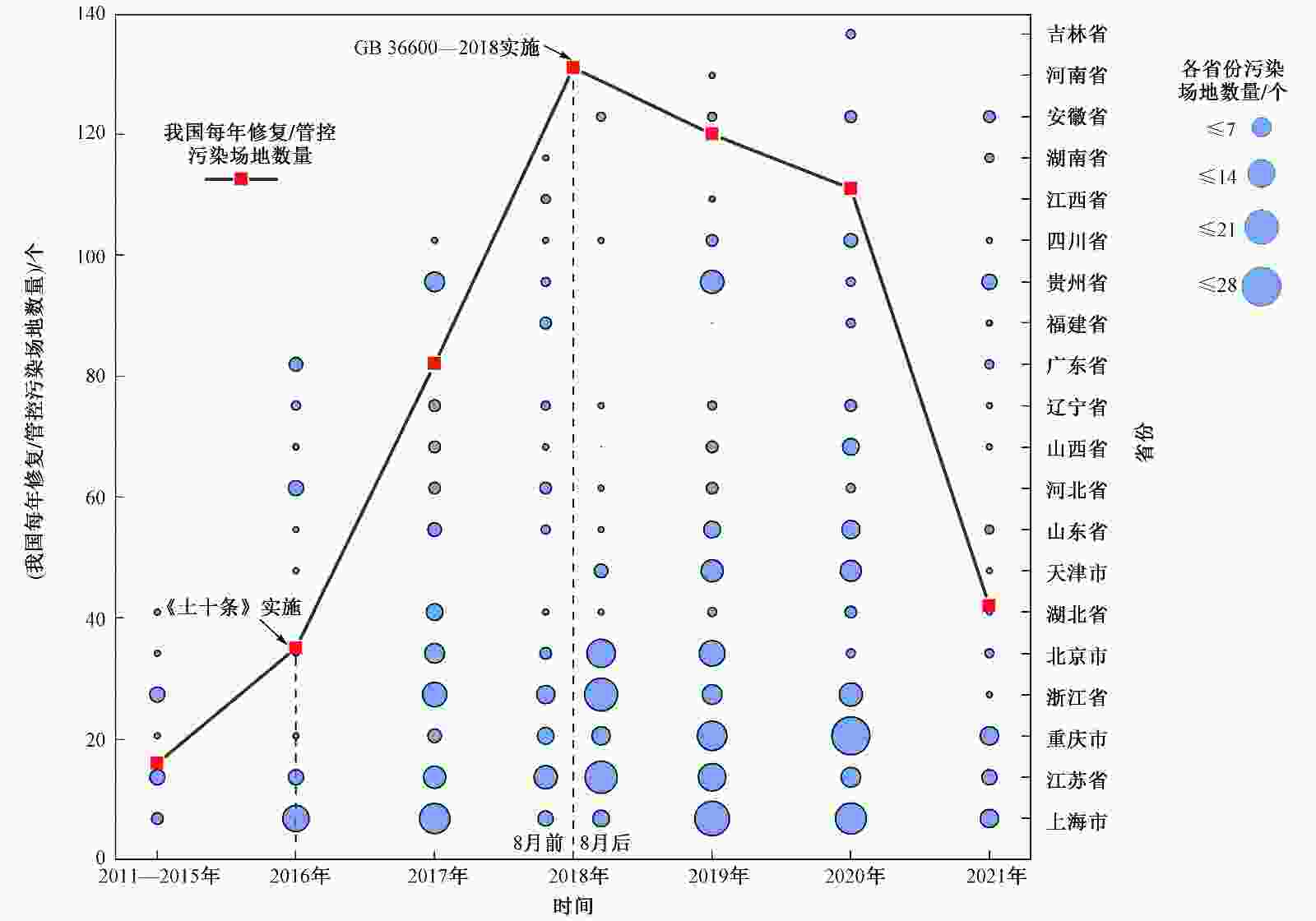

图 1 2011—2021年我国修复/管控污染场地数量、发展趋势及重要利好事件
注：横坐标以GB 36600—2018正式实施日期2018年8月1日为界限，分为8月前和8月后两个阶段；2011—2015年收集到的案例个数较少，故将这5年的案例合并制图.
Figure 1. Number, development trend and key positive events of contaminated sites under restoration/control from 2011 to 2021
图 2 不同行业污染场地特征污染物统计及GB 36600—2018实施前后污染场地修复/管控污染物出现频次分析
注：1)表示污染物清单中的基本项目； 2)表示污染物清单中的其他项目.
Figure 2. Statistics of characteristic pollutants of contaminated sites in different industries and analysis of the frequency of pollutants in contaminated sites remediation/control before and after the implementation of GB 36600—2018
-
[1] 廖晓勇,崇忠义,阎秀兰,等.城市工业污染场地:中国环境修复领域的新课题[J].环境科学,2011,32(3):784-794.LIAO X Y,CHONG Z Y,YAN X L,et al.Urban industrial contaminated sites:a new issue in the field of environmental remediation in China[J].Environmental Science,2011,32(3):784-794. [2] FJORDBØGE A S,RIIS C,CHRISTENSEN A G,et al.ZVI-clay remediation of a chlorinated solvent source zone,Skuldelev,Denmark:1.site description and contaminant source mass reduction[J].Journal of Contaminant Hydrology,2012,140/141:56-66. doi: 10.1016/j.jconhyd.2012.08.007 [3] 陈能场,郑煜基,何晓峰,等.《全国土壤污染状况调查公报》探析[J].农业环境科学学报,2017,36(9):1689-1692. doi: 10.11654/jaes.2017-1220CHEN N C,ZHENG Y J,HE X F,et al.Analysis of the Report on the national general survey of soil contamination[J].Journal of Agro-Environment Science,2017,36(9):1689-1692. doi: 10.11654/jaes.2017-1220 [4] MA Y L,STUBBINGS W A,CLINE-COLE R,et al.Human exposure to halogenated and organophosphate flame retardants through informal e-waste handling activities:a critical review[J].Environmental Pollution,2021,268:115727. doi: 10.1016/j.envpol.2020.115727 [5] 潘思涵,宋易南,汪军,等.耦合健康风险与生命周期评价的场地修复环境经济影响评估[J].环境科学学报,2021,41(10):4306-4314.PAN S H,SONG Y N,WANG J,et al.Coupling health risk assessment and life cycle assessment for environmental and economic impact assessment of site remediation[J].Acta Scientiae Circumstantiae,2021,41(10):4306-4314. [6] REN W X,GENG Y,MA Z X,et al.Reconsidering brownfield redevelopment strategy in China's old industrial zone:a health risk assessment of heavy metal contamination[J].Environmental Science and Pollution Research,2015,22(4):2765-2775. doi: 10.1007/s11356-014-3548-6 [7] 韦朝海,杨波.有毒化学品的污染评价与控制技术[J].环境科学与技术,2002,25(2):45-47. doi: 10.3969/j.issn.1003-6504.2002.02.018WEI C H,YANG B.Toxic chemicals pollution:its assessment and control technology[J].Environmental Science & Technology (China),2002,25(2):45-47. doi: 10.3969/j.issn.1003-6504.2002.02.018 [8] TERYTZE K,KÖRDEL W,ALDAG R,et al.Detection and determination limits of priority organic pollutants in soil[J].Chemosphere,1995,31(4):3051-3083. doi: 10.1016/0045-6535(95)00166-6 [9] LI X N,JIAO W T,XIAO R B,et al.Contaminated sites in China:countermeasures of provincial governments[J].Journal of Cleaner Production,2017,147:485-496. doi: 10.1016/j.jclepro.2017.01.107 [10] RAJENDRAN S,PRIYA T A K,KHOO K S,et al.A critical review on various remediation approaches for heavy metal contaminants removal from contaminated soils[J].Chemosphere,2022,287:132369. doi: 10.1016/j.chemosphere.2021.132369 [11] BOJES H K,POPE P G.Characterization of EPA's 16 priority pollutant polycyclic aromatic hydrocarbons (PAHs) in tank bottom solids and associated contaminated soils at oil exploration and production sites in Texas[J].Regulatory Toxicology and Pharmacology,2007,47(3):288-295. doi: 10.1016/j.yrtph.2006.11.007 [12] ZHAO F J,MA Y B,ZHU Y G,et al.Soil contamination in China:current status and mitigation strategies[J].Environmental Science & Technology,2015,49(2):750-759. [13] LU Y L,SONG S,WANG R S,et al.Impacts of soil and water pollution on food safety and health risks in China[J].Environment International,2015,77:5-15. doi: 10.1016/j.envint.2014.12.010 [14] CHEN D J,LIU R R,LIN Q H,et al.Volatile organic compounds in an e-waste dismantling region:from spatial-seasonal variation to human health impact[J].Chemosphere,2021,275:130022. doi: 10.1016/j.chemosphere.2021.130022 [15] LI N,JIANG Q,WANG F S,et al.Emission behavior,environmental impact and priority-controlled pollutants assessment of volatile organic compounds (VOCs) during asphalt pavement construction based on laboratory experiment[J].Journal of Hazardous Materials,2020,398:122904. doi: 10.1016/j.jhazmat.2020.122904 [16] 陈展,吴育林,张刚.上海市某大型再开发场地土壤重金属污染特征、评价及来源分析[J].水土保持通报,2021,41(1):227-236.CHEN Z,WU Y L,ZHANG G.Pollution characteristics,assessment,and source analysis of soil heavy metals in large-scale redevelopment site in Shanghai City[J].Bulletin of Soil and Water Conservation,2021,41(1):227-236. [17] 沈城,刘馥雯,吴健,等.再开发利用工业场地土壤重金属含量分布及生态风险[J].环境科学,2020,41(11):5125-5132.SHEN C,LIU F W,WU J,et al.Distribution and ecological risk of heavy metals in the soil of redevelopment industrial sites[J].Environmental Science,2020,41(11):5125-5132. [18] 中华人民共和国国务院.国务院关于印发土壤污染防治行动计划的通知(国发[2016]31号)[R].北京:国务院,2016. [19] 生态环境部,国家市场监督管理总局.土壤环境质量 建设用地土壤污染风险管控标准:GB 36600—2018[S].北京:中国标准出版社,2018. [20] 王艳伟,李书鹏,康绍果,等.中国工业污染场地修复发展状况分析[J].环境工程,2017,35(10):175-178.WANG Y W,LI S P,KANG S G,et al.Analysis on development status of industrial contaminated sites remediation in China[J].Environmental Engineering,2017,35(10):175-178. [21] O'BRIEN R M,PHELAN T J,SMITH N M,et al.Remediation in developing countries:a review of previously implemented projects and analysis of stakeholder participation efforts[J].Critical Reviews in Environmental Science and Technology,2021,51(12):1259-1280. doi: 10.1080/10643389.2020.1755203 [22] 逯雨,李义连,杨森,等.基于J&E/AAM模型的污染场地VOCs风险防控[J].环境科学研究,2018,31(5):868-877.LU Y,LI Y L,YANG S,et al.Risk control of VOCs contaminated sites based on J & E/AAM model[J].Research of Environmental Sciences,2018,31(5):868-877. [23] BI X Y,FENG X B,YANG Y G,et al.Environmental contamination of heavy metals from zinc smelting areas in Hezhang County,western Guizhou,China[J].Environment International,2006,32(7):883-890. doi: 10.1016/j.envint.2006.05.010 [24] 顾睿,舒艳,刘一帆,等.有色金属冶炼企业建设项目土壤环评分析与展望[J].环境影响评价,2015,37(3):65-69.GU R,SHU Y,LIU Y F,et al.Problems and prospects of soil environmental impact assessment for nonferrous metal smelting projects[J].Environmental Impact Assessment,2015,37(3):65-69. [25] 陈志良,雷国建,周建民,等.典型氯碱污染场地环境风险评价[J].环境工程学报,2014,8(6):2579-2584.CHEN Z L,LEI G J,ZHOU J M,et al.Environmental risk assessment in a typical chlor-alkalicontaminated site[J].Chinese Journal of Environmental Engineering,2014,8(6):2579-2584. [26] 邓一荣,陆海建,董敏刚,等.粤港澳大湾区典型化工场地苯系物污染特征及迁移规律[J].环境科学,2019,40(12):5615-5622.DENG Y R,LU H J,DONG M G,et al.Pollution characteristics and migration of BTEX at a chemical contaminated site in the Guangdong-Hong Kong-Macau Greater Bay Area[J].Environmental Science,2019,40(12):5615-5622. [27] XIAO Q,ZONG Y T,LU S G.Assessment of heavy metal pollution and human health risk in urban soils of steel industrial city (Anshan),Liaoning,northeast China[J].Ecotoxicology and Environmental Safety,2015,120:377-385. doi: 10.1016/j.ecoenv.2015.06.019 [28] 罗帅,马新月,王东,等.重庆市场地土壤污染特征分析及行业来源识别[J].生态环境学报,2020,29(4):810-818.LUO S,MA X Y,WANG D,et al.Analysis of soil pollution characteristics and identification of industry sources in contaminated sites in Chongqing City,China[J].Ecology and Environmental Sciences,2020,29(4):810-818. [29] 袁永强,刘丛强.广西某地金属冶炼废水外溢对农田土壤的污染特征[J].环境科学,2011,32(11):3312-3317.YUAN Y Q,LIU C Q.Pollution of agricultural soils by a wastewater outflow from a metal smelter in Guangxi Zhuang Autonomous Region[J].Environmental Science,2011,32(11):3312-3317. [30] 葛锋,张转霞,扶恒,等.我国有机污染场地现状分析及展望[J].土壤,2021,53(6):1132-1141.GE F,ZHANG Z X,FU H,et al.Distribution of organic contaminated sites in China:statu quo and prospect[J].Soils,2021,53(6):1132-1141. [31] FISHBEIN L.An overview of environmental and toxicological aspects of aromatic hydrocarbons. IV:ethylbenzene[J].Science of the Total Environment,1985,44(3):269-287. doi: 10.1016/0048-9697(85)90100-7 [32] 谭冰,王铁宇,李奇锋,等.农药企业场地土壤中苯系物污染风险及管理对策[J].环境科学,2014,35(6):2272-2280.TAN B,WANG T Y,LI Q F,et al.Risk assessment and countermeasures of BTEX contamination in soils of typical pesticide factory[J].Environmental Science,2014,35(6):2272-2280. [33] HUANG B B,LEI C,WEI C H,et al.Chlorinated volatile organic compounds (Cl-VOCs) in environment:sources,potential human health impacts,and current remediation technologies[J].Environment International,2014,71:118-138. doi: 10.1016/j.envint.2014.06.013 [34] ORAM D E,ASHFOLD M J,LAUBE J C,et al.A growing threat to the ozone layer from short-lived anthropogenic chlorocarbons[J].Atmospheric Chemistry and Physics,2017,17(19):11929-11941. doi: 10.5194/acp-17-11929-2017 [35] TANG J C,WANG M,WANG F,et al.Eco-toxicity of petroleum hydrocarbon contaminated soil[J].Journal of Environmental Sciences,2011,23(5):845-851. doi: 10.1016/S1001-0742(10)60517-7 [36] 谭海剑,黄祖照,宋清梅,等.粤港澳大湾区典型城市遗留地块土壤污染特征研究[J].环境科学研究,2021,34(4):976-986.TAN H J,HUANG Z Z,SONG Q M,et al.Characterization of soil contaminations in brownfield sites in a typical city in Guangdong-Hong Kong-Macao Greater Bay Area[J].Research of Environmental Sciences,2021,34(4):976-986. [37] 谢武明,胡勇有,刘焕彬,等.持久性有机污染物(POPs)的环境问题与研究进展[J].中国环境监测,2004,20(2):58-61. doi: 10.3969/j.issn.1002-6002.2004.02.021XIE W M,HU Y Y,LIU H B,et al.Environmental issue and study progress of persistent organic pollutants (POPs)[J].Environmental Monitoring in China,2004,20(2):58-61. doi: 10.3969/j.issn.1002-6002.2004.02.021 [38] SARKER A,NANDI R,KIM J E,et al.Remediation of chemical pesticides from contaminated sites through potential microorganisms and their functional enzymes:prospects and challenges[J].Environmental Technology & Innovation,2021,23:101777. [39] 丛鑫,朱书全,薛南冬,等.有机氯农药企业搬迁遗留场地土壤中污染物的垂向分布特征[J].环境科学研究,2009,22(3):351-355.CONG X,ZHU S Q,XUE N D,et al.Vertical distribution of pollutants in soils of a former organochlorine pesticide manufacturing field[J].Research of Environmental Sciences,2009,22(3):351-355. [40] 高胜达.农药污染场地修复亟须加快[J].化工管理,2013(3):53-54. doi: 10.3969/j.issn.1008-4800.2013.03.017 [41] 洪俊,徐君君,李锦,等.鼠李糖脂洗脱氯丹和灭蚁灵污染场地土壤的工艺参数[J].环境工程学报,2014,8(6):2592-2596.HONG J,XU J J,LI J,et al.Optimum parameters of rhamnolipid-washing for soils contaminated by chlordane and mirex[J].Chinese Journal of Environmental Engineering,2014,8(6):2592-2596. [42] FANG Y Y,NIE Z Q,DIE Q Q,et al.Organochlorine pesticides in soil,air,and vegetation at and around a contaminated site in southwestern China:concentration,transmission,and risk evaluation[J].Chemosphere,2017,178:340-349. doi: 10.1016/j.chemosphere.2017.02.151 [43] 任加国,龚克,马福俊,等.基于BP神经网络的污染场地土壤重金属和PAHs含量预测[J].环境科学研究,2021,34(9):2237-2247.REN J G,GONG K,MA F J,et al.Prediction of heavy metal and PAHs content in polluted soil based on BP neural network[J].Research of Environmental Sciences,2021,34(9):2237-2247. [44] HUANG J H,GUO S T,ZENG G M,et al.A new exploration of health risk assessment quantification from sources of soil heavy metals under different land use[J].Environmental Pollution,2018,243:49-58. [45] 王硕,魏文侠,李佳斌,等.某钢铁厂土壤中多环芳烃污染评价与风险评估[J].环境工程技术学报,2019,9(4):447-452. doi: 10.12153/j.issn.1674-991X.2019.01.220WANG S,WEI W X,LI J B,et al.Evaluation and risk assessment of polycyclic aromatic hydrocarbons in soil of a steel plant[J].Journal of Environmental Engineering Technology,2019,9(4):447-452. doi: 10.12153/j.issn.1674-991X.2019.01.220 [46] ARMISTEAD S J,RAWLINGS A E,SMITH C C,et al.Biopolymer stabilization/solidification of soils:a rapid,micro-macro,cross-disciplinary approach[J].Environmental Science & Technology,2020,54(21):13963-13972. [47] VISENTIN C,da SILVA TRENTIN A W,BRAUN A B,et al.Application of life cycle assessment as a tool for evaluating the sustainability of contaminated sites remediation:a systematic and bibliographic analysis[J].Science of the Total Environment,2019,672:893-905. doi: 10.1016/j.scitotenv.2019.04.034 -
