地下水修复的技术不可达性及美国管理对策对我国的启示

张丽娜; 姜林; 贾晓洋; 夏天翔; 梁竞; 朱笑盈; 刘文晓

doi:10.13198/j.issn.1001-6929.2022.02.14

地下水修复的技术不可达性及美国管理对策对我国的启示

doi: 10.13198/j.issn.1001-6929.2022.02.14

张丽娜^{1, 2, 3,},
姜林^{1, 2, 3, ,},
贾晓洋^{1, 2, 3},
夏天翔^{1, 2, 3},
梁竞^{1, 2, 3},
朱笑盈^{1, 2, 3},
刘文晓^{1, 2, 3}

1.
北京市生态环境保护科学研究院，北京　100037
2.
国家城市环境污染控制工程技术研究中心，北京　100037
3.
污染场地风险模拟与修复北京市重点实验室，北京　100037

基金项目: 国家重点研发计划项目(No.2018YFC1801401, 2020YFC1807502)

详细信息

作者简介:
张丽娜（1982-），女，河南焦作人，副研究员，硕士，主要从事土壤和地下水污染防治研究，zhln2011@163.com

通讯作者:
姜林(1964-)，男，浙江长兴人，研究员，博士，主要从事污染场地调查评估、风险评估与修复技术研究，jianglin@cee.cn

中图分类号: X523
计量
- 文章访问数: 638
- HTML全文浏览量: 259
- PDF下载量: 147
- 被引次数: 0
出版历程
- 收稿日期: 2021-10-30
- 修回日期: 2022-01-06
- 网络出版日期: 2022-05-17

Technical Impracticability of Groundwater Remediation and Management Countermeasures in the USA and Lessons Learned for China

ZHANG Lina^{1, 2, 3
,},
JIANG Lin^{1, 2, 3
, ,},
JIA Xiaoyang^{1, 2, 3},
XIA Tianxiang^{1, 2, 3},
LIANG Jing^{1, 2, 3},
ZHU Xiaoying^{1, 2, 3},
LIU Wenxiao^{1, 2, 3}

1.
Beijing Municipal Research Institute of Eco-Environmental Protection, Beijing 100037, China
2.
National Engineering Research Centre for Urban Environmental Pollution Control, Beijing 100037, China
3.
Beijing Key Laboratory for Risk Modeling and Remediation of Contaminated Sites, Beijing 100037, China

Funds: National Key Research and Development Program of China (No.2018YFC1801401, 2020YFC1807502)

摘要

摘要: 由于地下水文地质条件的非均质性、污染物环境行为的多样性、修复技术应用的局限性等原因，地下水修复过程存在较大的不确定性，导致出现修复时间和资源的消耗与修复预期不匹配等问题，对地下水修复效果评估和场地再开发利用带来压力. 美国提出了地下水修复技术不可达性的概念，推行了技术不可达豁免政策，将技术不可达评估纳入地下水修复管理程序中，并提出适应性管理、低风险结案、长期监测等一系列管理要求，以保障场地修复后的健康风险和环境风险. 我国尚未建立技术不可达情景的应对措施和技术体系，在复杂污染场地地下水修复中仍存在修复目标、修复周期、修复效果评估周期等各方面的挑战. 本文围绕地下水修复的技术不可达性，借鉴美国污染场地管理经验，提出了修复技术不可达情景下的应对策略，包括建立修复过程跟踪管理技术体系、适时开展残留污染物风险评估、严格落实污染场地后期管理等建议，以期为保障修复后场地再开发安全利用提供理论依据和技术支撑.
- 污染场地 /
- 地下水修复 /
- 技术不可达性 /
- 适应性管理 /
- 低风险结案
Abstract: Contaminated groundwater in many places is usually very difficult to remediate and has become a serious environmental problem in China. The heterogeneity of hydrogeological conditions, complexity of contaminant behavior, and limitations of remediation technologies require long-term remediation time frames and significant resource consumption, thus hindering the redevelopment and utilization of those contaminated sites. To cope with this issue, the US EPA proposed the concept of technical impracticability, which is determined based on site-specific characterization and remediation performance data. Furthermore, the ITRC proposed an adaptive management framework for dynamically refining the conceptual site model, setting up site objectives, and developing interim objectives and adaptive remedial strategies. Similarly, low-risk site closure is implemented on the site that is not completely cleaned up but actually poses minimum risk to human health and the environment. All of them need long-term management. China has not yet established countermeasures for technology impracticability, and there are still challenges in the remediation of complex contaminated ground water. Based on the lessons learned from the USA, we recommend the following strategies for groundwater remediation in China: establish a technical system for tracking the remediation process; carry out risk assessment of residual pollutants, and implement the long-term management of contaminated sites. The proposed management framework and tools will provide scientific support for the redevelopment of contaminated land in China.
- contaminated site /
- groundwater remediation /
- technology impracticability /
- adaptive management /
- low-risk site closure

HTML全文

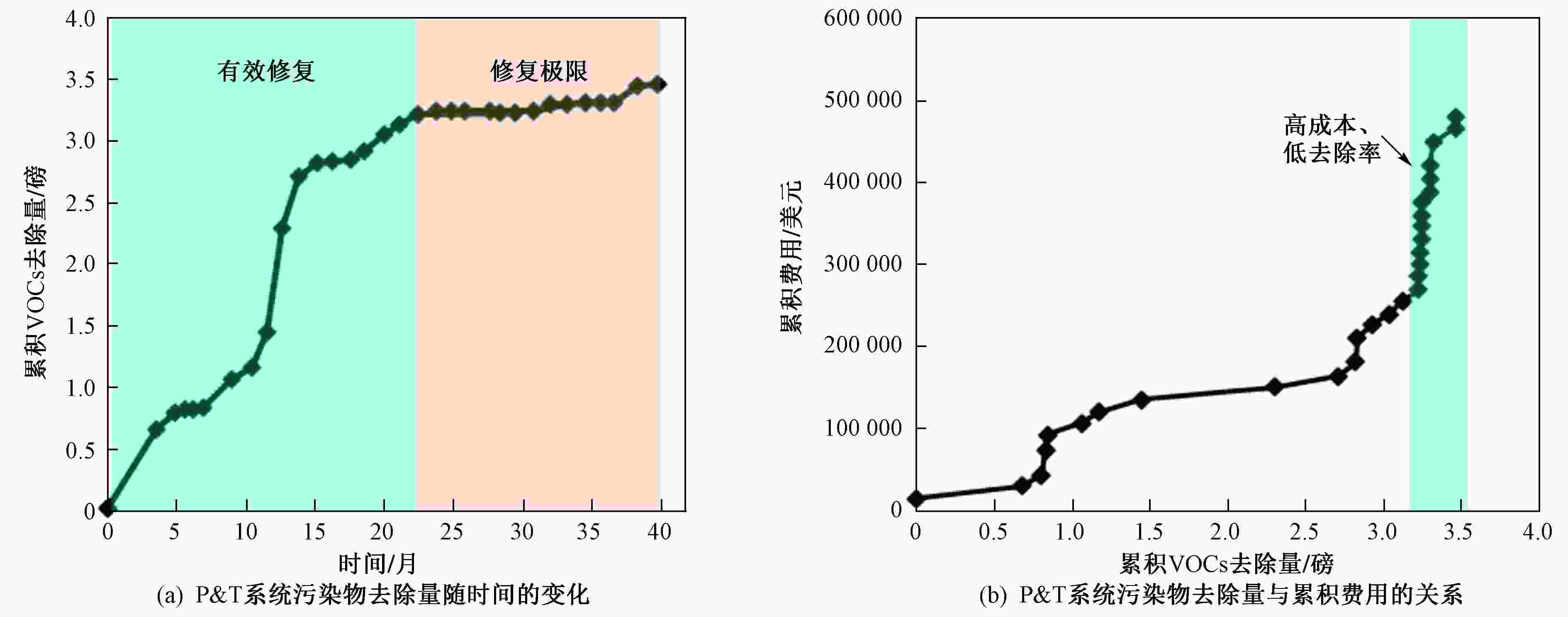

图 1 美国案例场地地下水P&T修复系统污染物去除量与运行时间和费用的关系^[11]

Figure 1. Cumulative mass recovered versus time and costs of VOCs removed for the pump-and-treat system at case site in the USA^[11]

下载: 全尺寸图片幻灯片

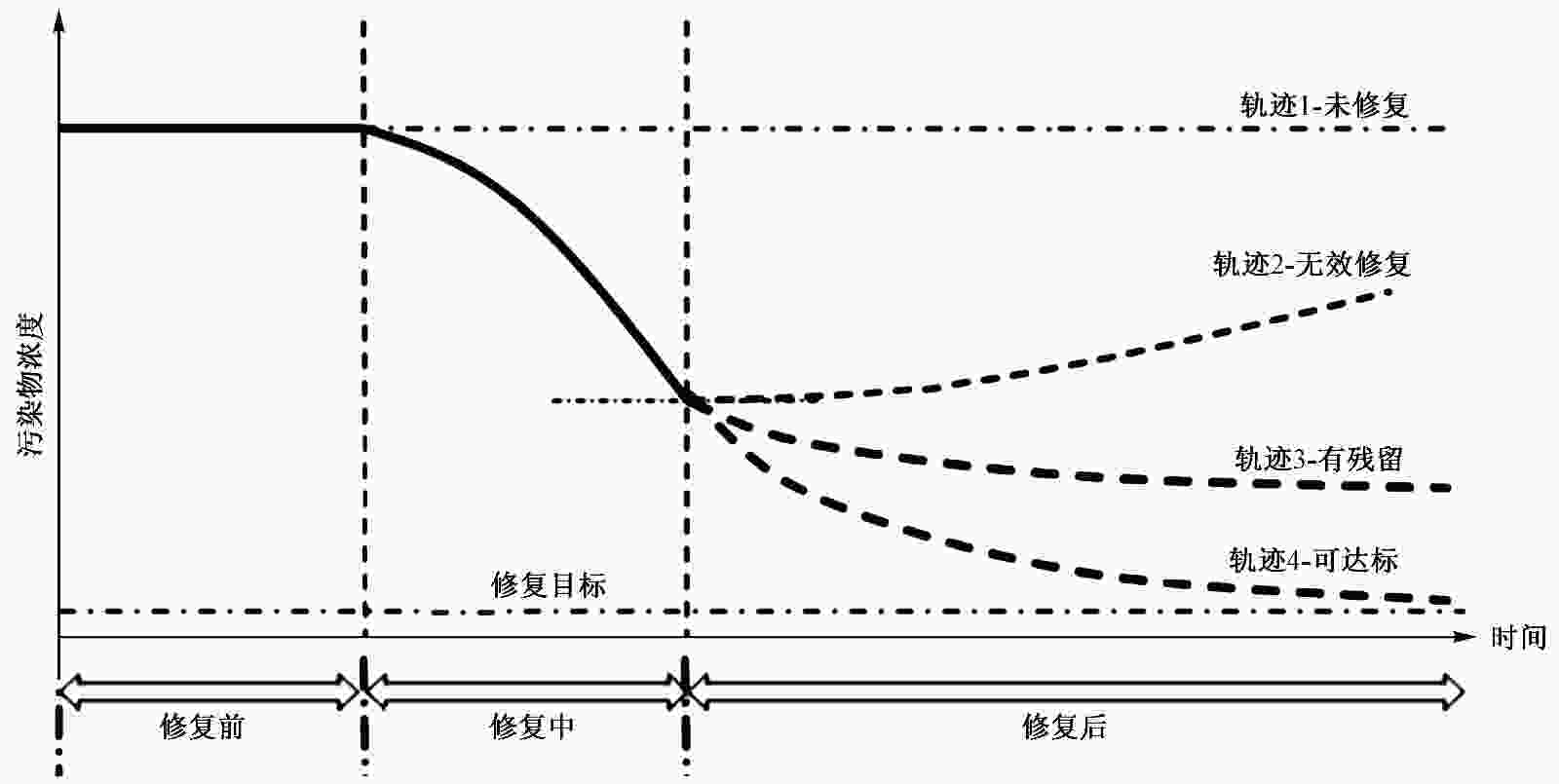

图 2 地下水修复轨迹示意^[17]

注：y轴表征修复效果的变量，如污染物浓度.

Figure 2. Schematic of possible remediation trajectories for plume behavior^[17]

下载: 全尺寸图片幻灯片

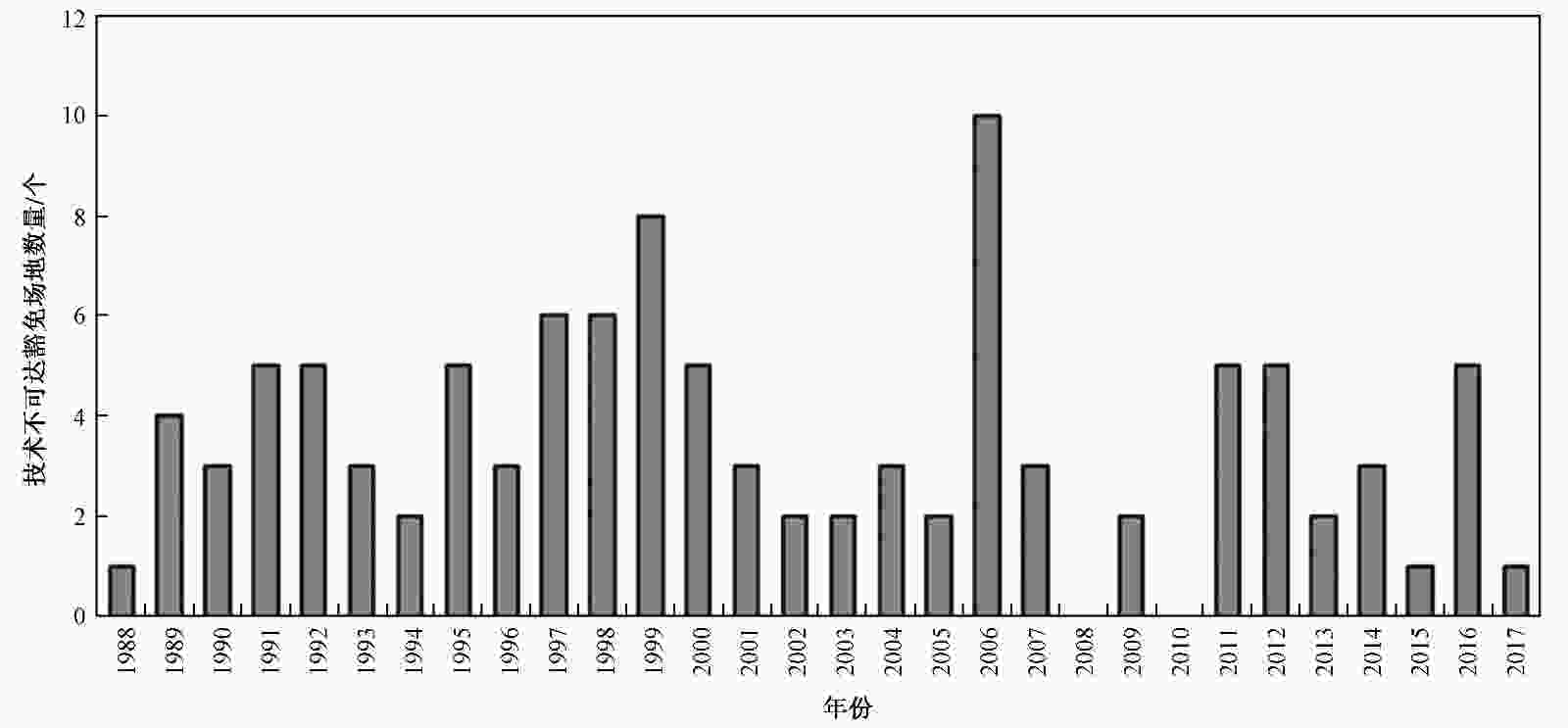

图 3 美国超级基金场地各财年技术不可达豁免场地数量(1988—2017年)

Figure 3. Groundwater TI Waivers per Fiscal Year of EPA' Superfund from 1988 to 2017 in the USA

下载: 全尺寸图片幻灯片

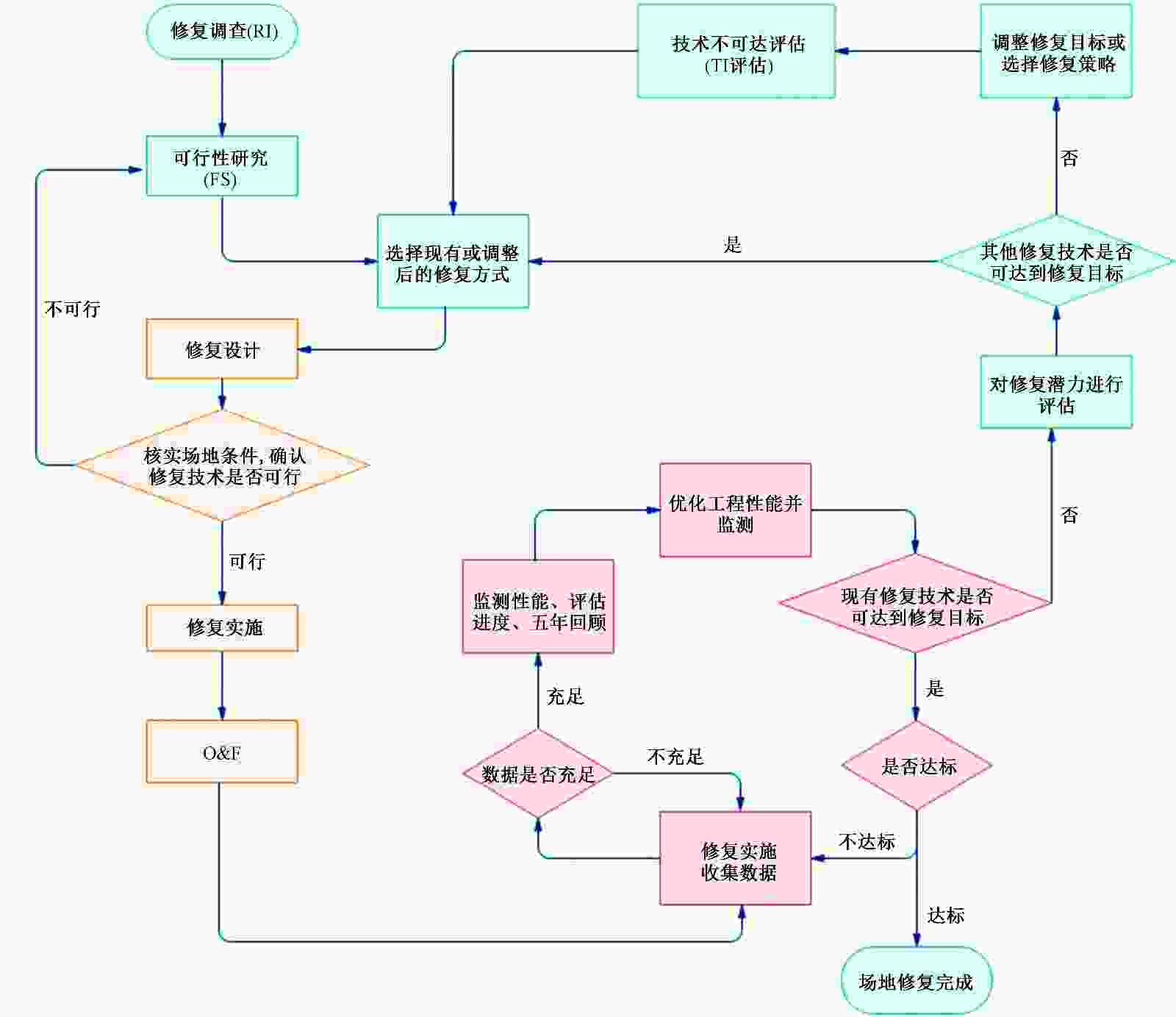

图 4 美国超级基金场地地下水修复路线^[25]

Figure 4. Recommended process for restoring contaminated groundwater at Superfund site in the USA^[25]

下载: 全尺寸图片幻灯片

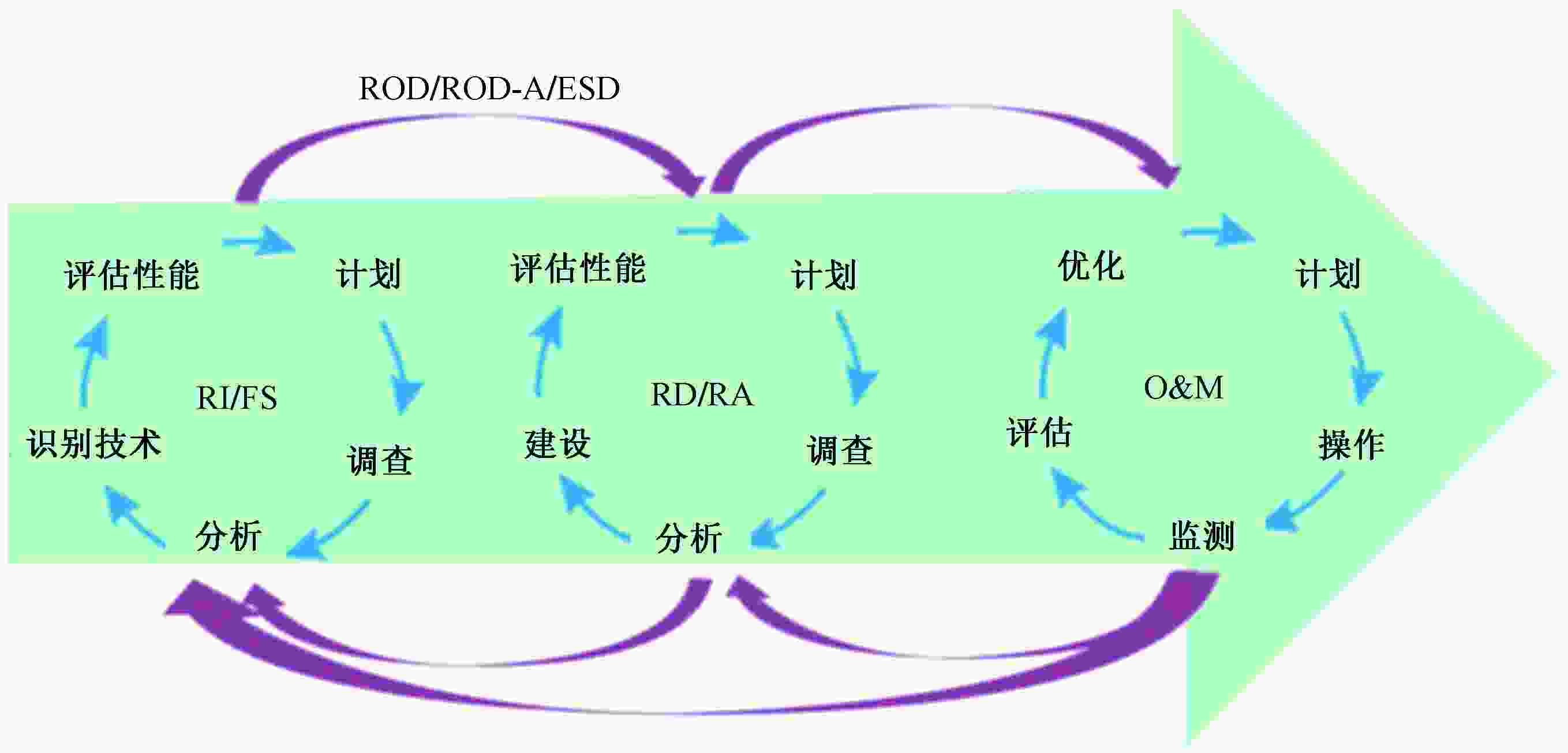

图 5 适应性管理在美国超级基金场地管理中的作用^[30]

注：ROD—records of decision，决策记录； RD/RA—remedial design/remedial action，修复设计/修复实施；ROD-A—record of decision amendment，决策记录修正； O&M—operation and maintenance，操作和维护；RI/FS—remedial investigation/feasibility study，修复调查/可行性研究； ESD—explanation of significant differences，重大变化解释.

Figure 5. Superfund remedial site management mentality under AM in the USA^[30]

下载: 全尺寸图片幻灯片

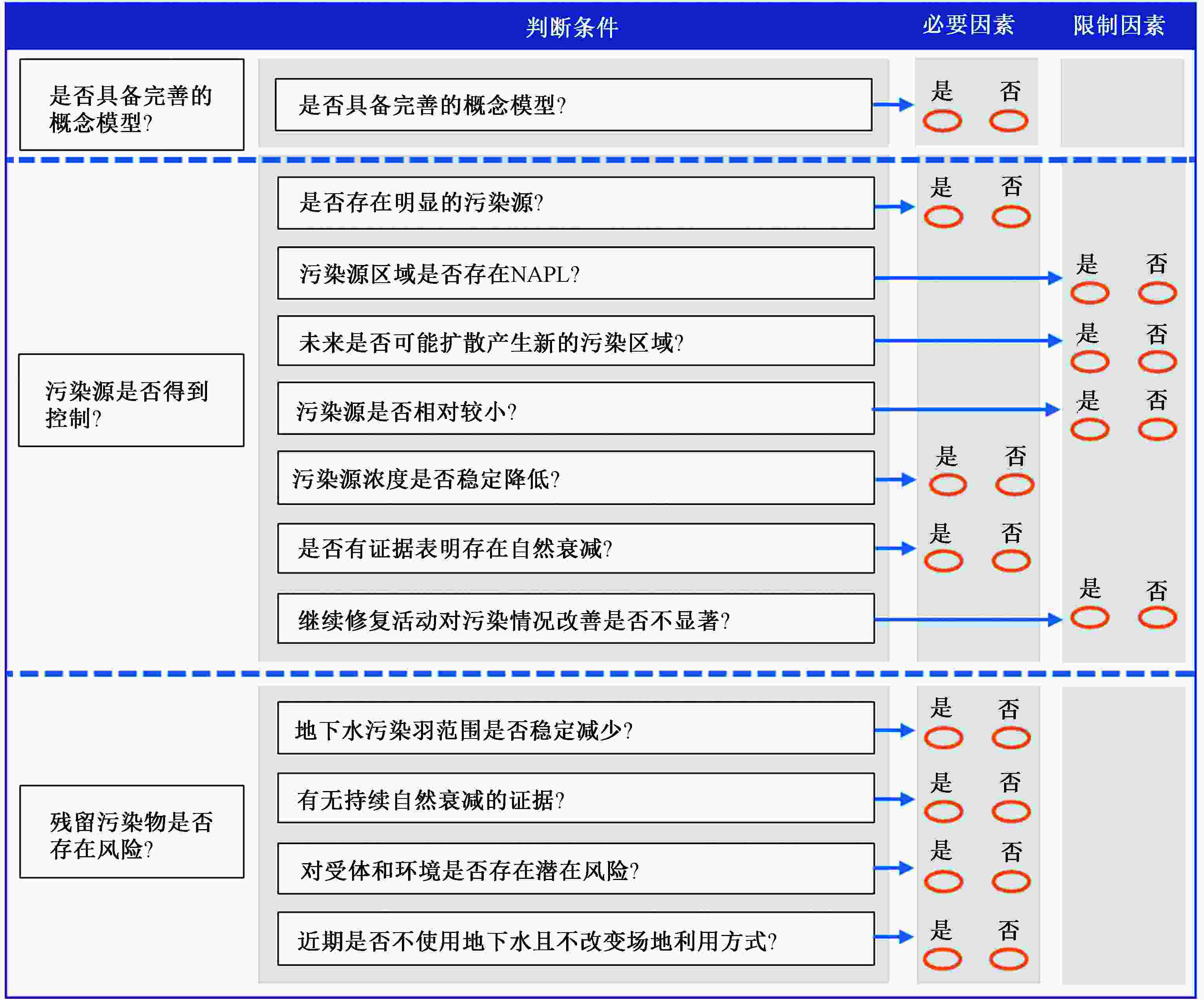

图 6 低风险结案判断逻辑程序^[23]

Figure 6. Low-risk site closure manual decision logic flow chart^[23]

下载: 全尺寸图片幻灯片

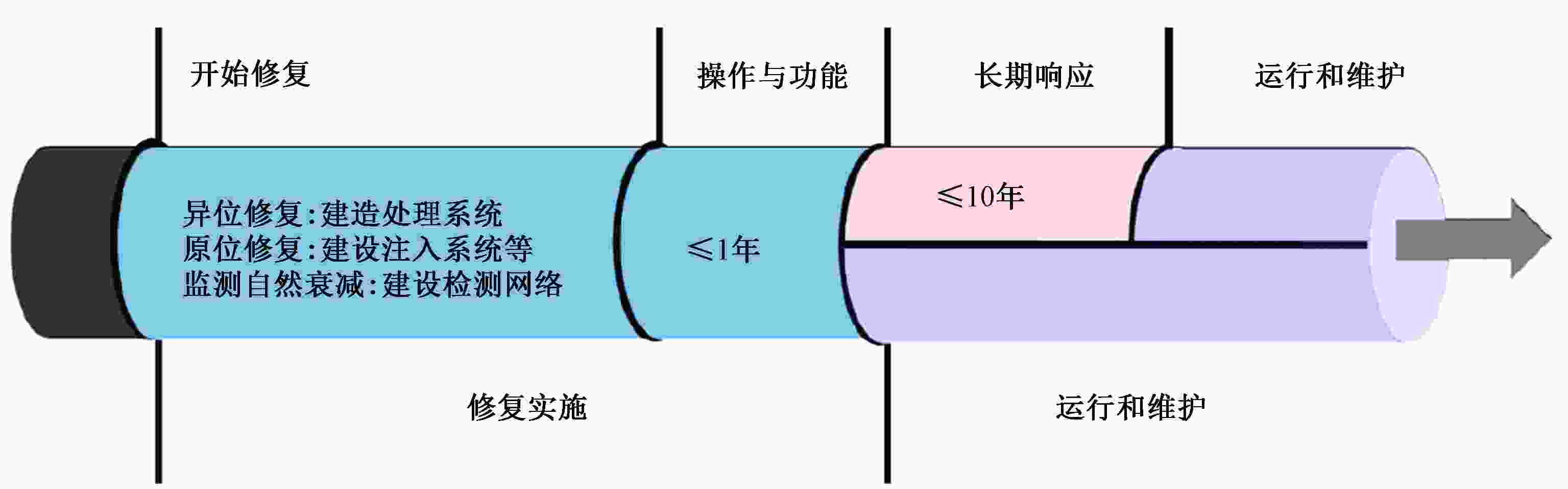

图 7 超级基金地下水修复长期管理阶段示意^[31]

Figure 7. Superfund groundwater remediation timeline^[31]

下载: 全尺寸图片幻灯片

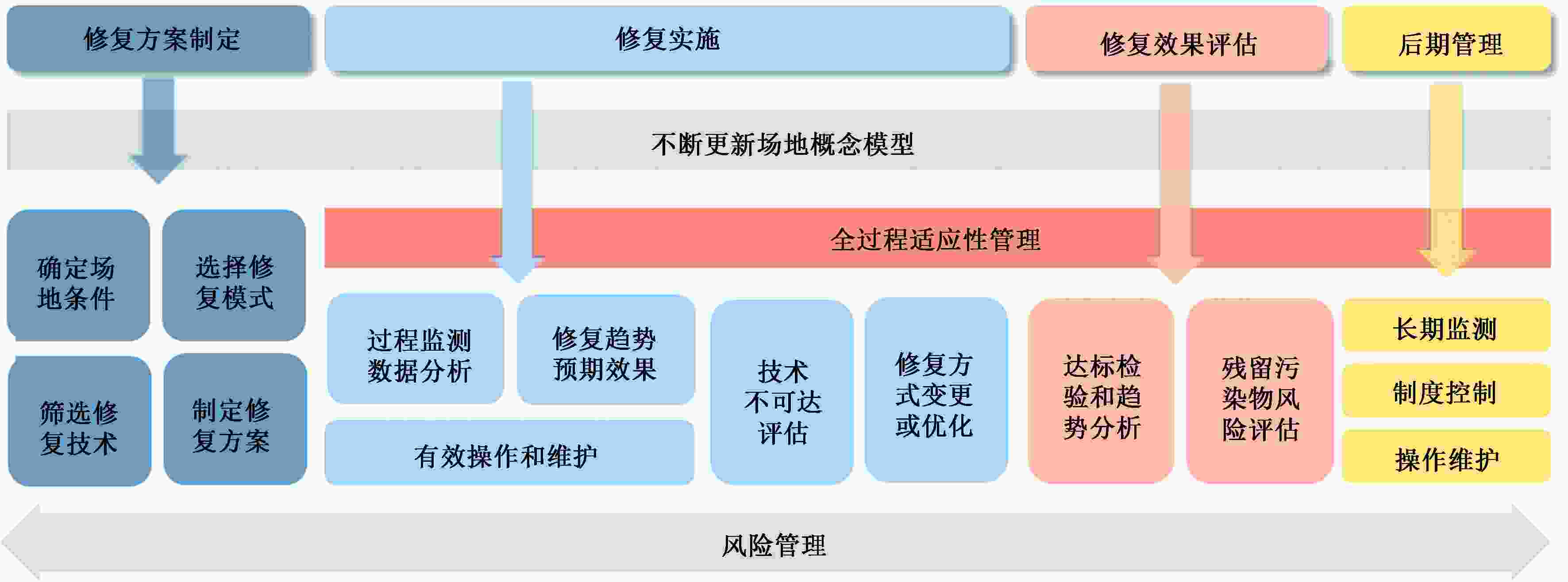

图 8 地下水修复全过程跟踪管理技术框架

Figure 8. Technical framework for whole-process tracking management of groundwater remediation

下载: 全尺寸图片幻灯片

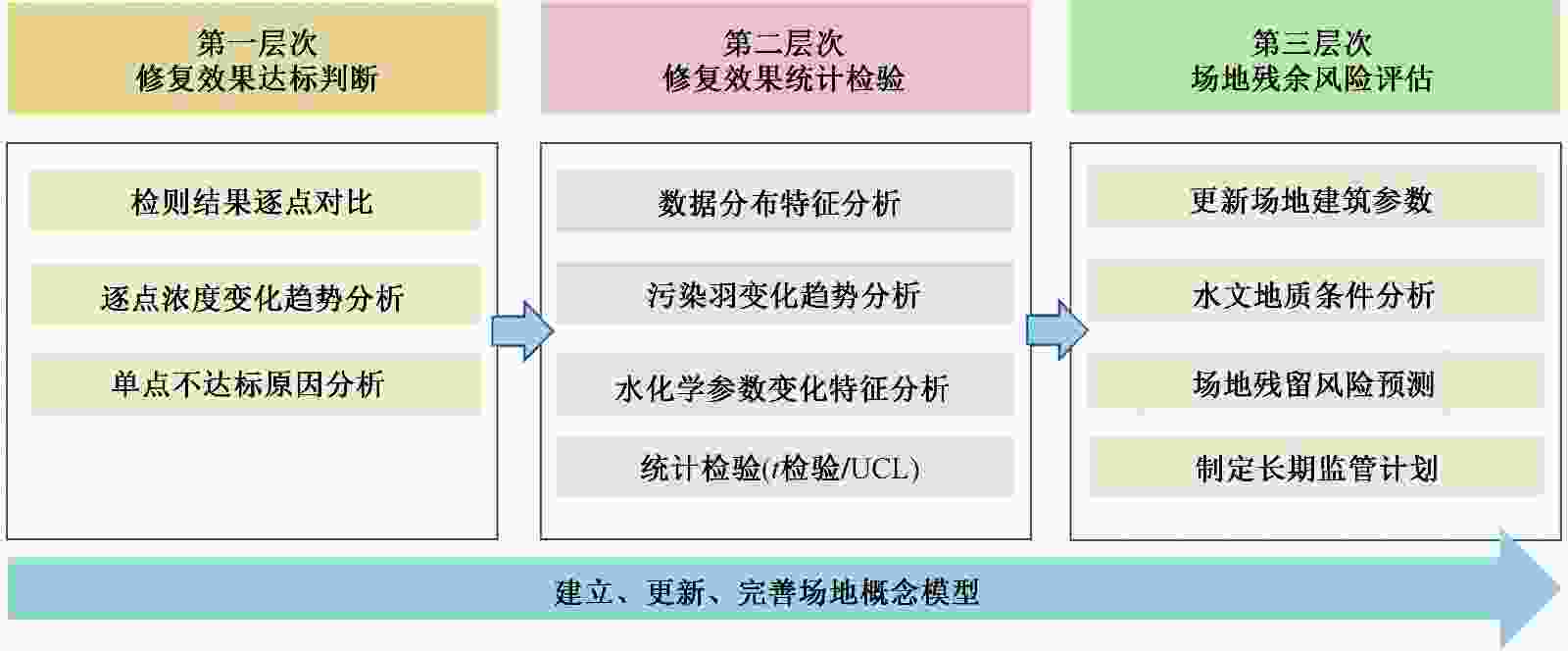

图 9 国内某场地多层次修复效果评估路线

Figure 9. Road map of multi-level remediation results verification for a certain site in China

下载: 全尺寸图片幻灯片
