Determination of Hexabromocyclododecane and Tetrabromobisphenol A in Soil and Sediment by High Performance Liquid Chromatography-Triple Quadrupole Mass Spectrometry
-
摘要: 为服务我国履行《关于持久性有机污染物的斯德哥尔摩公约》和新污染物监测的需要，建立了同步分析土壤和沉积物中3种六溴环十二烷(HBCDs)异构体和四溴双酚A (TBBPA)的高效液相色谱-三重四极杆质谱法. 样品经冷冻干燥，以正己烷与丙酮(体积比为1∶1)为提取溶剂进行加压流体提取，通过中性和酸性复合硅胶柱的净化处理，洗脱液转溶至甲醇后进行仪器分析，用同位素稀释内标法定量. 结果表明：①目标物在液相色谱上得到有效的基线分离，保留时间稳定，相对偏差小于3.0%，在2.0~200 ng/mL范围内标准曲线的平均相对响应因子的相对标准偏差小于15%. ②α-HBCD、β-HBCD、γ-HBCD和TBBPA的方法检出限分别为0.06、0.04、0.04和0.06 μg/kg. ③石英砂、背景土壤、工业土壤、河流沉积物和海洋沉积物的低中高浓度平行添加试验显示，方法的精密度为1.76%~10.6%，加标回收率为92.9%~121%. ④8种不同pH的土壤中目标物的加标回收率范围为85.9%~104%. 本研究建立的方法灵敏度高、适用性好，能够用于复杂土壤和沉积物样品中HBCDs和TBBPA的分析测试.
-
关键词:
- 土壤 /
- 沉积物 /
- 六溴环十二烷(HBCDs) /
- 四溴双酚A (TBBPA) /
- 高效液相色谱-三重四极杆质谱
Abstract: A high performance liquid chromatography-triple quadrupole mass spectrometry method was developed to determine three hexabromocyclododecane (HBCD) isomers and tetrabromobisphenol A (TBBPA) in soil and sediment, for the needs of the Stockholm Convention on Persistent Organic Pollutants and new pollutants control in China. Samples were freeze-dried, extracted by pressurized fluid with n-hexane and acetone (volume ratio, 1∶1), and then cleaned up with neutral and acidic silica gel columns. They were quantitated by instrumental analysis using isotope dilution method. The results showed that: (1) Effective baseline separation was achieved by liquid chromatography, and the retention time was stable with relative deviation less than 3.0%. The relative standard deviation of the average relative response factor was less than 15% in the concentration range of 2.0-200 ng/mL. (2) The detection limits for α-HBCD, β-HBCD, γ-HBCD and TBBPA were 0.06, 0.04, 0.04 and 0.06 μg/kg, respectively. (3) The precision of the method was 1.76%-10.6%, and the recovery was 92.9%-121%. (4) Spiking experiments were carried out on eight soil types with different pH value. The recovery ranged from 85.9% to 104%. The established method has demonstrated high sensitivity and high applicability, and can be used for the determination of HBCDs and TBBPA in complex soil and sediment samples. -

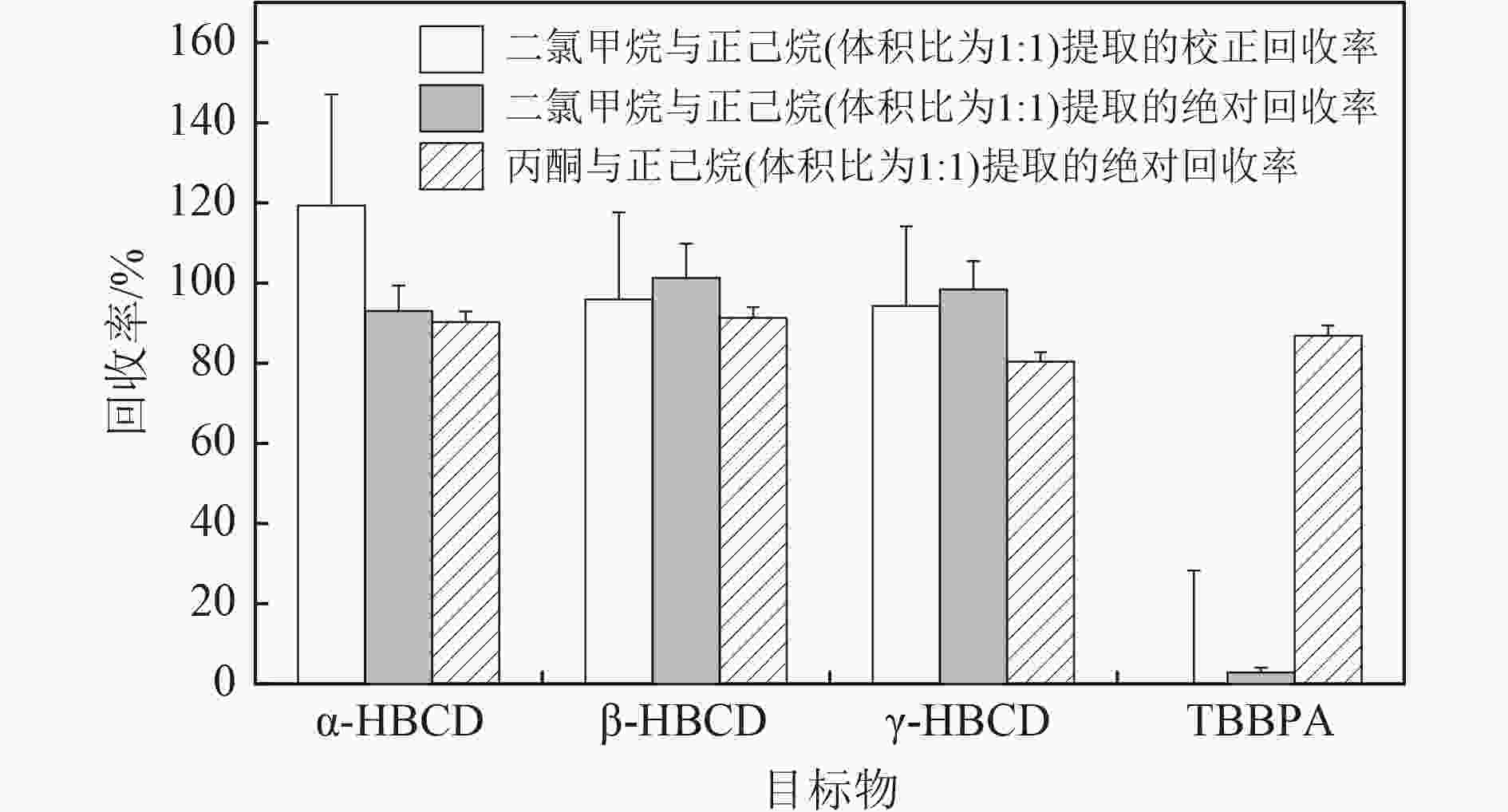

图 1 不同溶剂提取目标物的回收率
注：校正回收率指基于同位素提取内标校正后的回收率，绝对回收率指基于进样内标的回收率.
Figure 1. The recoveries of the analytes on different extracting solvents

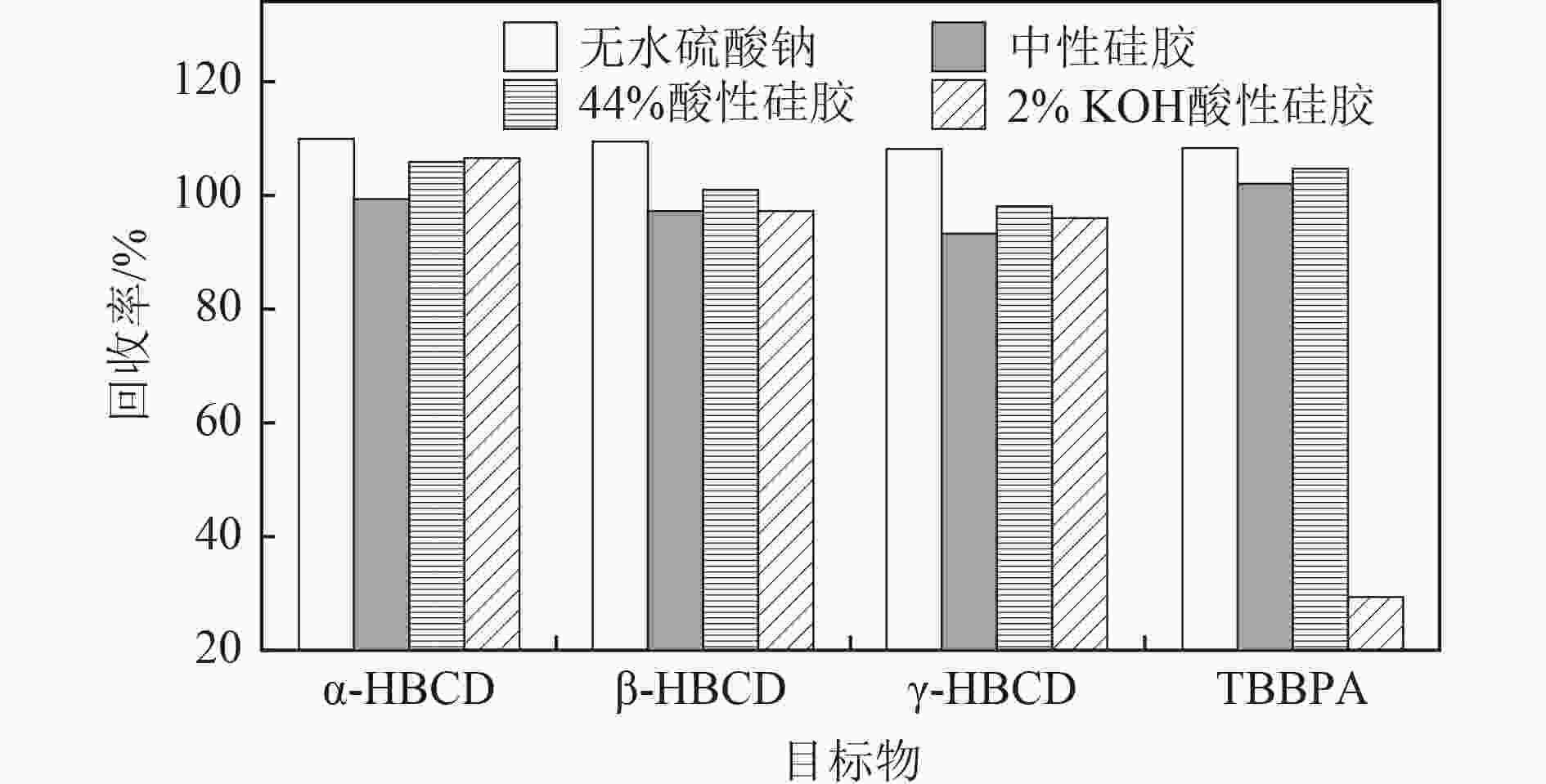

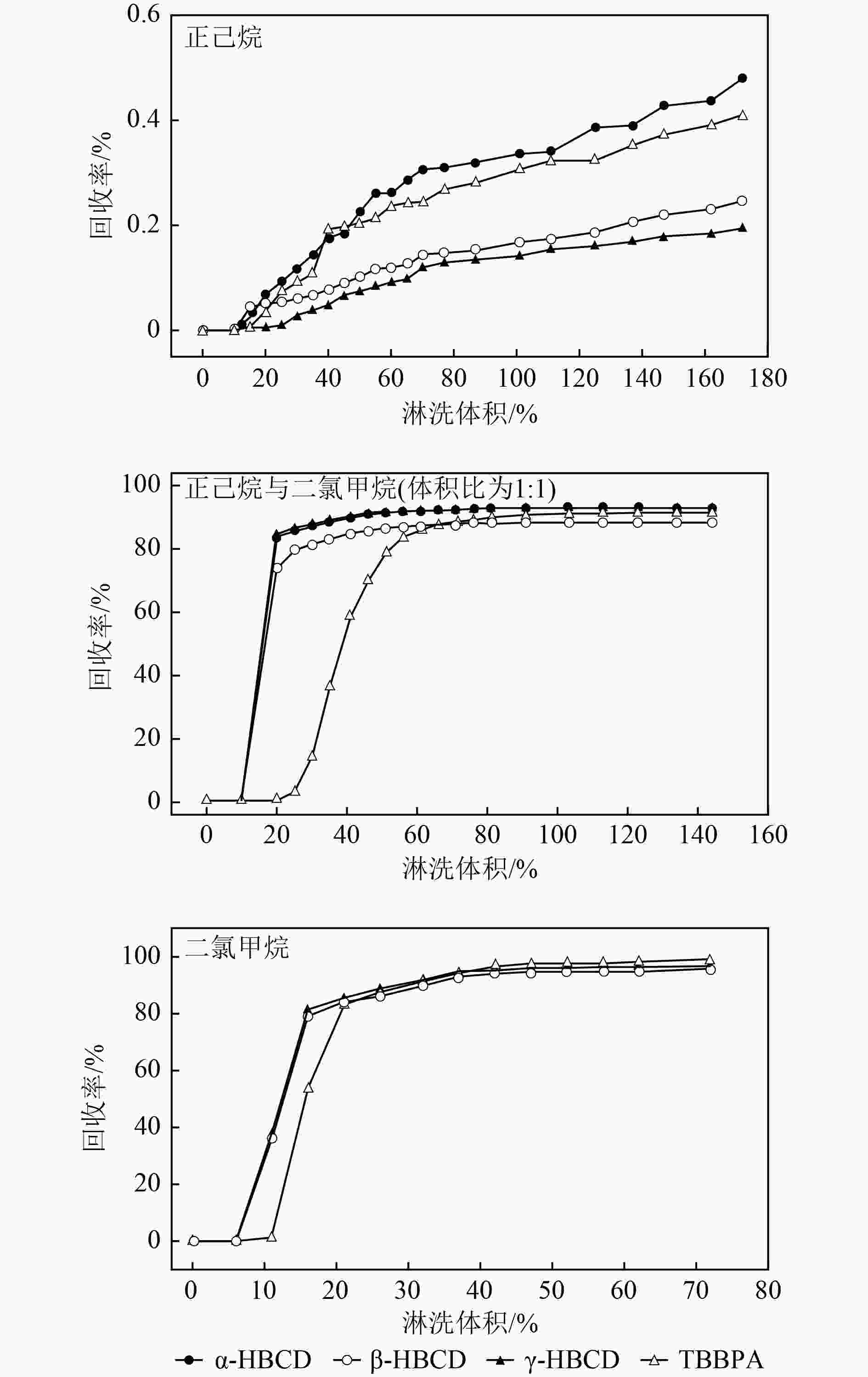

图 3 目标物在3种不同洗脱溶剂下的淋洗曲线
Figure 3. The elution curves of targets in three different solvents

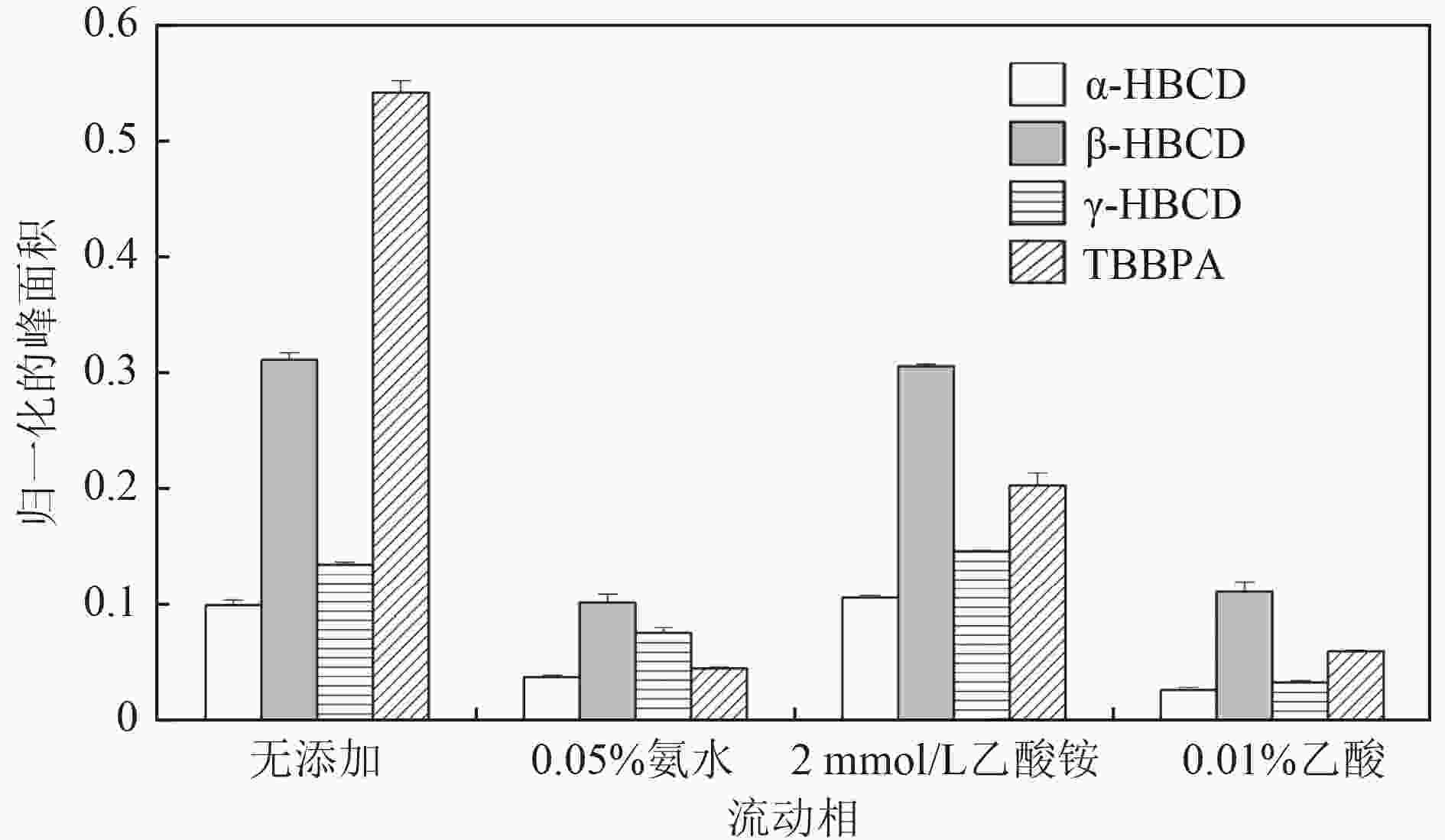

图 4 不同流动相下目标物的归一化响应
Figure 4. Normalized response of targets in different mobile phases

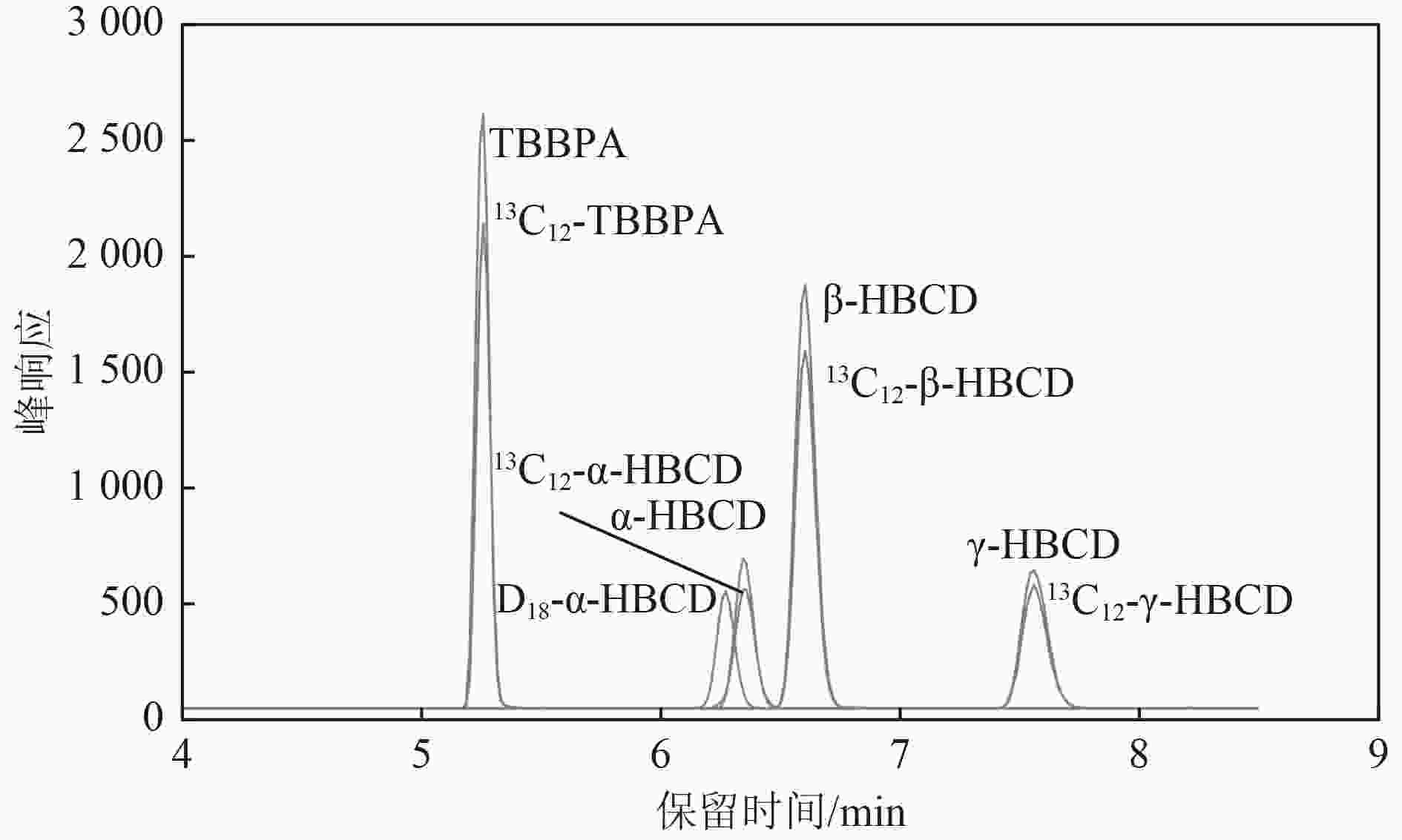

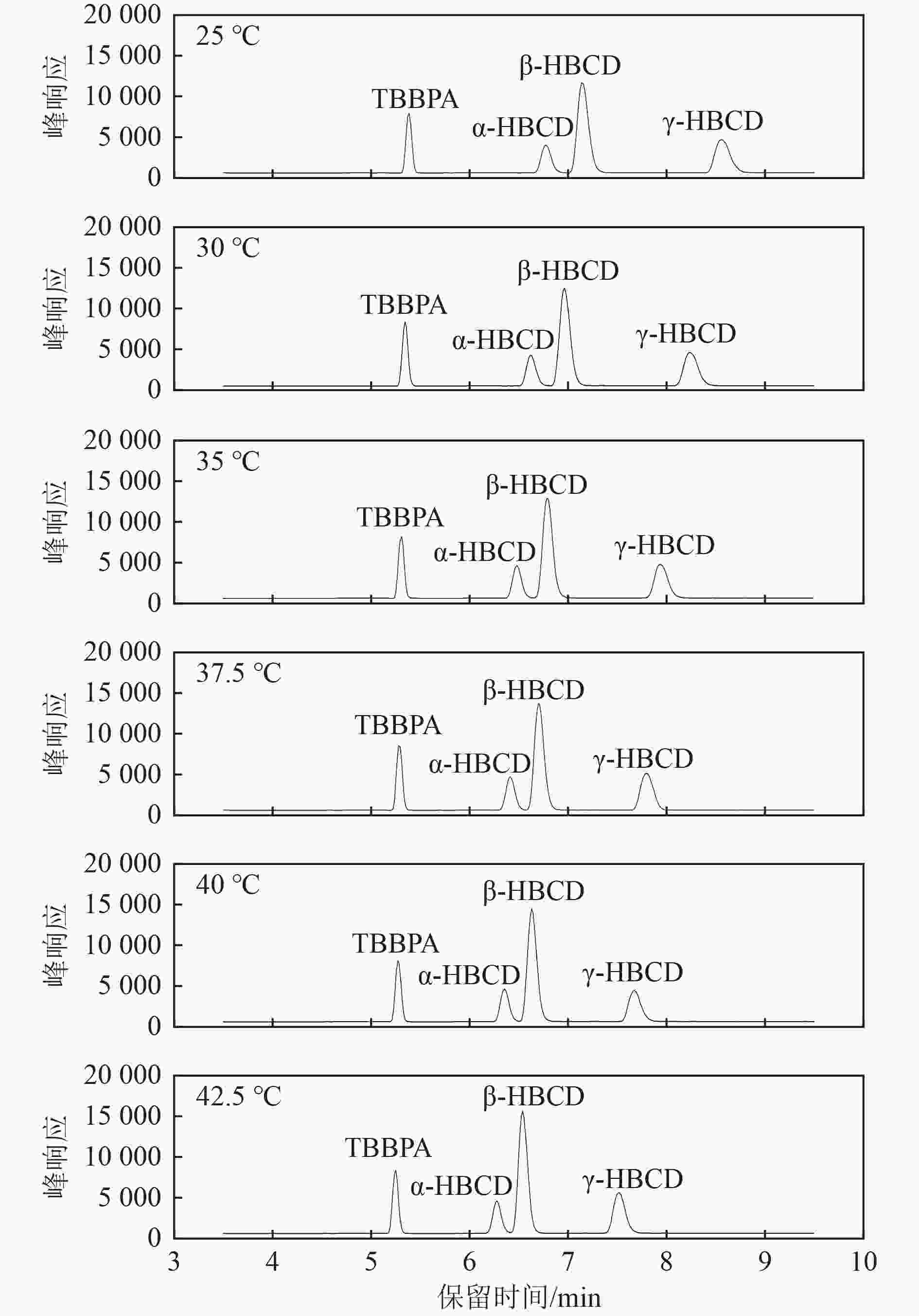

图 6 不同柱温下HBCDs和TBBPA的MRM色谱图
Figure 6. MRM chromatograms of HBCDs and TBBPA in different column temperatures
表 1 目标物分析的梯度洗脱程序
Table 1. Gradient elution profile for the target compounds analysis
时间/min 流速/(mL/min) 流动相A/% 流动相B/% 0 0.3 70 30 2 0.3 30 70 3 0.3 20 80 5 0.3 20 80 8 0.3 15 85 9 0.3 70 30 14 0.3 70 30 注：9～14 min为两次样品分析间的平衡时间.
下载: 导出CSV
表 2 方法精密度和正确度数据
Table 2. The precision and accuracy of the developed method
样品类型 添加量 α-HBCD β-HBCD γ-HBCD TBBPA 平均值/
(μg/kg)相对标准
偏差/%加标回收
率/%平均值/
(μg/kg)相对标准
偏差/%加标回收
率/%平均值/
(μg/kg)相对标准
偏差/%加标回收
率/%平均值/
(μg/kg)相对标准
偏差/%加标回收
率/%石英砂 1 0.54 4.54 108 0.55 4.42 110 0.55 7.71 111 0.48 5.11 95.6 2 1.86 5.72 92.9 1.90 2.24 94.8 1.89 3.01 94.4 1.87 4.26 93.6 3 9.67 4.48 96.7 9.74 1.93 97.4 9.70 2.16 97.0 9.61 3.77 96.1 背景土壤 1 0.58 6.94 116 0.56 3.74 112 0.60 4.77 120 0.58 10.0 115 2 2.13 10.6 107 2.10 6.78 105 2.11 5.61 105 2.11 7.29 106 工业土壤 2 2.77 8.97 112 2.61 7.28 112 5.20 6.22 121 1.9 2.52 94.8 3 10.9 2.16 104 11.4 3.22 110 13.0 2.24 102 10.6 1.76 106 海洋沉积物 1 0.57 5.16 114 0.59 3.58 117 0.56 3.67 113 0.57 4.42 114 2 1.97 1.88 98.7 1.95 2.92 97.6 1.93 4.65 96.7 1.91 3.63 95.3 河流沉积物 2 2.30 5.01 115 2.24 7.97 112 2.32 5.57 116 2.22 4.91 111 3 10.8 3.48 108 11.1 3.19 111 11.4 1.84 114 11.7 2.62 117 注：添加量1、2、3代表目标物的添加浓度分别为0.5、2.0、10 μg/kg.
下载: 导出CSV
-
[1] WANG X L,SUN R R,CHEN Y D,et al.Temporal-spatial distribution and diastereoisomer pattern of hexabromocyclododecane in the vicinity of a chemical plant[J].Journal of Environmental Sciences,2019,82:203-212. doi: 10.1016/j.jes.2019.03.010 [2] United Nations Environment Programme (UNEP).The new POPs under the Stockholm convention [EB/OL].Nairobi:UNEP-Stockholm Convention,(2022-07-07)[2022-07-07].http://chm.pops.int/TheConvention/ThePOPs/TheNewPOPs/tabid/2511/Default.aspx. [3] COVACI A,VOORSPOELS S,ABDALLAH M A E,et al.Analytical and environmental aspects of the flame retardant tetrabromobisphenol:a and its derivatives[J].Journal of Chromatography A,2009,1216(3):346-363. doi: 10.1016/j.chroma.2008.08.035 [4] ZHOU H,YIN N Y,FAIOLA F.Tetrabromobisphenol A (TBBPA):a controversial environmental pollutant[J].Journal of Environmental Sciences,2020,97:54-66. doi: 10.1016/j.jes.2020.04.039 [5] HAN Q,SONG H,GAO S T,et al.Determination of ten hexabromocyclododecane diastereoisomers using two coupled reversed-phase columns and liquid chromatography/tandem mass spectrometry[J].Rapid Communications in Mass Spectrometry,2014,28(13):1473-1478. doi: 10.1002/rcm.6922 [6] ZHANG Y Q,LU Y L,WANG P,et al.Transport of hexabromocyclododecane (HBCD) into the soil,water and sediment from a large producer in China[J].Science of the Total Environment,2018,610/611:94-100. doi: 10.1016/j.scitotenv.2017.08.039 [7] JO H,SON M H,SEO S H,et al.Matrix-specific distribution and diastereomeric profiles of hexabromocyclododecane (HBCD) in a multimedia environment:air,soil,sludge,sediment,and fish[J].Environmental Pollution,2017,226:515-522. doi: 10.1016/j.envpol.2017.04.093 [8] CHOKWE T B,OKONKWO J O,NWAMADI M S.Occurrence and distribution of tetrabromobisphenol A and its derivative in river sediments from Vaal River Catchment,South Africa[J].Emerging Contaminants,2017,3(3):121-126. doi: 10.1016/j.emcon.2017.11.001 [9] GUERRA P,ELJARRAT E,BARCELÓ D.Simultaneous determination of hexabromocyclododecane,tetrabromobisphenol A,and related compounds in sewage sludge and sediment samples from Ebro River Basin (Spain)[J].Analytical and Bioanalytical Chemistry,2010,397(7):2817-2824. doi: 10.1007/s00216-010-3670-3 [10] COVACI A,GERECKE A C,LAW R J,et al.Hexabromocyclododecanes (HBCDs) in the environment and humans:a review[J].Environmental Science & Technology,2006,40(12):3679-3688. [11] WANG T,HAN S L,RUAN T,et al.Spatial distribution and inter-year variation of hexabromocyclododecane (HBCD) and tris-(2,3-dibromopropyl) isocyanurate (TBC) in farm soils at a peri-urban region[J].Chemosphere,2013,90(2):182-187. doi: 10.1016/j.chemosphere.2012.06.027 [12] WANG J Z,JIA X W,GAO S T,et al.Levels and distributions of polybrominated diphenyl ethers,hexabromocyclododecane,and tetrabromobisphenol A in sediments from Taihu Lake,China[J].Environmental Science and Pollution Research International,2016,23(11):10361-10370. doi: 10.1007/s11356-015-5511-6 [13] 吴玉丽,肖羽堂,王冠平,等.多溴联苯醚、六溴环十二烷和四溴双酚A在环境中污染现状的研究进展[J].环境化学,2021,40(2):384-403. doi: 10.7524/j.issn.0254-6108.2020050502WU Y L,XIAO Y T,WANG G P,et al.Research progress on status of environmental pollutions of polybrominated diphenyl ethers,hexabromocyclodocane,and tetrabromobisphenol A:a review[J].Environmental Chemistry,2021,40(2):384-403. doi: 10.7524/j.issn.0254-6108.2020050502 [14] 高玉娟,谢承劼,余红,等.溴代阻燃剂在土壤中的迁移转化研究进展[J].环境科学研究,2021,34(2):479-490. doi: 10.13198/j.issn.1001-6929.2020.07.12GAO Y J,XIE C J,YU H,et al.Research progress on migration and transformation of brominated flame retardants in soil[J].Research of Environmental Sciences,2021,34(2):479-490. doi: 10.13198/j.issn.1001-6929.2020.07.12 [15] 六溴环十二烷标准分析方法的检索[EB/OL].海口:工标网,2022 [2022-07-07].http://www.csres.com/s.jsp?keyword=%C1%F9%E4%E5%BB%B7%CA%AE%B6%FE%CD%E9&pageNum=1. [16] 四溴双酚A标准分析方法的检索[EB/OL].海口:工标网,2022[2022-07-07].http://www.csres.com/s.jsp?keyword=%CB%C4%E4%E5%CB%AB%B7%D3A&submit12=%B1%EA%D7%BC%CB%D1%CB%F7&xx=on&wss=on&pageSize=25&pageNum=1&SortIndex=1&WayIndex=0&nowUrl=. [17] ZHANG Y W,RUAN Y F,SUN H W,et al.Hexabromocyclododecanes in surface sediments and a sediment core from rivers and harbor in the northern Chinese city of Tianjin[J].Chemosphere,2013,90(5):1610-1616. doi: 10.1016/j.chemosphere.2012.08.037 [18] GAO S T,WANG J Z,YU Z Q,et al.Hexabromocyclododecanes in surface soils from E-waste recycling areas and industrial areas in South China:concentrations,diastereoisomer- and enantiomer-specific profiles,and inventory[J].Environmental Science & Technology,2011,45(6):2093-2099. [19] 李芳,金静,王龙星,等.土壤样品中四溴双酚A和六溴环十二烷的测定[J].环境化学,2013,32(7):1370-1375. doi: 10.7524/j.issn.0254-6108.2013.07.035LI F,JIN J,WANG L X,et al.Determination of tetrabromobisphenol and hexabromocyclododecanes in soil samples[J].Environmental Chemistry,2013,32(7):1370-1375. doi: 10.7524/j.issn.0254-6108.2013.07.035 [20] ZHU N L,SCHRAMM K W,WANG T,et al.Lichen,moss and soil in resolving the occurrence of semi-volatile organic compounds on the southeastern Tibetan Plateau,China[J].Science of the Total Environment,2015,518/519:328-336. doi: 10.1016/j.scitotenv.2015.03.024 [21] TANG J F,FENG J Y,LI X H,et al.Levels of flame retardants HBCD,TBBPA and TBC in surface soils from an industrialized region of East China[J].Environmental Science Processes & Impacts,2014,16(5):1015-1021. [22] LIU A F,SHEN Z S,TIAN Y,et al.Thin-layer chromatography coupled with high performance liquid chromatography for determining tetrabromobisphenol A/S and their derivatives in soils[J].Journal of Chromatography A,2017,1526:151-156. doi: 10.1016/j.chroma.2017.10.045 [23] 王馨蕾,崔兆杰.超声波提取-气相色谱氢火焰测定土壤中六溴环十二烷[J].环境科学研究,2019,32(3):493-499.WANG X L,CUI Z J.Determination of hexabromocyclododecane in soil by an ultrasonic extraction-gas chromatography with FID method[J].Research of Environmental Sciences,2019,32(3):493-499. [24] WU H H,CHEN H C,DING W H.Combining microwave-assisted extraction and liquid chromatography-ion-trap mass spectrometry for the analysis of hexabromocyclododecane diastereoisomers in marine sediments[J].Journal of Chromatography A,2009,1216(45):7755-7760. doi: 10.1016/j.chroma.2009.09.001 [25] JEON J W,KIM C S,KIM H J,et al.Spatial distribution,source identification,and anthropogenic effects of brominated flame retardants in nationwide soil collected from the Republic of Korea[J].Environmental Pollution,2021,272:116026. doi: 10.1016/j.envpol.2020.116026 [26] LI H W,ZHANG Z W,SUN Y X,et al.Tetrabromobisphenol A and hexabromocyclododecanes in sediments and biota from two typical mangrove wetlands of South China:distribution,bioaccumulation and biomagnification[J].Science of the Total Environment,2021,750:141695. doi: 10.1016/j.scitotenv.2020.141695 [27] FENG A H,CHEN S J,CHEN M Y,et al.Hexabromocyclododecane (HBCD) and tetrabromobisphenol A (TBBPA) in riverine and estuarine sediments of the Pearl River Delta in southern China,with emphasis on spatial variability in diastereoisomer- and enantiomer-specific distribution of HBCD[J].Marine Pollution Bulletin,2012,64(5):919-925. doi: 10.1016/j.marpolbul.2012.03.008 [28] LEE I S,KANG H H,KIM U J,et al.Brominated flame retardants in Korean River sediments,including changes in polybrominated diphenyl ether concentrations between 2006 and 2009[J].Chemosphere,2015,126:18-24. doi: 10.1016/j.chemosphere.2015.01.004 [29] ZHU H K,ZHANG K,SUN H W,et al.Spatial and temporal distributions of hexabromocyclododecanes in the vicinity of an expanded polystyrene material manufacturing plant in Tianjin,China[J].Environmental Pollution,2017,222:338-347. doi: 10.1016/j.envpol.2016.12.029 [30] LI Y N,ZHOU Q X,WANG Y Y,et al.Fate of tetrabromobisphenol A and hexabromocyclododecane brominated flame retardants in soil and uptake by plants[J].Chemosphere,2011,82(2):204-209. doi: 10.1016/j.chemosphere.2010.10.021 [31] XU J,ZHANG Y,GUO C S,et al.Levels and distribution of tetrabromobisphenol A and hexabromocyclododecane in Taihu Lake,China[J].Environmental Toxicology and Chemistry,2013,32(10):2249-2255. doi: 10.1002/etc.2318 [32] 赵明东,杨苏文,李和平,等.洱海表层沉积物与鱼体中四溴双酚A的环境暴露水平[J].环境科学研究,2013,26(2):160-165. doi: 10.13198/j.res.2013.02.49.zhaomd.009ZHAO M D,YANG S W,LI H P,et al.Determination of tetrabromobisphenol-A exposed in surface sediment and fishes from Erhai Lake[J].Research of Environmental Sciences,2013,26(2):160-165. doi: 10.13198/j.res.2013.02.49.zhaomd.009 [33] PELED M,SCHARIA R,SONDACK D.Thermal rearrangement of hexabromo-cyclododecane (HBCD)[J].Industrial Chemistry Library,1995,7:92-99. [34] 余彬彬,牛禾,牛群鸣.液相色谱-质谱法测定土壤中四溴双酚A和六溴环十二烷[J].中国环境监测,2013,29(6):108-112. doi: 10.3969/j.issn.1002-6002.2013.06.021YU B B,NIU H,NIU Q M.Analysis of tetrabromobisphenol A and hexabromocyclododecane in soil by liquid chromatography-mass spectrometry[J].Environmental Monitoring in China,2013,29(6):108-112. doi: 10.3969/j.issn.1002-6002.2013.06.021 [35] ZHAO Y H,LI Q Q,MIAO X,et al.Determination of hexabromocyclododecanes in sediments from the Haihe River in China by an optimized HPLC-MS-MS method[J].Journal of Environmental Sciences,2017,55:174-183. doi: 10.1016/j.jes.2016.07.013 [36] VILAPLANA F,KARLSSON P,RIBES-GREUS A,et al.Analysis of brominated flame retardants in styrenic polymers:comparison of the extraction efficiency of ultrasonication,microwave-assisted extraction and pressurised liquid extraction[J].Journal of Chromatography A,2008,1196:139-146. doi: 10.1016/j.chroma.2008.05.001 [37] LI F,JIN J,TAN D Q,et al.Hexabromocyclododecane and tetrabromobisphenol A in sediments and paddy soils from Liaohe River Basin,China:levels,distribution and mass inventory[J].Journal of Environmental Sciences,2016,48:209-217. doi: 10.1016/j.jes.2016.03.018 [38] RAMU K,ISOBE T,TAKAHASHI S,et al.Spatial distribution of polybrominated diphenyl ethers and hexabromocyclododecanes in sediments from coastal waters of Korea[J].Chemosphere,2010,79(7):713-719. doi: 10.1016/j.chemosphere.2010.02.048 -
