Analysis of PM2.5-O3 Compound Pollution Characteristics and Meteorological Causes in Henan Province from 2014 to 2020
-
摘要: 为了解河南省PM2.5-O3复合污染特征及气象成因，本文基于2014—2020年河南省18个地级市的空气质量国控点数据及常规地面气象观测数据，对河南省PM2.5-O3的复合污染时空特征及关键气象因子影响进行分析. 结果表明：①在空间分布上，PM2.5-O3复合污染天数呈由河南省中北部向周围逐渐减少的特点，而O3单污染和PM2.5单污染高发区均主要集中于豫北地区. ②在时间特征上，2014—2020年PM2.5-O3复合污染天数呈先增加后减少的特征，最多为12 d (2014年)，2016—2017年未出现复合污染；PM2.5单污染和O3单污染天数均呈“M”型变化趋势，PM2.5单污染天数的2个峰值分别出现在2015年和2019年，分别为174和93 d，O3单污染天数的2个峰值分别出现在2017和2019年，分别为64和79 d. PM2.5-O3复合污染主要出现在4月、5月、6月、7月、10月；PM2.5单污染天数呈“V”型变化趋势，8月污染天数最少，为2 d，O3单污染主要集中在4—10月. PM2.5-O3复合污染时的O3浓度日变化特征与O3日最大滑动平均值(简称“O3-8 h浓度”)均呈“单峰”型. PM2.5-O3复合污染时的O3浓度在16:00达最大值，为171 μg/m3. ③PM2.5-O3复合污染频发时的气温较O3单污染频发时的气温高，而较PM2.5单污染频发时的气温低. PM2.5-O3复合污染频发时的相对湿度较单污染频发时的相对湿度低. 当气温为13.7~23.4 ℃、相对湿度为40%~65%、风向为北或东北风、风速为2.7~3.1 m/s时有利于PM2.5-O3复合污染的发生. 研究显示，2014—2020年河南省PM2.5-O3复合污染具有明显的时空特征且污染程度先减轻后加重的趋势，气温、相对湿度、风速和风向对PM2.5-O3复合污染影响显著.Abstract: In order to understand the characteristics of PM2.5-O3 compound pollution and the meteorological contributing factors in Henan Province, this study analyzes the temporal and spatial characteristics of PM2.5-O3 compound pollution and the impact of the key meteorological factors based on the data of national air quality control points and conventional ground meteorological observation from 18 prefecture-level cities in Henan Province from 2014 to 2020. The results show that: (1) For the spatial distribution, the composite of PM2.5-O3 pollution days decrease gradually from the central north of Henan Province to the surrounding areas, and the high incidence areas of single O3 pollution days and single PM2.5 pollution days are mainly concentrated in northern Henan Province. (2) In terms of the temporal characteristics, from 2014 to 2020, the days of PM2.5-O3 composite pollution increase first and then decrease, with a maximum of 12 days (in 2014). From 2016 to 2017, there is no composite pollution. Both single PM2.5 and O3 pollution show ‘M’ type trends. The two peaks of single PM2.5 pollution appear in 2015 and 2019, with 174 and 93 days, respectively. The two peaks of single O3 pollution appear in 2017 and 2019, with 64 and 79 days, respectively. The monthly variation of PM2.5-O3 composite pollution days is mainly concentrated in April-July and October. The single PM2.5 pollution shows a ‘V’ type trend with the minimum pollution days of two occurring in August. The single O3 pollution is mainly concentrated in April-October. The daily variation characteristics of PM2.5-O3 composite pollution are consistent with the daily maximum running average value of O3 (referred to as ‘O3-8 h concentration’), which show a ‘single-peak’ distribution and reach the maximum of 171 μg/m3 at 16:00. (3) The air temperature leading to PM2.5-O3 composite pollution is higher than that of single O3 pollution and lower than that of single PM2.5 pollution, and the relative humidity is lower than that of single pollution. When the air temperature is 13.7-23.4 ℃, the relative humidity ranges from 40% to 65%, the wind direction is north or northeast, and the wind speed is 2.7-3.1 m/s, it is conducive to the occurrence of PM2.5-O3 composite pollution. The results show that the PM2.5-O3 compound pollution in Henan Province has obvious temporal and spatial characteristics from 2014 to 2020 and the pollution level first decreases and then increases. Temperature, relative humidity, wind speed, and wind direction have significant impact on the PM2.5-O3 compound pollution.
-
Key words:
- PM2.5 /
- O3 /
- compound pollution /
- meteorological factors /
- Henan Province
-

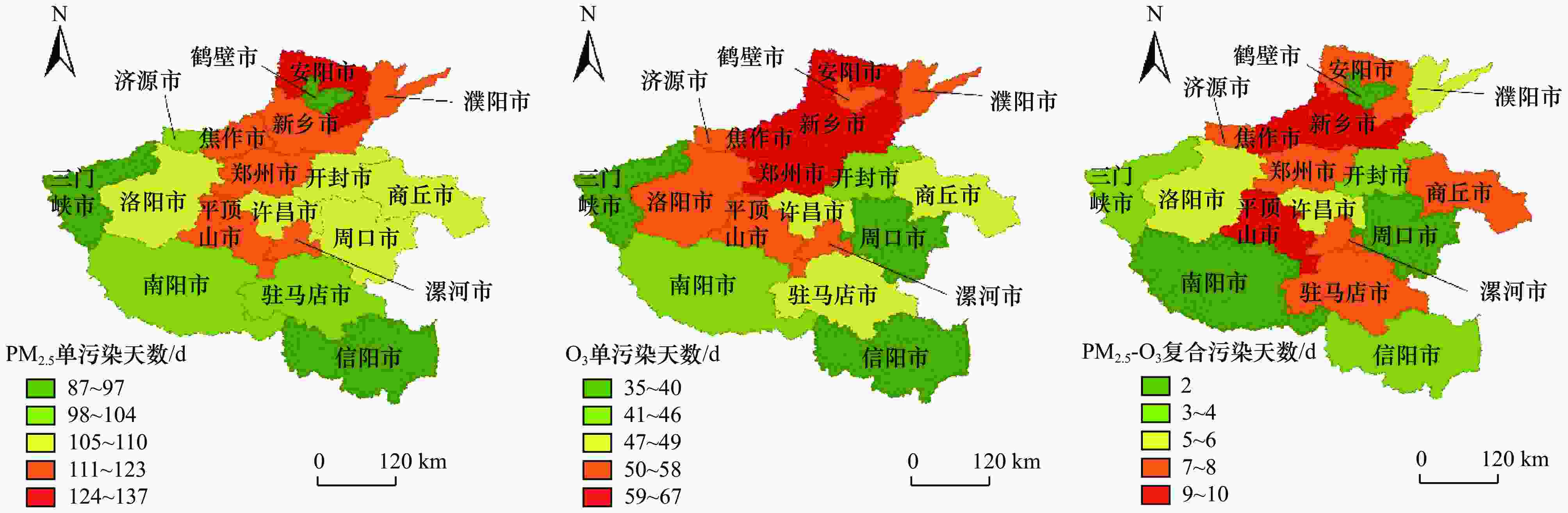

图 1 2014—2020年河南省PM2.5-O3复合污染和单污染的年均天数变化特征
Figure 1. Annual changes of PM2.5-O3 compound pollution and single pollution in Henan Province from 2014 to 2020

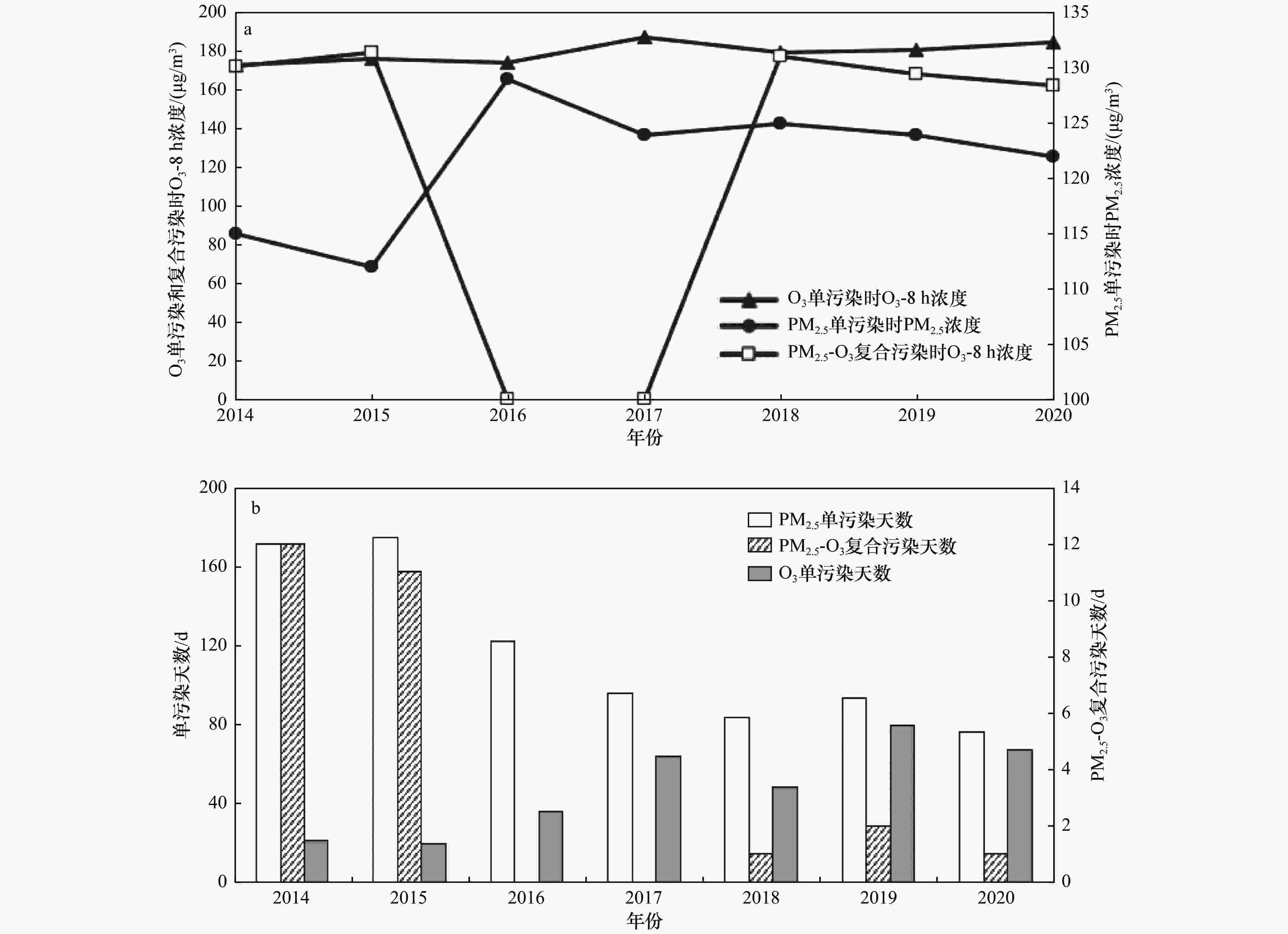

图 2 河南省2014—2020年PM2.5-O3复合污染和单污染天数的年变化特征
Figure 2. Annual variation characteristics of PM2.5-O3 compound pollution and single pollution in Henan Province from 2014 to 2020

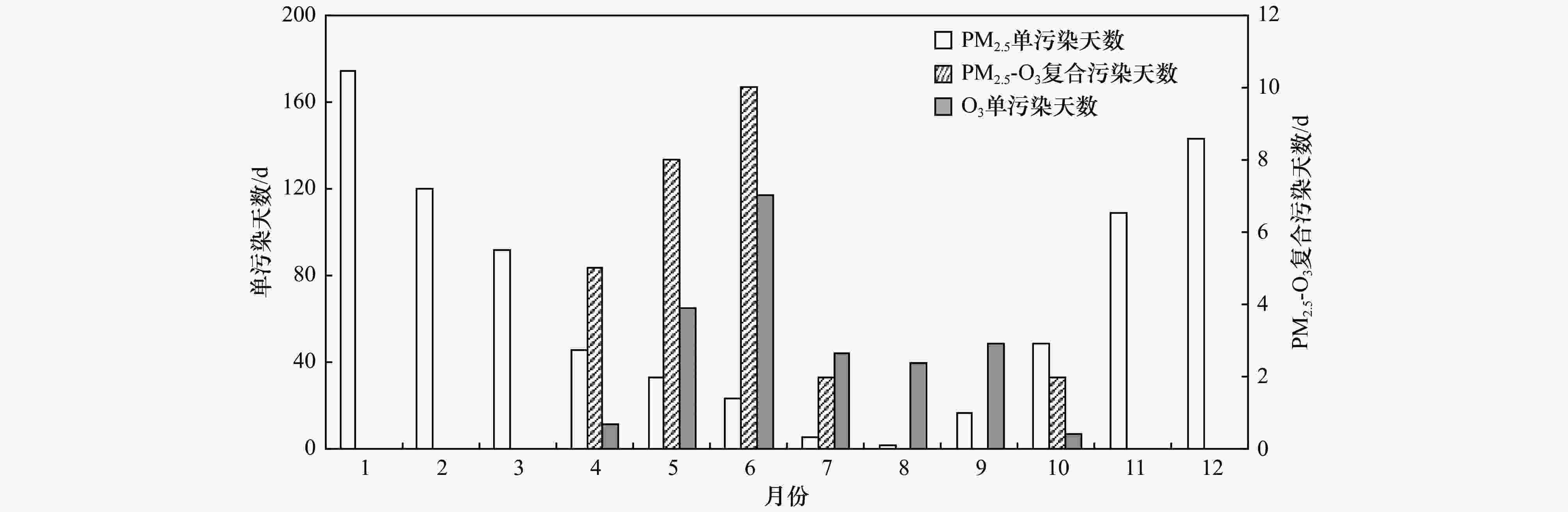

图 3 2014—2020年河南省PM2.5-O3复合污染和单污染天数的月变化情况
Figure 3. Monthly change of PM2.5-O3 compound pollution and single pollution days in Henan Province from 2014 to 2020

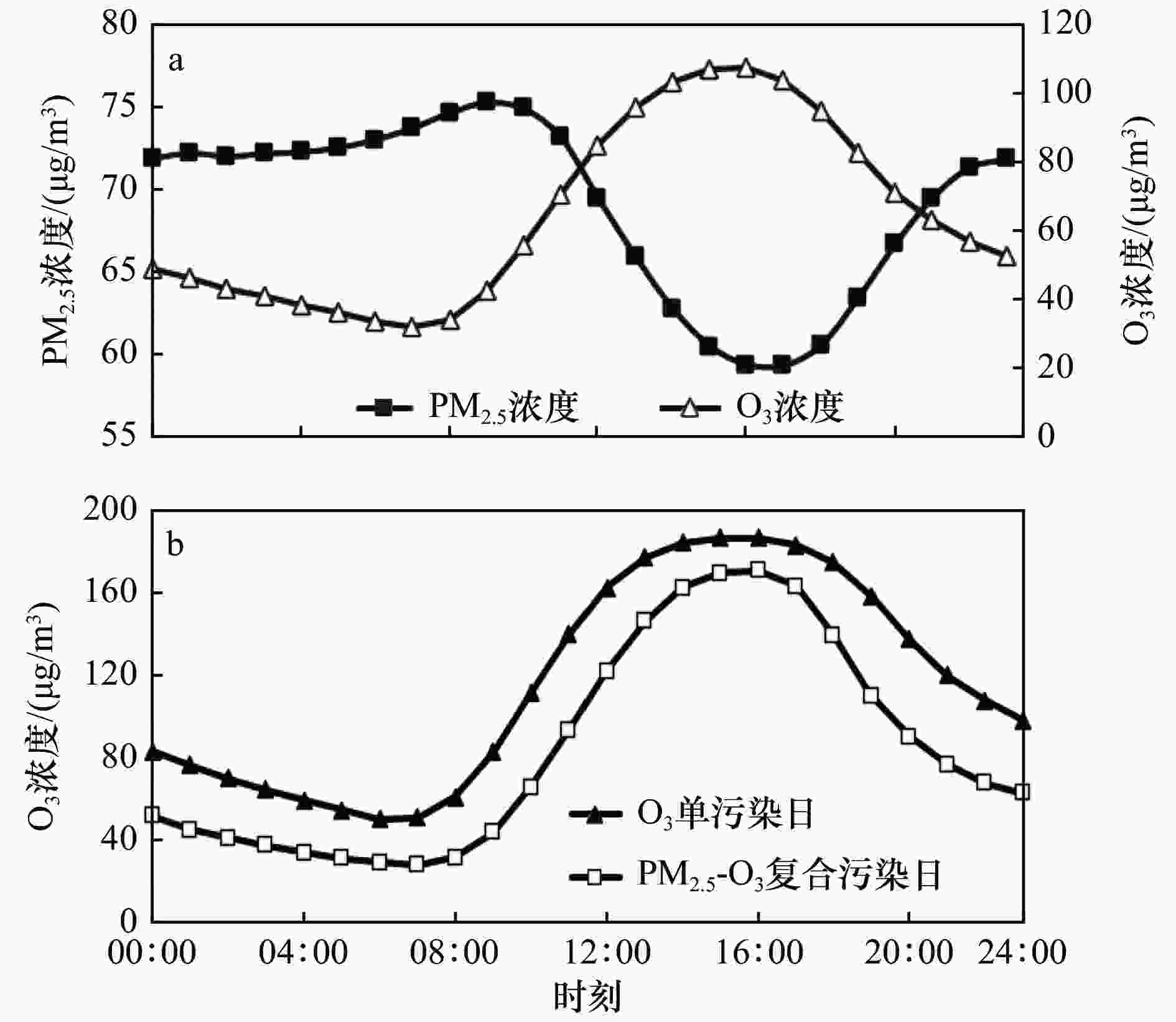

图 4 2014—2020年河南省PM2.5和O3浓度日变化以及O3单污染和PM2.5-O3复合污染日的O3浓度日变化情况
Figure 4. Daily changes of PM2.5 and O3 concentrations, and daily changes of single O3 pollution and PM2.5-O3 compound pollution in Henan Province from 2014 to 2020

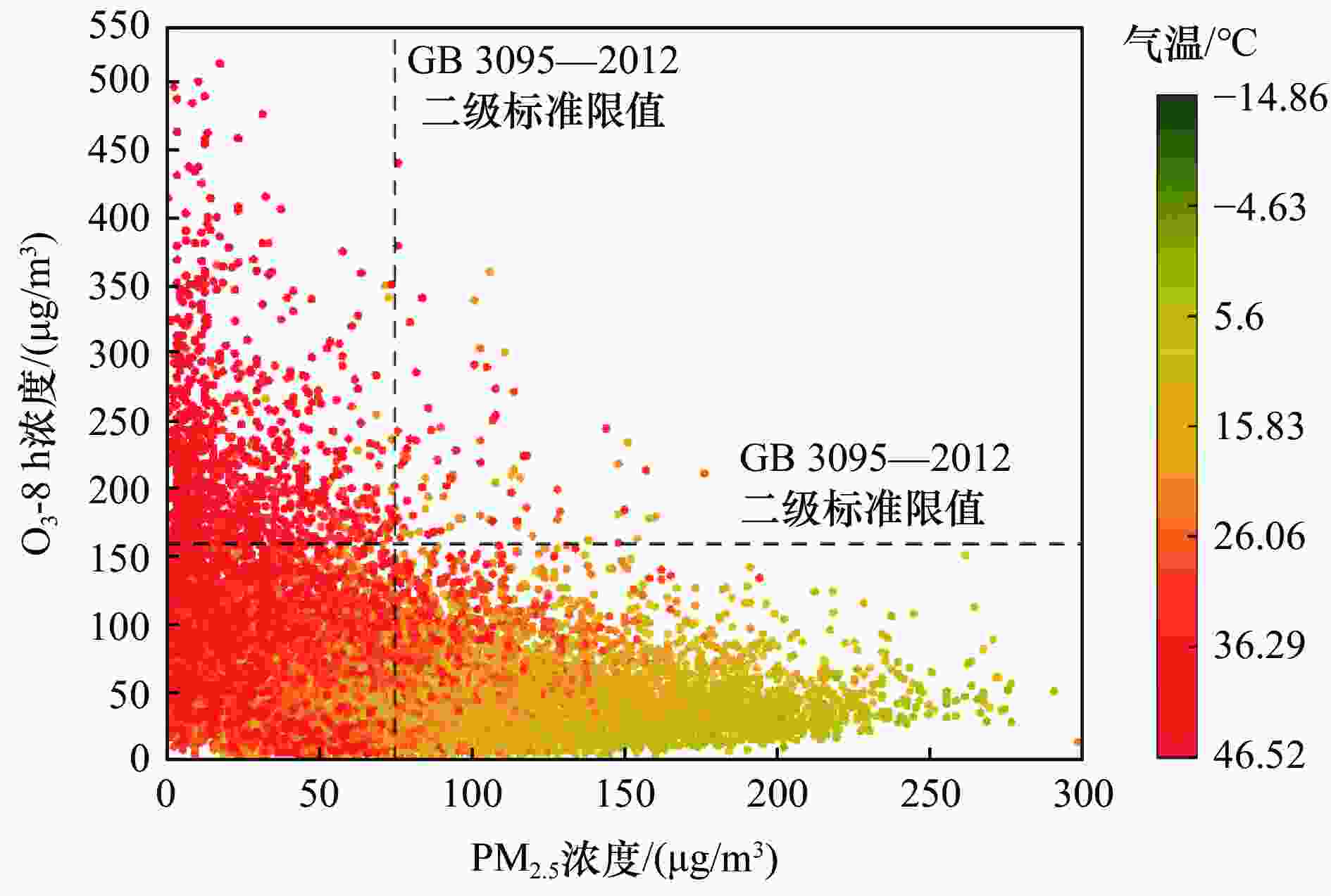

图 5 河南省PM2.5-O3复合污染时气温分布情况
Figure 5. Temperature distribution under PM2.5-O3 compound pollution in Henan Province

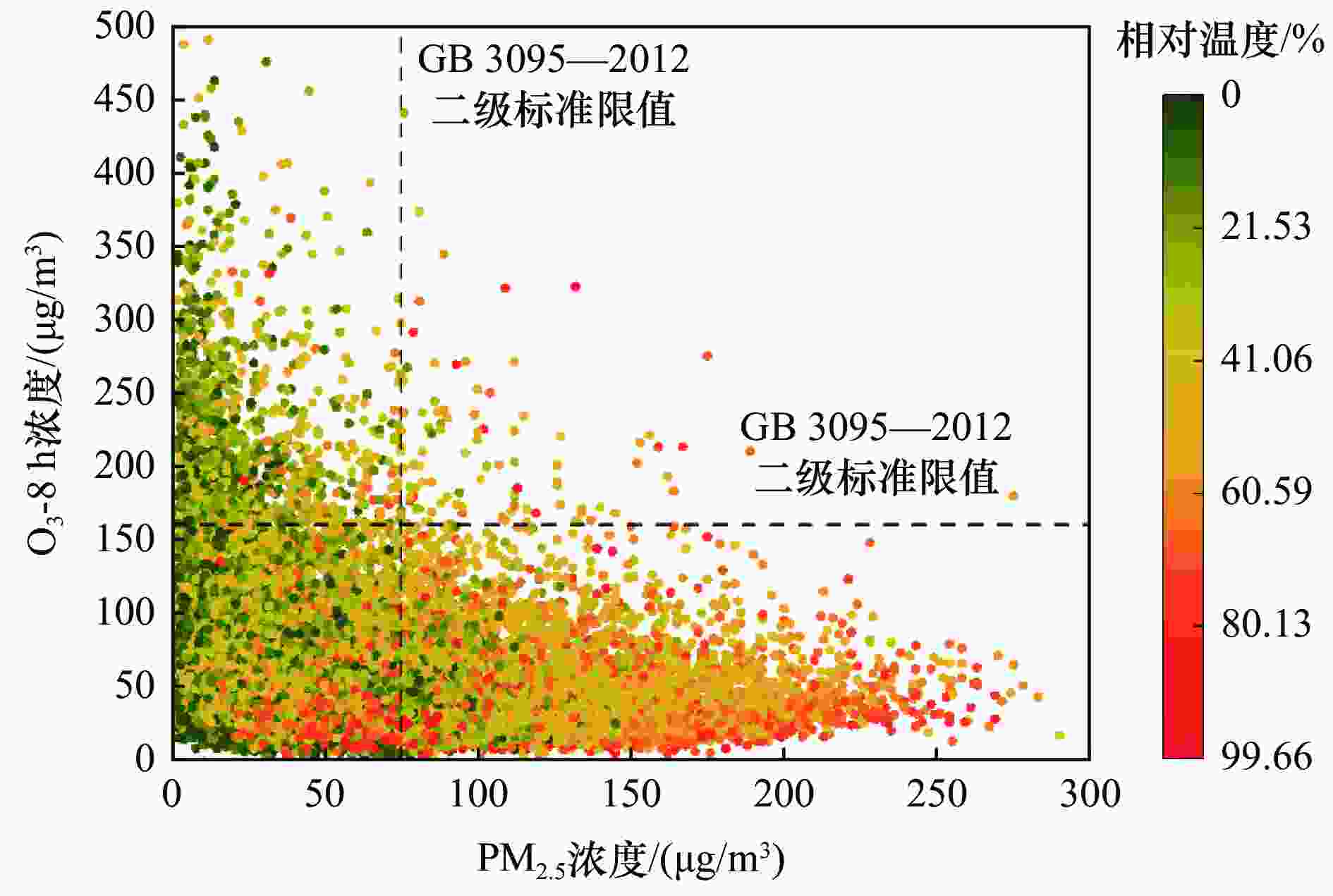

图 6 河南省PM2.5-O3复合污染时相对湿度分布情况
Figure 6. Relative humidity distribution under PM2.5-O3 compound pollution in Henan Province
-
[1] 张小曳,孙俊英,王亚强,等.我国雾-霾成因及其治理的思考[J].科学通报,2013,58(13):1178-1187. doi: 10.1360/972013-150ZHANG X Y,SUN J Y,WANG Y Q,et al.Factors contributing to haze and fog in China[J].Chinese Science Bulletin,2013,58(13):1178-1187. doi: 10.1360/972013-150 [2] HU M,GUO S,PENG J F,et al.Insight into characteristics and sources of PM2.5 in the Beijing-Tianjin-Hebei Region,China[J].National Science Review,2015,2(3):257-258. doi: 10.1093/nsr/nwv003 [3] ZHU T.Air pollution in China:scientific challenges and policy implications[J].National Science Review,2018,4(6):800. [4] 花丛,江琪,迟茜元,等.我国中东部地区2015—2020年夏半年PM2.5和臭氧复合污染气象特征分析[J].环境科学研究,2022,35(3):650-658.HUA C,JIANG Q,CHI X Y,et al.Meteorological characteristics of PM2.5-O3 air combined pollution in central and eastern China in the summer half years of 2015-2020[J].Research of Environmental Sciences,2022,35(3):650-658. [5] 肖致美,李源,孔君,等.天津市PM2.5-O3复合污染特征及气象影响分析[J].环境科学,2022,43(6):2928-2936.XIAO Z M,LI Y,KONG J,et al.Characteristics and meteorological factors of PM2.5-O3 compound pollution in Tianjin[J].Environmental Science,2022,43(6):2928-2936. [6] 谭羲,李万隆,黄月华,等.中原城市群重点城市首要污染物日变化特征及成因分析[J].科学技术与工程,2021,21(32):14014-14021. doi: 10.3969/j.issn.1671-1815.2021.32.055TAN X,LI W L,HUANG Y H,et al.Diurnal variation characteristics of primary pollutants in key cities of Central Plains Urban Agglomeration and meteorological factors analysis[J].Science Technology and Engineering,2021,21(32):14014-14021. doi: 10.3969/j.issn.1671-1815.2021.32.055 [7] WU B,LIU C Q,ZHANG J,et al.The multifractal evaluation of PM2.5-O3 coordinated control capability in China[J].Ecological Indicators,2021,129:107877. doi: 10.1016/j.ecolind.2021.107877 [8] 赖安琪,陈晓阳,刘一鸣,等.珠江三角洲PM2.5和O3复合污染过程的数值模拟[J].中国环境科学,2017,37(11):4022-4031. doi: 10.3969/j.issn.1000-6923.2017.11.003LAI A Q,CHEN X Y,LIU Y M,et al.Numerical simulation of a complex pollution episode with high concentrations of PM2.5 and O3 over the Pearl River Delta Region,China[J].China Environmental Science,2017,37(11):4022-4031. doi: 10.3969/j.issn.1000-6923.2017.11.003 [9] QIU X Y,DANESH-YAZDI M,WEI Y G,et al.Associations of short-term exposure to air pollution and increased ambient temperature with psychiatric hospital admissions in older adults in the USA:a case-crossover study[J].The Lancet Planetary Health,2022,6(4):e331-e341. doi: 10.1016/S2542-5196(22)00017-1 [10] NAGHAN D J,NEISI A,GOUDARZI G,et al.Estimation of the effects PM2.5,NO2,O3 pollutants on the health of Shahrekord residents based on AirQ+ software during (2012-2018)[J].Toxicology Reports,2022,9:842-847. doi: 10.1016/j.toxrep.2022.03.045 [11] 李红,彭良,毕方,等.我国PM2.5与臭氧污染协同控制策略研究[J].环境科学研究,2019,32(10):1763-1778.LI H,PENG L,BI F,et al.Strategy of coordinated control of PM2.5 and ozone in China[J].Research of Environmental Sciences,2019,32(10):1763-1778. [12] GONG S,ZHANG L,LIU C,et al.Multi-scale analysis of the impacts of meteorology and emissions on PM2.5 and O3 trends at various regions in China from 2013 to 2020 1:synoptic circulation patterns and pollution[J].Science of the Total Environment,2022,824:153847. doi: 10.1016/j.scitotenv.2022.153847 [13] 张宇静,赵天良,殷翀之,等.徐州市大气PM2.5与O3作用关系的季节变化[J].中国环境科学,2019,39(6):2267-2272. doi: 10.3969/j.issn.1000-6923.2019.06.004ZHANG Y J,ZHAO T L,YIN C Z,et al.Seasonal variation of the relationship between surface PM2.5 and O3 concentrations in Xuzhou[J].China Environmental Science,2019,39(6):2267-2272. doi: 10.3969/j.issn.1000-6923.2019.06.004 [14] 毛卓成,许建明,杨丹丹,等.上海地区PM2.5-O3复合污染特征及气象成因分析[J].中国环境科学,2019,39(7):2730-2738. doi: 10.3969/j.issn.1000-6923.2019.07.005MAO Z C,XU J M,YANG D D,et al.Analysis of characteristics and meteorological causes of PM2.5-O3 compound pollution in Shanghai[J].China Environmental Science,2019,39(7):2730-2738. doi: 10.3969/j.issn.1000-6923.2019.07.005 [15] CHEN L,ZHU J,LIAO H,et al.Meteorological influences on PM2.5 and O3 trends and associated health burden since China's clean air actions[J].Science of the Total Environment,2020,744:140837. doi: 10.1016/j.scitotenv.2020.140837 [16] JIANG J H,AKSOYOGLU S,CIARELLI G,et al.Changes in ozone and PM2.5 in Europe during the period of 1990-2030:role of reductions in land and ship emissions[J].Science of the Total Environment,2020,741:140467. doi: 10.1016/j.scitotenv.2020.140467 [17] HUANG J Y,ZHU Y,KELLY J T,et al.Large-scale optimization of multi-pollutant control strategies in the Pearl River Delta Region of China using a genetic algorithm in machine learning[J].Science of the Total Environment,2020,722:137701. doi: 10.1016/j.scitotenv.2020.137701 [18] WANG Y Y,HU J L,ZHU J,et al.Health Burden and economic impacts attributed to PM2.5 and O3 in China from 2010 to 2050 under different representative concentration pathway scenarios[J].Resources,Conservation and Recycling,2021,173:105731. doi: 10.1016/j.resconrec.2021.105731 [19] YU Y J,WANG Z,HE T,et al.Driving factors of the significant increase in surface ozone in the Yangtze River Delta,China,during 2013-2017[J].Atmospheric Pollution Research,2019,10(4):1357-1364. doi: 10.1016/j.apr.2019.03.010 [20] CHUANG M T,CHOU C C K,LIN C Y,et al.A numerical study of reducing the concentration of O3 and PM2.5 simultaneously in Taiwan[J].Journal of Environmental Management,2022,318:115614. doi: 10.1016/j.jenvman.2022.115614 [21] ZHAO H,CHEN K Y,LIU Z,et al.Coordinated control of PM2.5 and O3 is urgently needed in China after implementation of the ‘Air Pollution Prevention and Control Action Plan’[J].Chemosphere,2021,270:129441. doi: 10.1016/j.chemosphere.2020.129441 [22] XU T Y,ZHANG C X,LIU C,et al.Variability of PM2.5 and O3 concentrations and their driving forces over Chinese megacities during 2018-2020[J].Journal of Environmental Sciences,2023,124:1-10. doi: 10.1016/j.jes.2021.10.014 [23] LUO Y H,ZHAO T L,YANG Y J,et al.Seasonal changes in the recent decline of combined high PM2.5 and O3 pollution and associated chemical and meteorological drivers in the Beijing-Tianjin-Hebei Region,China[J].Science of the Total Environment,2022,838:156312. doi: 10.1016/j.scitotenv.2022.156312 [24] 张涵,姜华,高健,等.PM2.5与臭氧污染形成机制及协同防控思路[J].环境科学研究,2022,35(3):611-620.ZHANG H,JIANG H,GAO J,et al.Formation mechanism and management strategy of cooperative control of PM2.5 and O3[J].Research of Environmental Sciences,2022,35(3):611-620. [25] HUANG L,SUN J J,JIN L,et al.Strategies to reduce PM2.5 and O3 together during late summer and early fall in San Joaquin Valley,California[J].Atmospheric Research,2021,258:105633. doi: 10.1016/j.atmosres.2021.105633 [26] YIN Z C,WANG H J,LIAO H,et al.Seasonal to interannual prediction of air pollution in China:review and insight[J].Atmospheric and Oceanic Science Letters,2022,15(1):100131. doi: 10.1016/j.aosl.2021.100131 [27] WANG Q,ZHU H H,XU H Y,et al.The spatiotemporal trends of PM2.5- and O3-related disease burden coincident with the reduction in air pollution in China between 2005 and 2017[J].Resources,Conservation and Recycling,2022,176:105918. doi: 10.1016/j.resconrec.2021.105918 [28] DUAN W J,WANG X Q,CHENG S Y,et al.Influencing factors of PM2.5 and O3 from 2016 to 2020 based on DLNM and WRF-CMAQ[J].Environmental Pollution,2021,285:117512. doi: 10.1016/j.envpol.2021.117512 [29] 徐丽娜,李兴华,冯震,等.呼和浩特市大气污染特征及气象影响因子研究[J].干旱区资源与环境,2019,33(6):150-157.XU L N,LI X H,FENG Z,et al.The study of characteristics of air pollution and meteorological factors in Hohhot[J].Journal of Arid Land Resources and Environment,2019,33(6):150-157. [30] 陈楠,陈立,王莉莉,等.2015—2020年湖北省PM2.5和臭氧复合污染特征演变分析[J].环境科学研究,2022,35(3):659-672.CHEN N,CHEN L,WANG L L,et al.Characteristic and trend analysis of PM2.5 and ozone in air compound pollution in Hubei Province during 2015-2020[J].Research of Environmental Sciences,2022,35(3):659-672. [31] ZENG J Y,ZHANG L Y,YAO C H,et al.Relationships between chemical elements of PM2.5 and O3 in Shanghai atmosphere based on the 1-year monitoring observation[J].Journal of Environmental Sciences,2020,95:49-57. doi: 10.1016/j.jes.2020.03.043 [32] 姜华,高健,李红,等.我国大气污染协同防控理论框架初探[J].环境科学研究,2022,35(3):601-610.JIANG H,GAO J,LI H,et al.Preliminary research on theoretical framework of cooperative control of air pollution in China[J].Research of Environmental Sciences,2022,35(3):601-610. [33] 王占山,张大伟,李云婷,等.北京市夏季不同O3和PM2.5污染状况研究[J].环境科学,2016,37(3):807-815.WANG Z S,ZHANG D W,LI Y T,et al.Different air pollution situations of O3 and PM2.5 during summer in Beijing[J].Environmental Science,2016,37(3):807-815. [34] ZHOU G Q,XU J M,XIE Y,et al.Numerical air quality forecasting over eastern China:an operational application of WRF-Chem[J].Atmospheric Environment,2017,153:94-108. doi: 10.1016/j.atmosenv.2017.01.020 [35] MA S M,SHAO M,ZHANG Y F,et al.Sensitivity of PM2.5 and O3 pollution episodes to meteorological factors over the North China Plain[J].Science of the Total Environment,2021,792:148474. doi: 10.1016/j.scitotenv.2021.148474 [36] 刘桓嘉,贾梦珂,刘永丽,等.河南省2015—2019年大气污染时空变化特征研究[J].环境科学学报,2022,42(2):271-282.LIU H J,JIA M K,LIU Y L,et al.Spatial and temporal variation analysis of air pollution in Henan Province during 2015-2019[J].Acta Scientiae Circumstantiae,2022,42(2):271-282. [37] ZHANG W J,WANG H,ZHANG X Y,et al.Evaluating the contributions of changed meteorological conditions and emission to substantial reductions of PM2.5 concentration from winter 2016 to 2017 in Central and eastern China[J].Science of the Total Environment,2020,716:136892. doi: 10.1016/j.scitotenv.2020.136892 [38] LIU H J,TIAN H Z,ZHANG K,et al.Seasonal variation,formation mechanisms and potential sources of PM2.5 in two typical cities in the Central Plains Urban Agglomeration,China[J].Science of the Total Environment,2019,657:657-670. doi: 10.1016/j.scitotenv.2018.12.068 [39] ZHANG H,YIN S S,BAI L,et al.Establishment and evaluation of anthropogenic black and organic carbon emissions over Central Plain,China[J].Atmospheric Environment,2020,226:117406. doi: 10.1016/j.atmosenv.2020.117406 [40] 臧振峰,张凤英,李永华,等.我国主要粮产区PM2.5、PM10时空分布特征及影响因素:以河南省为例[J].自然资源学报,2021,36(5):1163-1175. doi: 10.31497/zrzyxb.20210506ZANG Z F,ZHANG F Y,LI Y H,et al.Spatio-temporal distribution and affecting factors of PM2.5 and PM10 in major grain producing areas in China:a case study of Henan Province[J].Journal of Natural Resources,2021,36(5):1163-1175. doi: 10.31497/zrzyxb.20210506 [41] 刘光瑾,苏方成,徐起翔,等.河南省18个城市大气污染物分布特征、区域来源和传输路径[J].环境科学,2022,43(8):3953-3965.LIU G J,SU F C,XU Q X,et al.One-year simulation of air pollution in central China,characteristics,distribution,inner region cross-transmission,and pathway research in 18 cities[J].Environmental Science,2022,43(8):3953-3965. [42] WU J S,WANG Y,LIANG J T,et al.Exploring common factors influencing PM2.5 and O3 concentrations in the Pearl River Delta:tradeoffs and synergies[J].Environmental Pollution,2021,285:117138. doi: 10.1016/j.envpol.2021.117138 [43] QIN M M,HU A Q,MAO J J,et al.PM2.5 and O3 relationships affected by the atmospheric oxidizing capacity in the Yangtze River Delta,China[J].Science of the Total Environment,2022,810:152268. doi: 10.1016/j.scitotenv.2021.152268 [44] LI X R,WANG Y S,GUO X Q,et al.Seasonal variation and source apportionment of organic and inorganic compounds in PM2.5 and PM10 particulates in Beijing,China[J].Journal of Environmental Sciences,2013,25(4):741-750. doi: 10.1016/S1001-0742(12)60121-1 [45] 陈义珍,赵丹,柴发合,等.广州市与北京市大气能见度与颗粒物质量浓度的关系[J].中国环境科学,2010,30(7):967-971.CHEN Y Z,ZHAO D,CHAI F H,et al.Correlation between the atmospheric visibility and aerosol fine particle concentrations in Guangzhou and Beijing[J].China Environmental Science,2010,30(7):967-971. [46] 徐锟,刘志红,何沐全,等.成都市夏季近地面臭氧污染气象特征[J].中国环境监测,2018,34(5):36-45.XU K,LIU Z H,HE M Q,et al.Meteorological characteristics of O3 pollution near the ground in summer of Chengdu[J].Environmental Monitoring in China,2018,34(5):36-45. -
