基于SEAR技术的地下含水层石油烃污染修复试验研究

杨思月; 孙亚乔; 毛明; 王杰; 朱欢; 刘宏伟; 杨胜科

doi:10.13198/j.issn.1001-6929.2022.12.13

基于SEAR技术的地下含水层石油烃污染修复试验研究

doi: 10.13198/j.issn.1001-6929.2022.12.13

杨思月^1,,
孙亚乔^1, ,,
毛明¹,
王杰²,
朱欢²,
刘宏伟²,
杨胜科¹

1.
长安大学水利与环境学院，旱区地下水文与生态效应教育部重点实验室，陕西西安　710054
2.
中圣环境科技发展有限公司，陕西西安　710054

基金项目: 陕西省重点研发计划项目(No.2021ZDSL05-05, 2022ZDSL06-06)

详细信息

作者简介:
杨思月（1998-），女，广东深圳人，ysy19981005@163.com

通讯作者:
孙亚乔(1977-)，女，浙江上虞人，副教授，博士，硕导，主要从事水文地球化学和生态环境保护研究，sunyaqiao@126.com

中图分类号: X53
计量
- 文章访问数: 62
- HTML全文浏览量: 3
- PDF下载量: 14
- 被引次数: 0
出版历程
- 收稿日期: 2022-10-12
- 修回日期: 2022-12-21

Experimental Study on Remediation of Petroleum Hydrocarbon Pollution in Subsurface Aquifers Based on SEAR Technology

1.
Key Laboratory of Subsurface Hydrology and Ecological Effects in Arid Region, Ministry of Education, School of Water and Environment, Chang'an University, Xi'an 710054, China
2.
Zhongsheng Environmental Technology Development Co., Ltd., Xi'an 710054, China

Funds: Key Research and Development Program of Shaanxi, China (No.2021ZDSL05-05, 2022ZDSL06-06)

摘要

摘要: 表面活性剂强化含水层修复技术(SEAR)已广泛应用于地下含水层有机污染修复. 本研究选取环境修复过程中常使用的8种表面活性剂：聚氧乙烯月桂醚(Brij 30)、脂肪醇聚氧乙烯醚(AEO-9)、吐温80(Tween 80)、鼠李糖脂、曲拉通X-100(TritonX-100)、烷基糖苷(APG)、脂肪醇聚氧乙烯醚硫酸钠(AES)、十二烷基磺酸钠(SDS)，利用静、动态试验优选出高效环保的表面活性剂，探索表面活性剂浓度、离子强度对汽油增溶效果的影响，同时确定最佳表面活性剂复配体系，并开展室内模拟试验及性能评价验证其修复效果. 结果表明：①8种表面活性剂中鼠李糖脂对汽油的增溶能力表现最优；AEO-9、Tween 80和Brij 30更易吸附在中砂介质；Tween 80与TritonX-100对油污砂洗脱效果最好. 综合优选结果确定TritonX-100为最优效的单一表面活性剂. ②随着表面活性剂浓度和离子强度的增加，溶液中汽油浓度分别呈现先增加后下降和持续下降的趋势. ③通过将优选表面活性剂TritonX-100与洗脱效果最好的Tween 80进行混合确定最优复配比为1∶1，该复配体系下汽油去除率可达99.28%. 动态洗脱试验下该混合体系下汽油去除效率最高为64.55%，比同浓度TritonX-100条件下高22.26%. ④室内模拟试验中TritonX-100与Tween 80两种非离子型表面活性剂以体积比为1∶1进行复配可进一步提升增溶洗脱效果，石油烃总去除率达到83.7%. 研究显示，TritonX-100是一种高效的石油烃修复剂，TritonX-100与Tween 80复配后可进一步提升其修复效果，以上结果可为SEAR技术在实际场地应用提供理论参考与技术支持.
- 石油烃 /
- 地下含水层 /
- 表面活性剂 /
- 复配体系 /
- 室内模拟
Abstract: Surfactant-enhanced aquifer remediation (SEAR) has been widely used in the remediation of organic contamination in underground aquifer. The present study aimed to use efficient surfactants to explore the effects of surfactant concentration and ionic strength on the solubilization effect of gasoline, optimize efficient and environmentally friendly surfactants, determine the best surfactant compound system, and verify their remediation effects. The results show that among the eight surfactants, rhamnolipids showed the best solubilization ability for gasoline; AEO-9, Tween 80 and Brij 30 were more easily adsorbed in medium sand media. Tween 80 and TritonX-100 had the best elution effect on oily sand. The combined results of the preferences identified TritonX-100 as the most effective single surfactant. With the increase of surfactant concentration and ionic strength, the gasoline concentration in solution showed a trend of first increase, decrease and continuous decrease, respectively. The optimum compounding ratio was determined to be 1∶1 by mixing the preferred surfactant TritonX-100 with Tween 80, and the gasoline removal rate was 99.28% in this compounding system. The highest gasoline removal efficiency was 64.55% in the dynamic elution test, which was 22.26% higher than that of the same concentration of TritonX-100. The total removal rate of petroleum hydrocarbons reached 83.7% when two nonionic surfactants, TritonX-100 and Tween 80, were compounded at a volume ratio of 1∶1 in simulation test, which further enhanced the solubilization elution effect. The results show that TritonX-100 is an efficient petroleum hydrocarbon remediation agent, and the combination of two nonionic surfactants can further enhance the solubilization and elution effects. The study results can provide theoretical reference and technical support for the application of SEAR technology in polluted sites.
- petroleum hydrocarbons /
- subsurface aquifers /
- surfactants /
- compounding system /
- indoor simulation

HTML全文

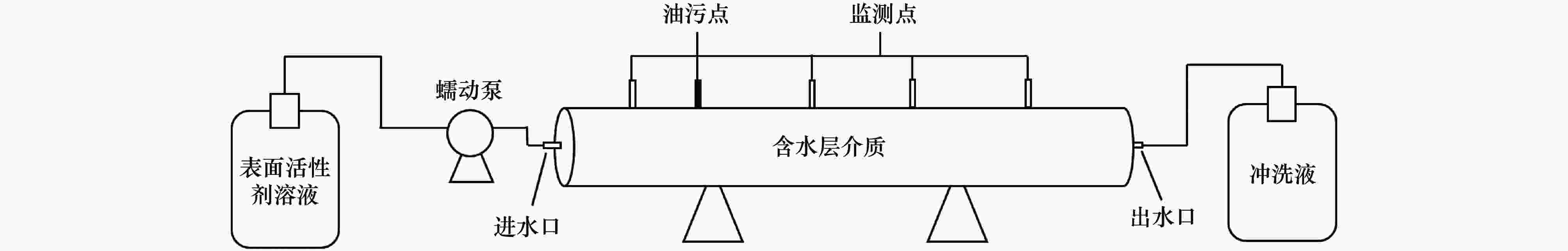

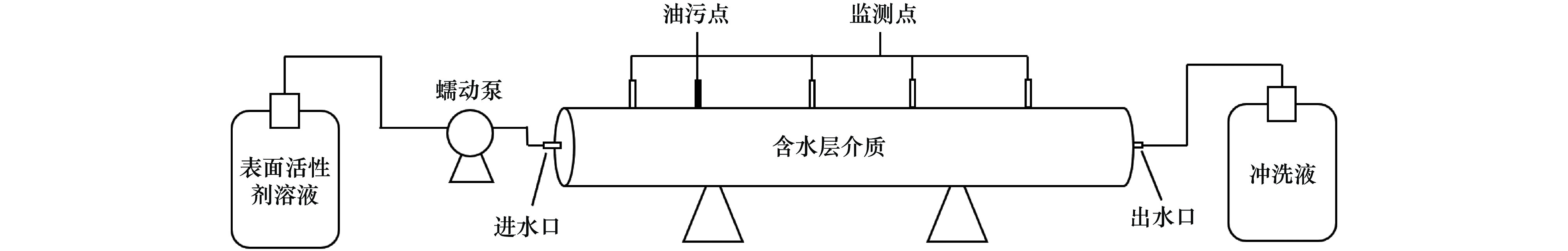

图 1 模拟试验装置示意

Figure 1. Simulation test device

下载: 全尺寸图片幻灯片

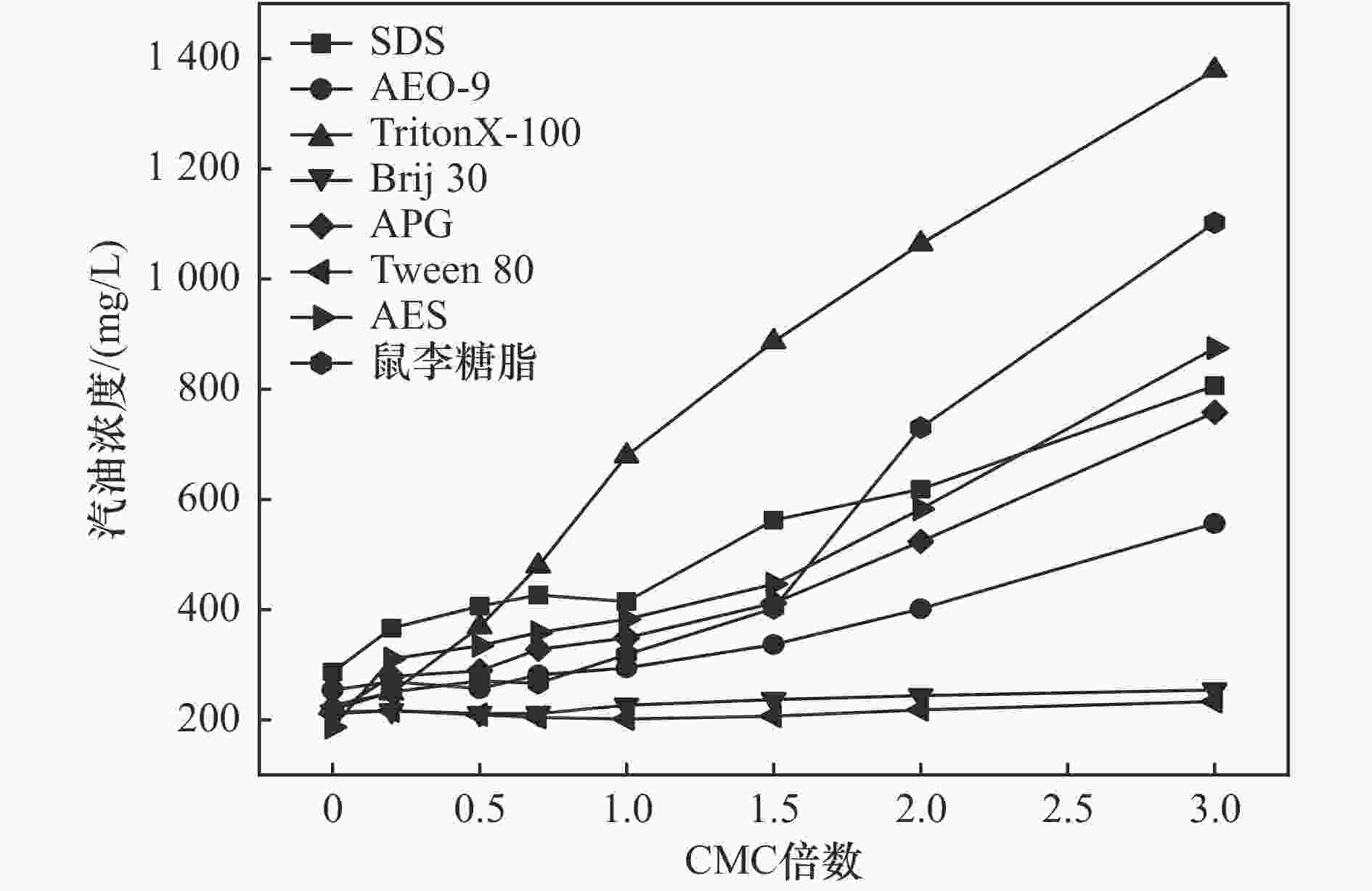

图 2 8种表面活性剂对汽油增溶的情况

Figure 2. Solubilization of eight surfactants

下载: 全尺寸图片幻灯片

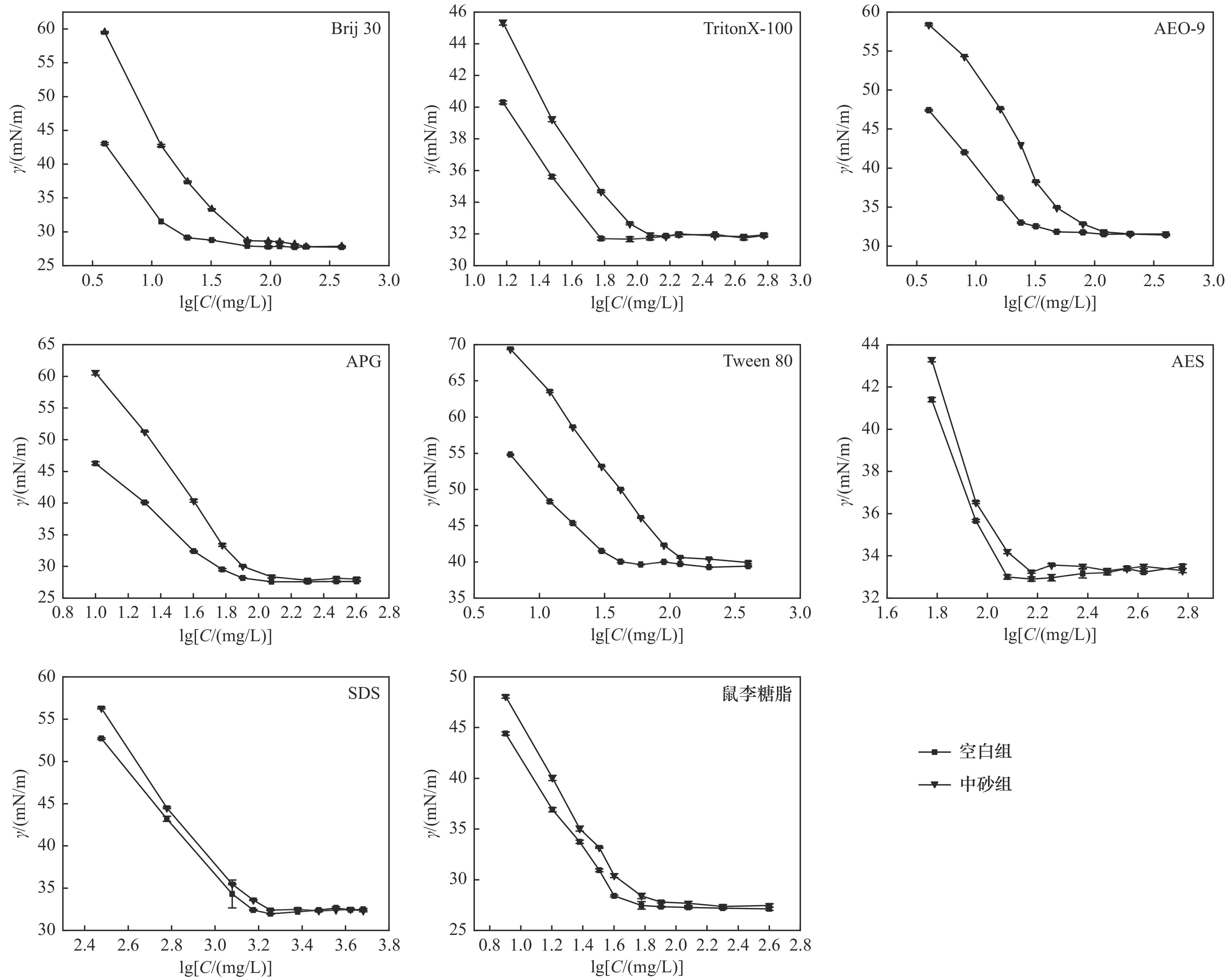

图 3 中砂介质对8种表面活性剂表面张力的影响

Figure 3. Effect of medium sand media on the surface tension from surfactants

下载: 全尺寸图片幻灯片

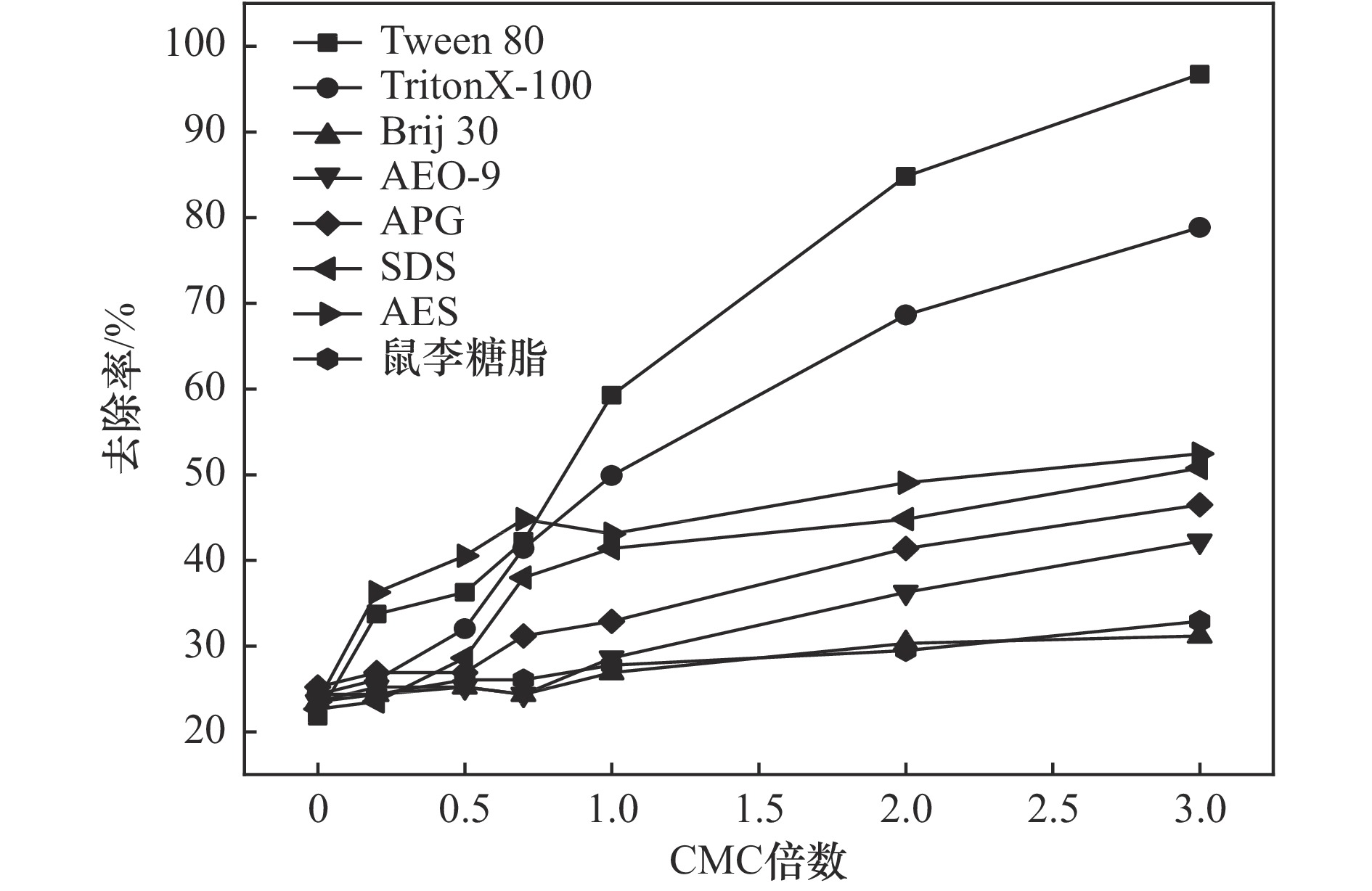

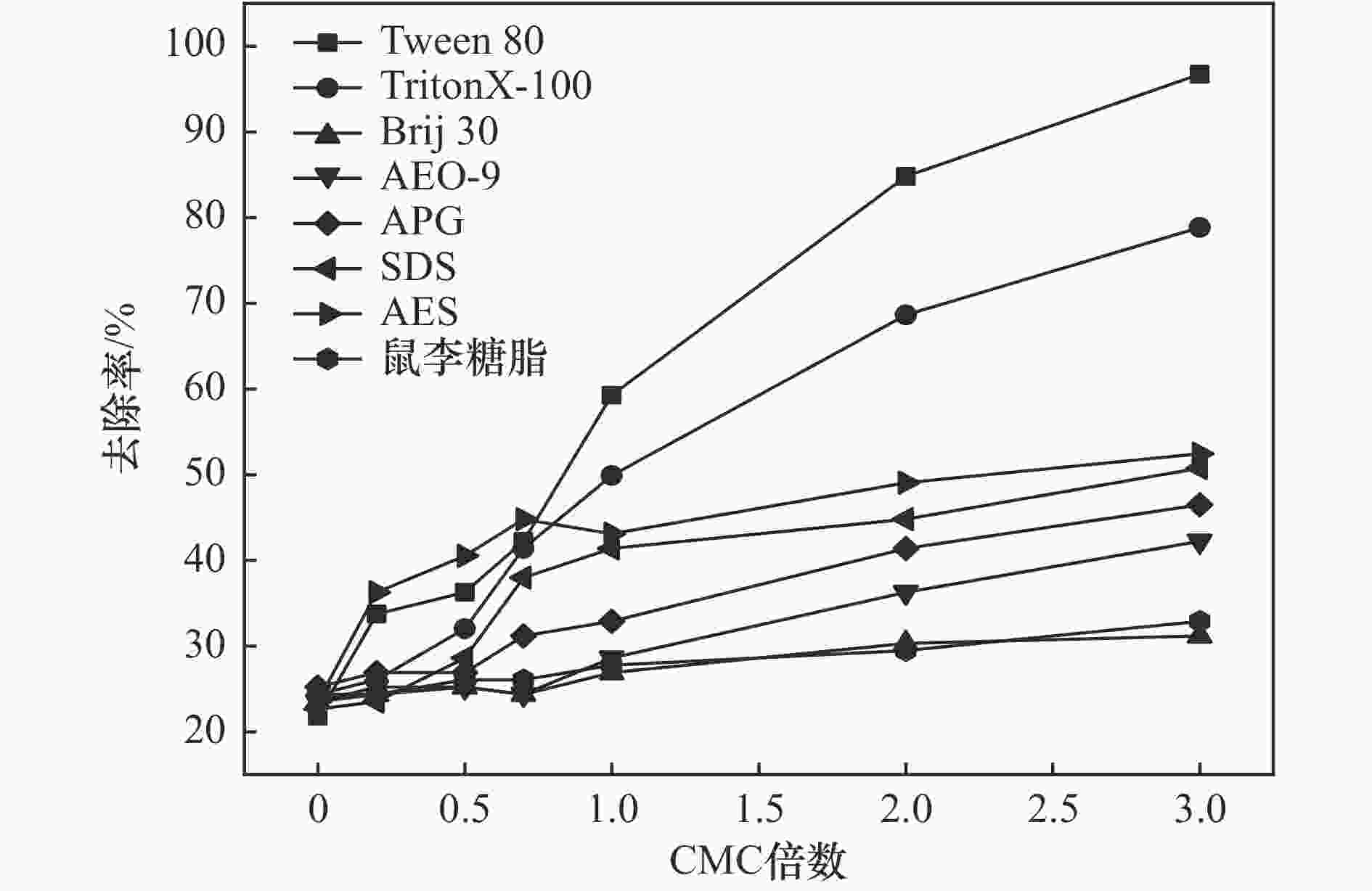

图 4 8种表面活性剂对汽油的洗脱效果

Figure 4. Elution effect of eight surfactants on gasoline

下载: 全尺寸图片幻灯片

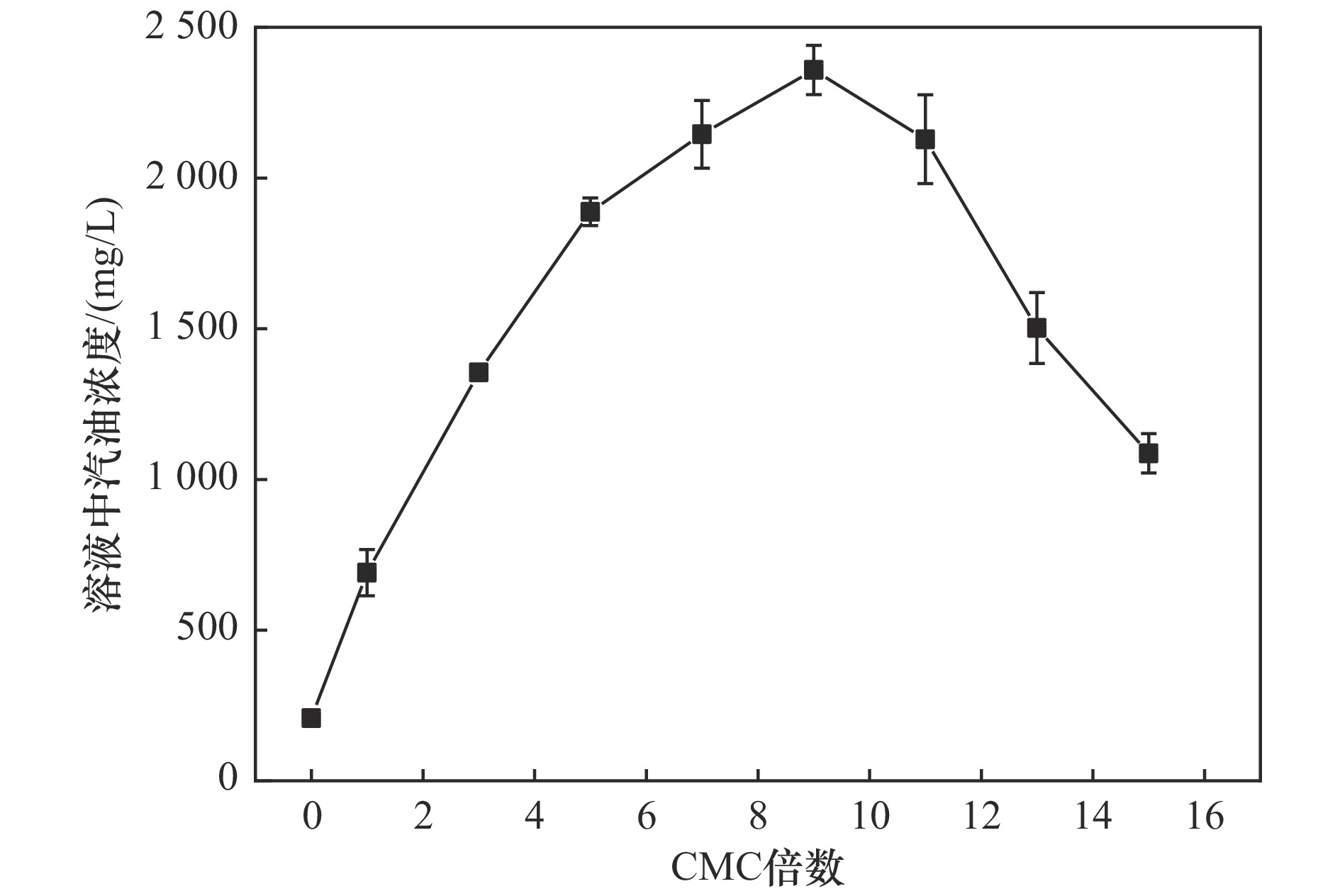

图 5 不同浓度对 TritonX-100 增溶汽油的影响

Figure 5. Effect of concentrations on TritonX-100 solubilized gasoline

下载: 全尺寸图片幻灯片

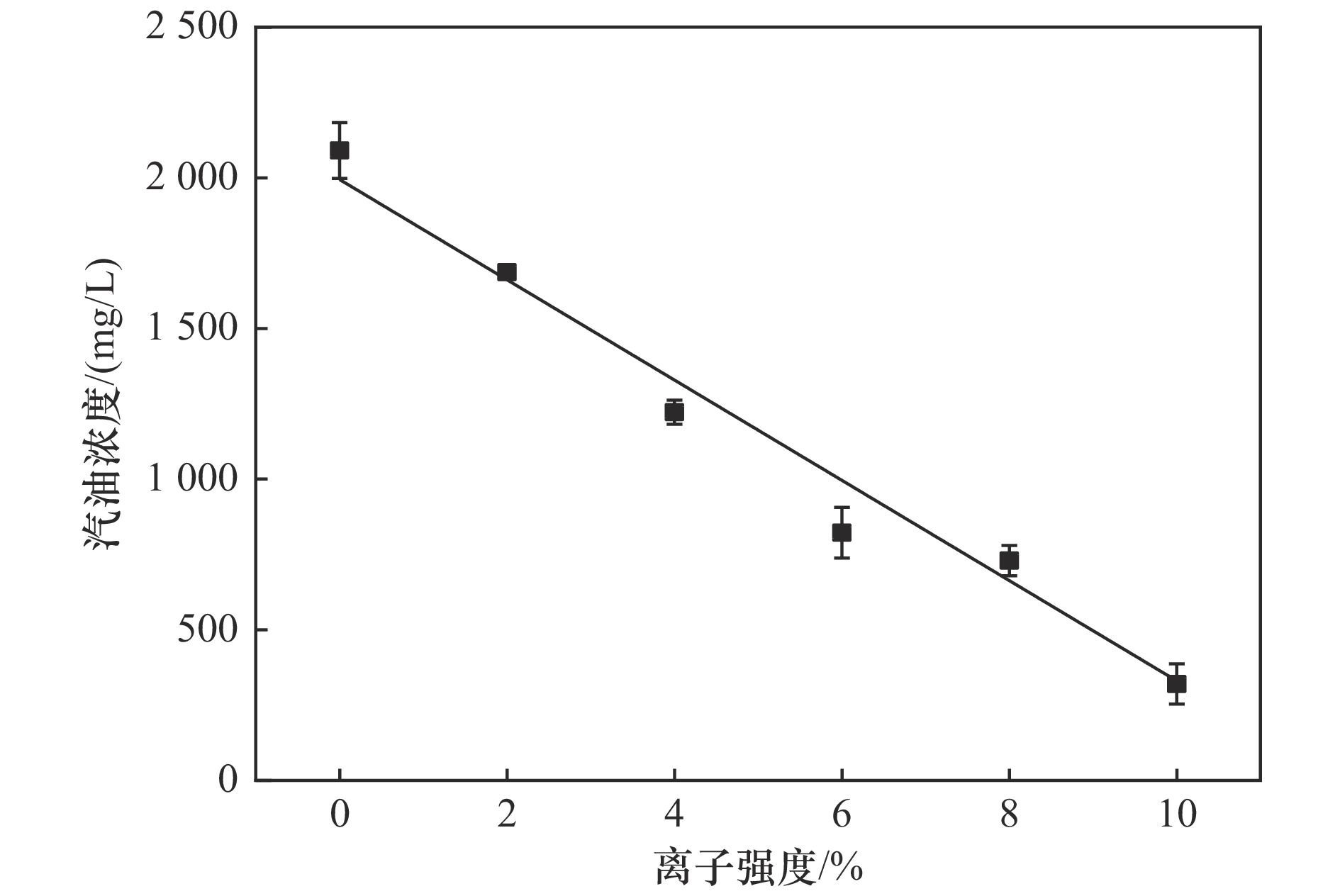

图 6 不同离子强度对TritonX-100增溶汽油的影响

Figure 6. Effect of ionic strengths on TritonX-100 solubilized gasoline

下载: 全尺寸图片幻灯片

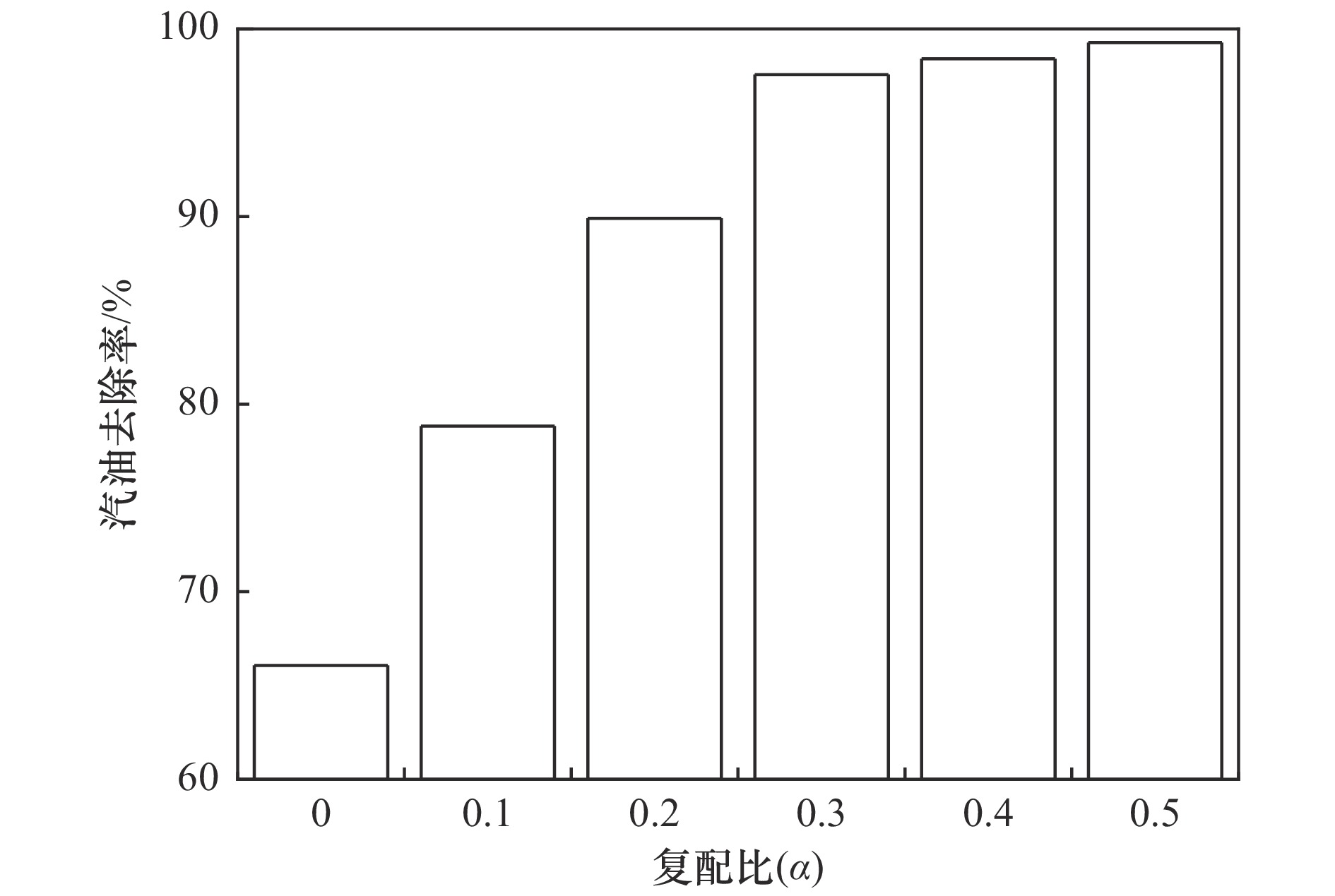

图 7 TritonX-100与Tween 80在不同复配比下汽油的去除率

Figure 7. Removal rate of gasoline by compounding TritonX-100 and Tween 80

下载: 全尺寸图片幻灯片

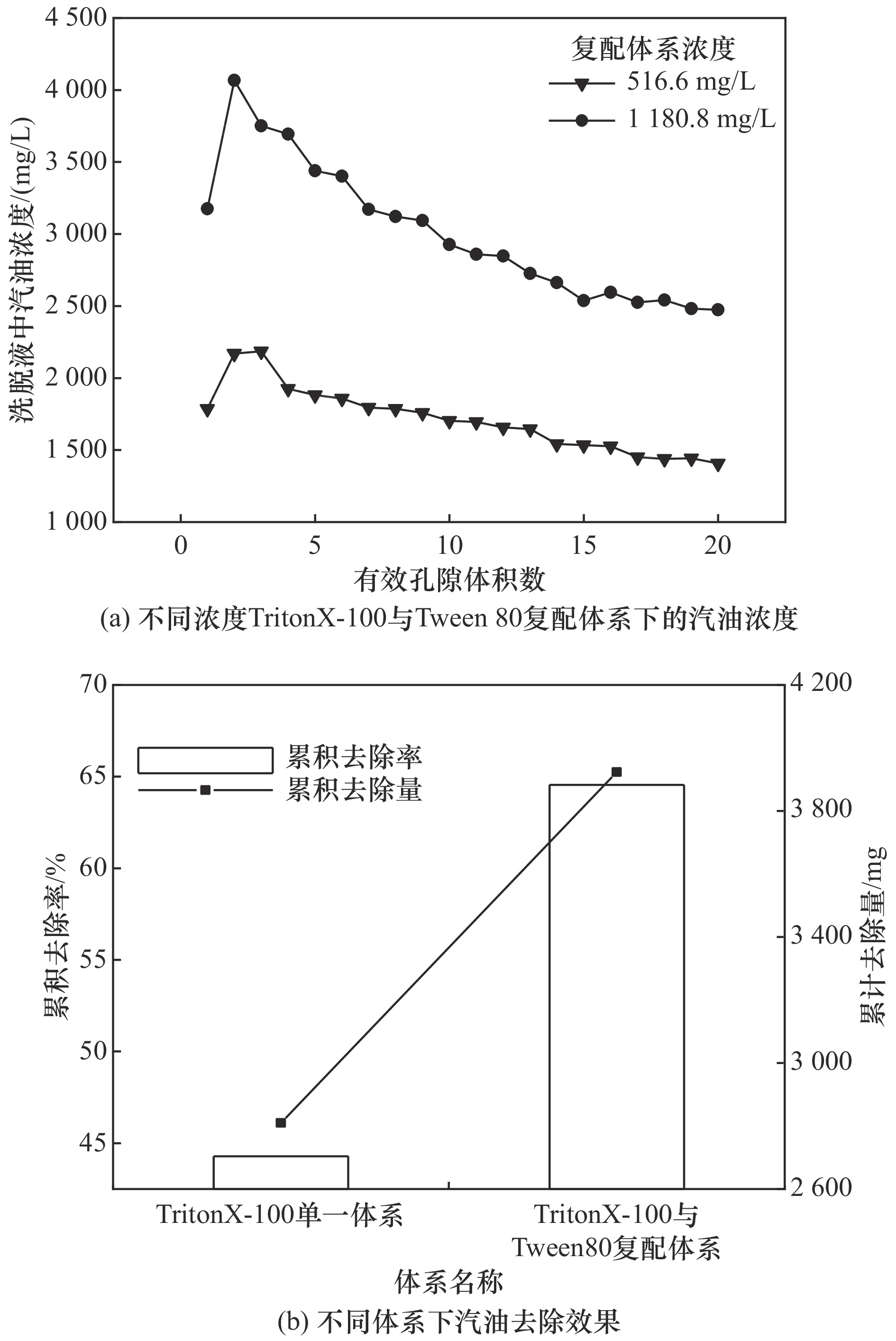

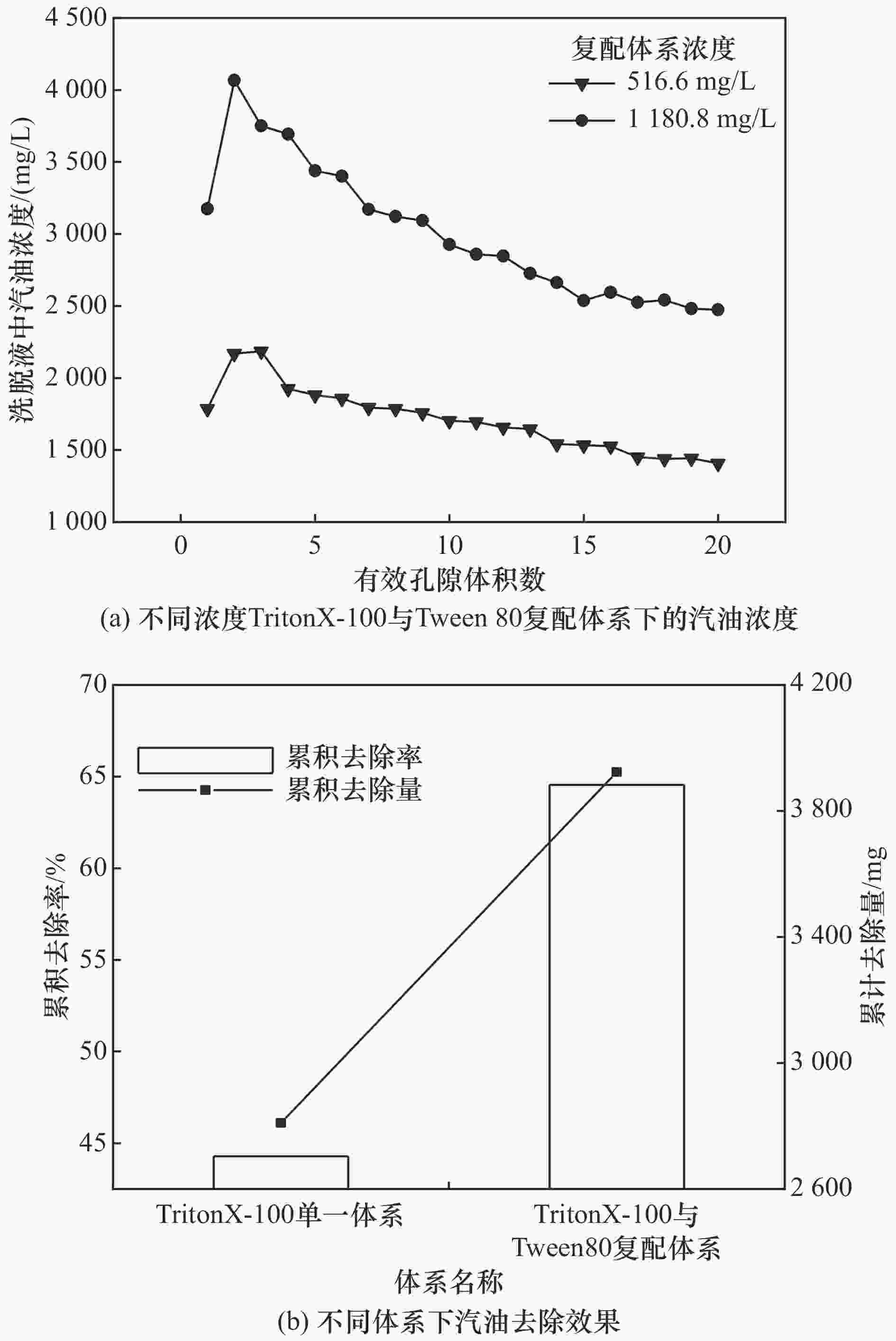

图 8 TritonX-100与Tween 80复配体系对油污砂修复效果

Figure 8. Effect of compounding TritonX-100 and Tween 80 on oiled sand remediation

下载: 全尺寸图片幻灯片

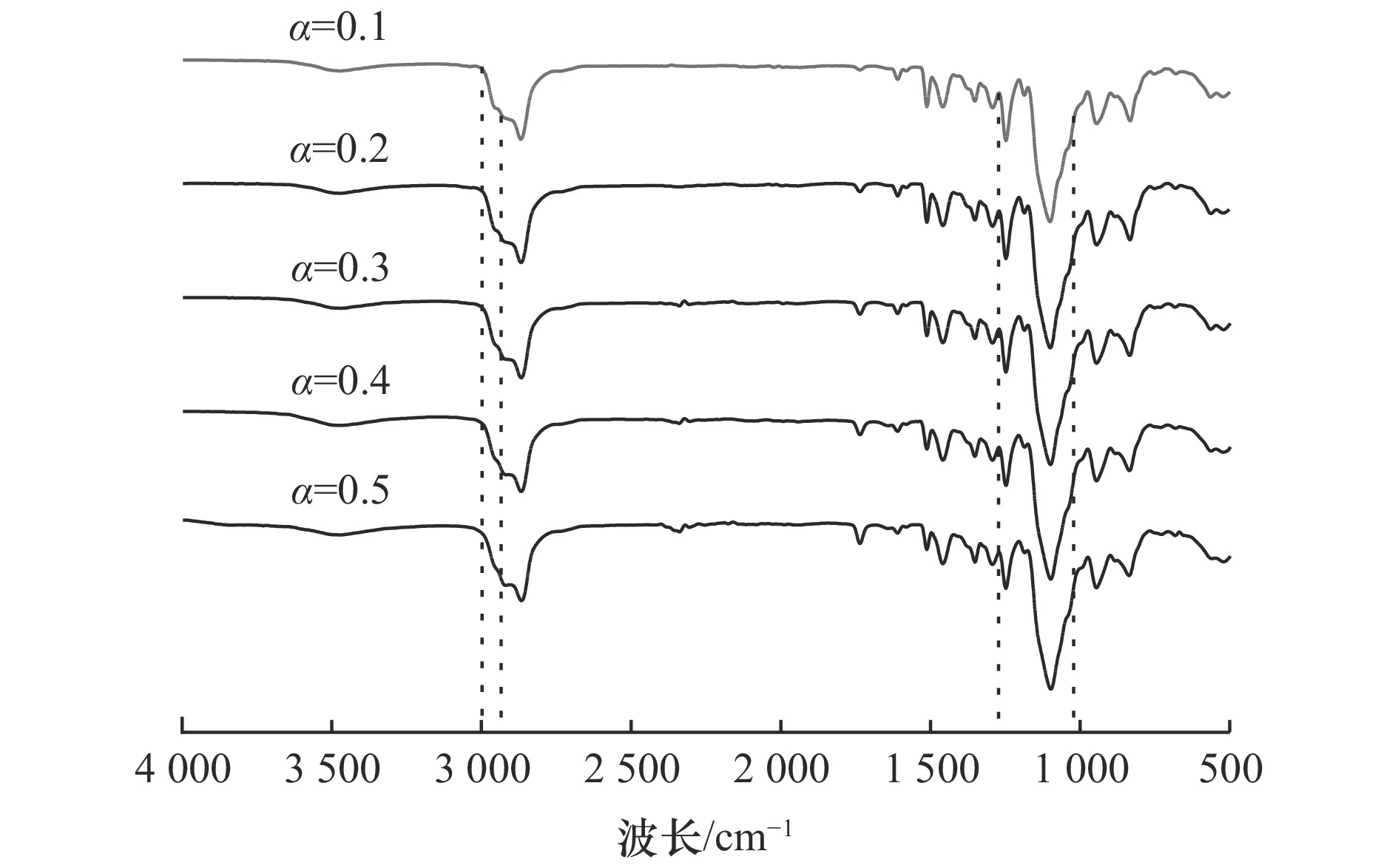

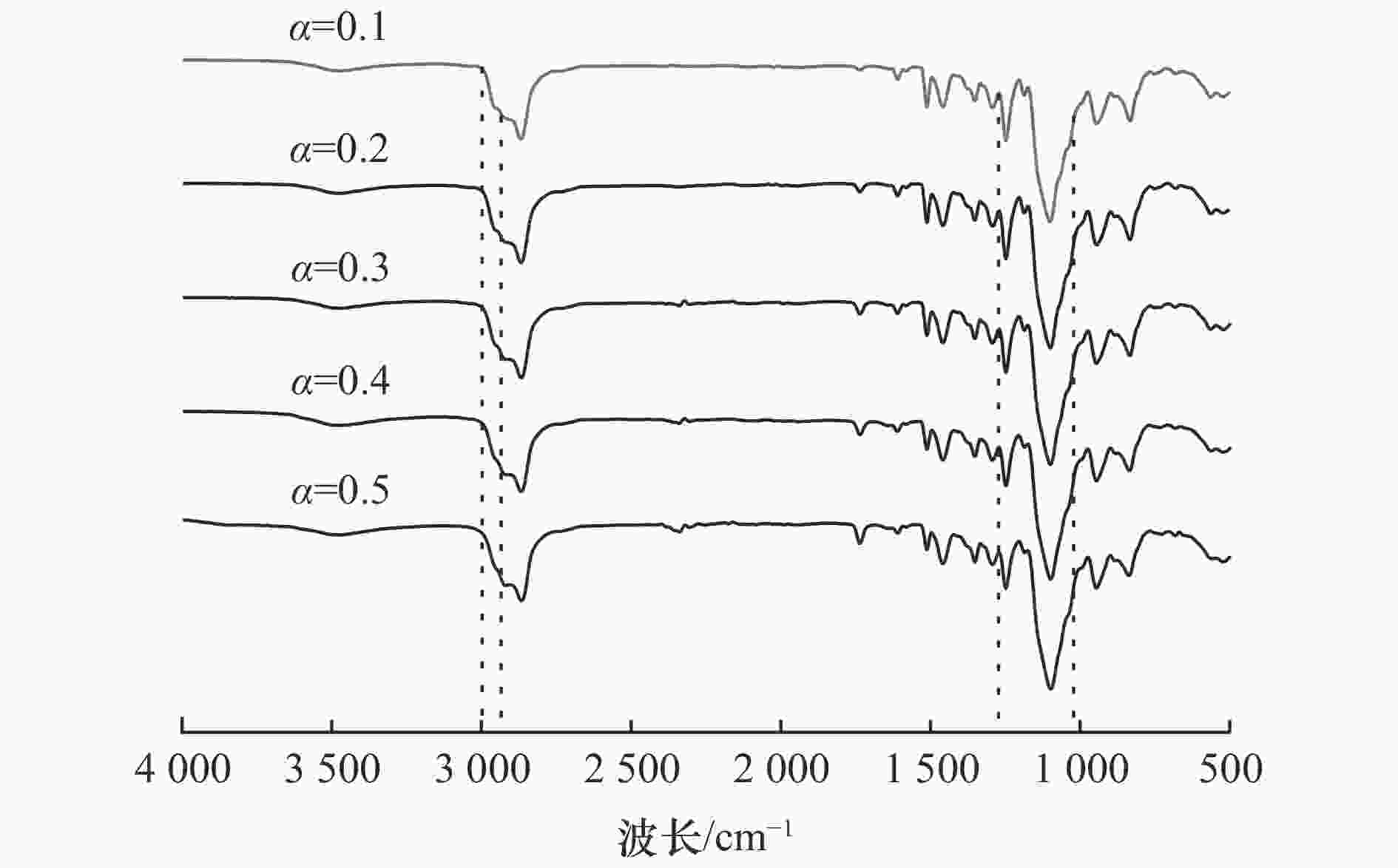

图 9 不同复配比下Tween 80与TritonX-100复配体系的红外光谱

Figure 9. IR of Tween 80 and TritonX-100 compounding systems at different compounding ratios

下载: 全尺寸图片幻灯片

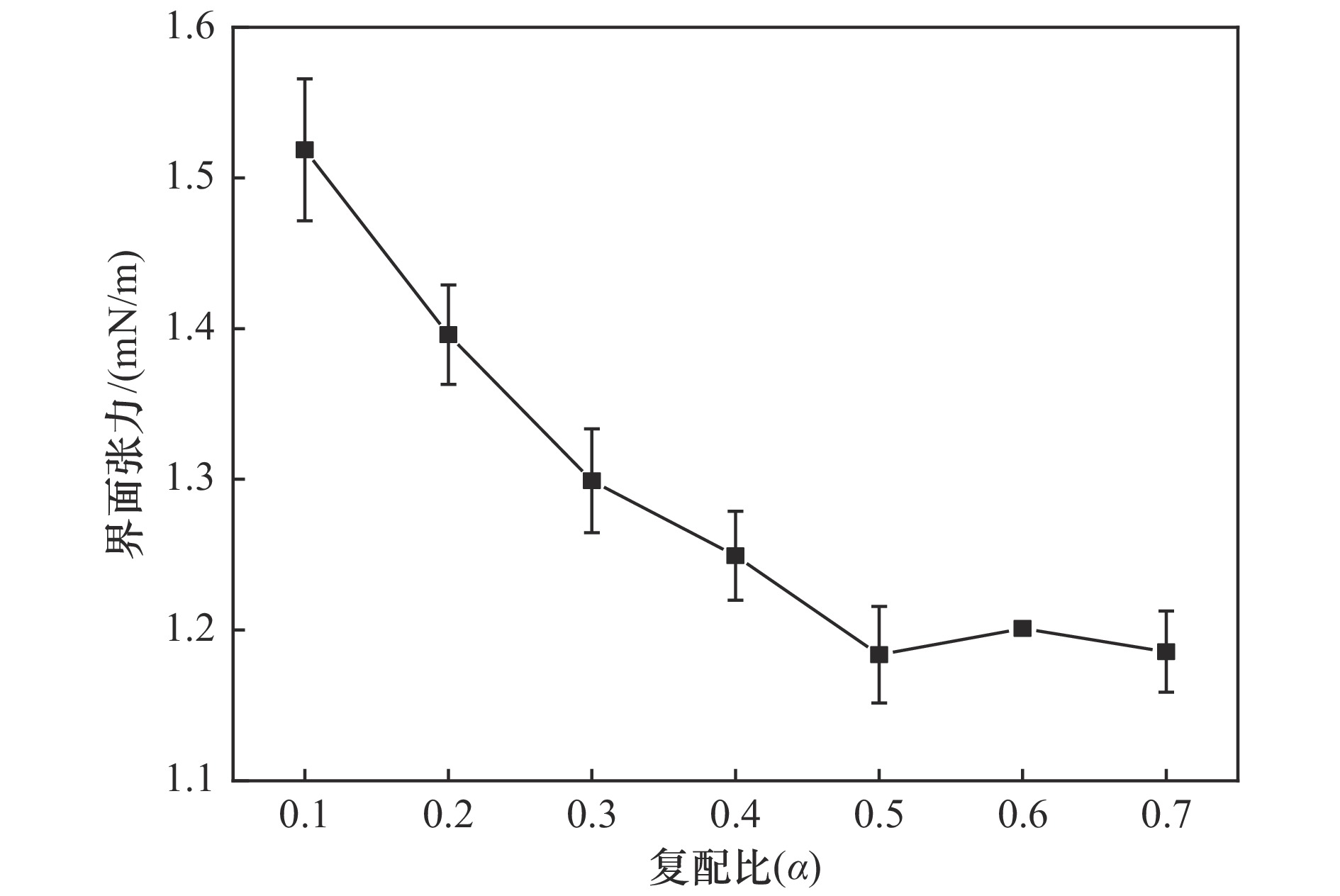

图 10 不同复配比下汽油与水界面张力的变化情况

Figure 10. Variation of interfacial tension between gasoline and water at different compounding ratios

下载: 全尺寸图片幻灯片

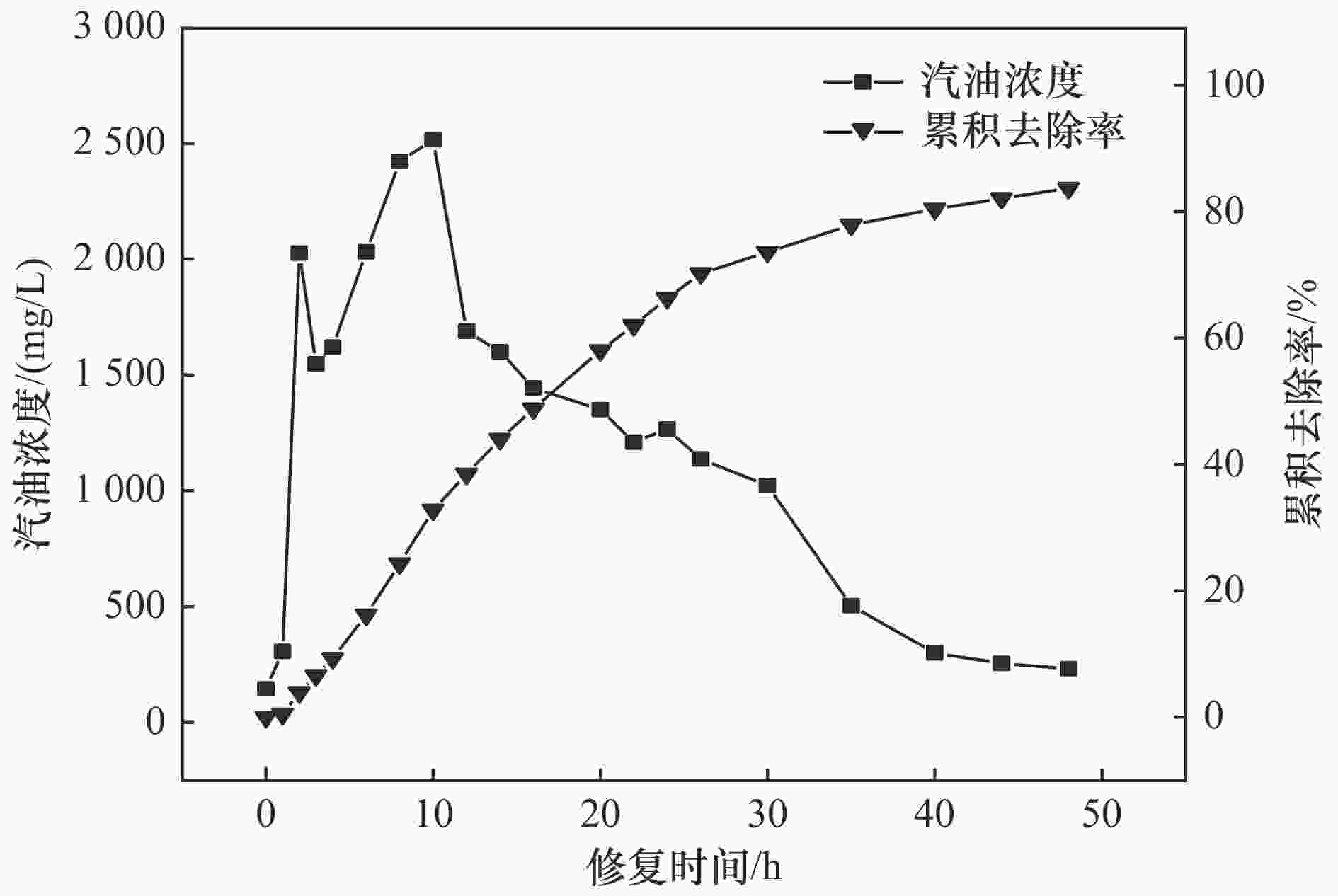

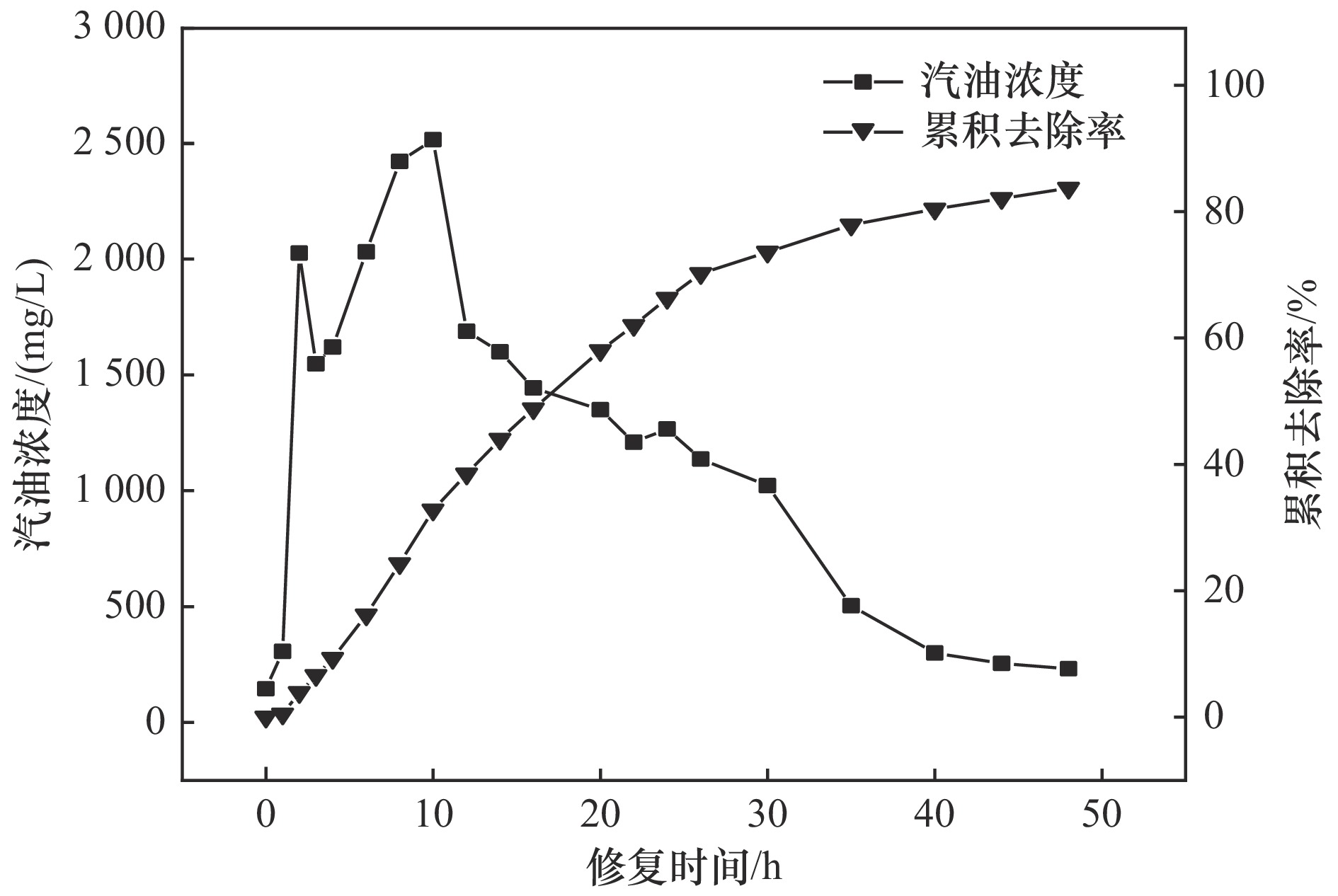

图 11 不同修复时间下出水口中汽油浓度及累积去除率

Figure 11. Gasoline concentration and cumulative removal rate at different remediation times

下载: 全尺寸图片幻灯片

表 1 8种初选表面活性剂的CMC

Table 1. CMC of eight primary surfactants

表面活性剂	CMC/(mg/L)
TritonX-100	73.8
SDS	1547.2
AES	145.3
APG	90.9
AEO-9	26.6
Brij 30	18.1
Tween 80	37.2
鼠李糖脂	43.0

下载: 导出CSV

表 2 8种表面活性剂的WSR与R²值

Table 2. Calculated values of WSR and R² for eight surfactants

表面活性剂	CMC/(mg/L)	S_CMC/(mg/L)	WSR	R²
TritonX-100	73.8	579	5.22	0.98
鼠李糖脂	43.0	318.4	9.59	0.97
SDS	1547.2	414.4	0.12	0.98
AES	145.3	382.4	1.74	0.98
APG	90.9	348.6	2.31	0.99
AEO-9	26.6	294	5.03	0.99
Brij 30	18.1	226.5	0.74	0.97
Tween 80	37.2	201.5	0.44	0.99

下载: 导出CSV

表 3 8种表面活性剂在中砂介质上的吸附率

Table 3. Adsorption rates of the eight surfactants on medium sand media

表面活性剂	吸附率/%
Brij 30	46.5
TritonX-100	19.2
AEO-9	52.0
APG	4.2
Tween 80	51.2
AES	11.2
SDS	5.0
鼠李糖脂	19.9

下载: 导出CSV

表 4 表面活性剂定量分级评分标准

Table 4. Quantitative grading criteria for surfactant

增溶能力(0.4)		吸附性能(0.2)		洗脱效果(0.4)
WSR	评分	A	评分	去除率	评分
0~1	1	>40%	1	<25%	1
1~2	2	30%~40%	2	25%~40%	2
2~4	3	20%~30%	3	40%-60%	3
4~6	4	10%~20%	4	60%-80%	4
>6	5	<10%	5	>80%	5
注：括号中数据为权重.

下载: 导出CSV

表 5 表面活性剂综合评分结果

Table 5. Surfactant composite score results

表面活性剂	指标			综合评分
表面活性剂	增溶能力	吸附性能	洗脱能力	综合评分
TritonX-100	1.6	0.8	1.6	4.0
鼠李糖脂	2.0	0.8	0.8	3.6
SDS	0.4	1.0	1.2	2.6
AES	0.8	0.8	1.2	2.8
APG	1.2	1.0	1.0	3.4
AEO-9	1.6	0.2	1.2	3.0
Brij 30	0.4	0.2	0.8	1.4
Tween 80	0.4	0.2	2.0	2.6

下载: 导出CSV

表 6 不同复配比下汽油与水的接触角

Table 6. Contact angle between gasoline and water at different compounding ratios

复配比	滴加水后的接触角/(°)	滴加汽油后的接触角/(°)
空白组	41.5	10.5
α=0.1	36.0	9.5
α=0.2	34.5	8.5
α=0.3	32.5	7.0
α=0.4	25.5	5.0
α=0.5	22.5	2.5

下载: 导出CSV
